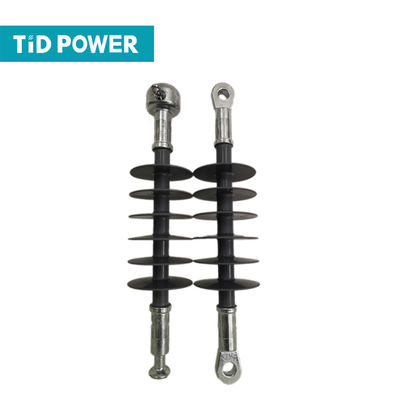

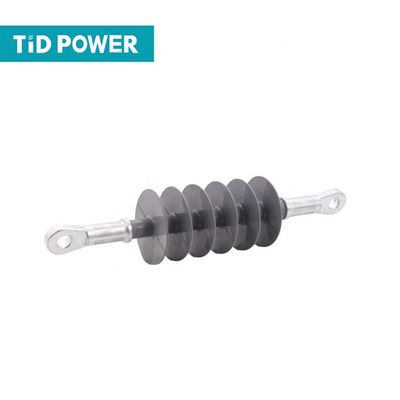

Polymer Overhead Line Insulator For Dead End/Suspension Insulator 69kV -400kV
| Place of Origin | CN;SHAAN XI |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001:2008 |
| Model Number | FXBW |
| Minimum Order Quantity | 100 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | 1. Economic Packing desgin which will save your transportation cost. 2. Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Type | Polymer Insulator | Application | HV Transmission Lines |
|---|---|---|---|
| Product Name | Composite Suspension Insulator | Strength | High Strength |
| Material Of Core Rod | Fiberglass | Color | Gray,red,customized |
| High Light | Polymer Overhead Line Insulator,Isolator Polymer fiberglass,Area Of Different Pollution Level Isolator Polymer |
||
Product Description
Polymer Overhead Line Insulator For Dead End/Suspension Insulator 69kV -400kV
Product:
1.Product Description of Polymer Overhead Line Insulator For Dead End/Suspension Insulator 69kV -400kV
Overhead Line Polymer Insulator is made of high-quality silicone rubber, which is durable and reliable. It has a high withstand voltage, and can provide good electrical insulation. It is also resistant to ultraviolet rays, so it won't fade or degrade overtime. The composite insulators are cmposited of FRP rod,silicone rubber shed and metal fitting.We use the complete injection technology to solve the problem of interface electric puncture which highly affect the reliability of composite insulator.
2.Produc performance of Polymer Overhead Line Insulator For Dead End/Suspension Insulator 69kV -400kV
1. High mechanical strength.
2. Good performance of hydrophobicity and anti-pollution
3. Excellent electrical specification
4. Small volume and light weight
3. Product Details of Polymer Overhead Line Insulator For Dead End/Suspension Insulator 69kV -400kV
Note:
1. Applied standard:IEC61109.
2. Please select the fitting type when you order,The insulator info in the table belowbased on the type with ball & socket fittings.The section length maybe a little changed when change the fitting type, the insulator exactly drawing and detail info you need,please contact with our sales.
3. We suggest that you chose the arcing ring when the insulator above 132kV.
| Type | Rated Voltage (KV) |
SML (KN) |
Section Length H(mm) |
Min Arcing Distance h(mm) |
Min Nominal Creepage Distance L(mm) |
Lightning Impulse Withstand Voltage (KV) | Power Frequency with stand voltage (KV) |
| FXBW-69/70 | 69 | 70 | 680±10 | 495 | 1440 | 390 | 185 |
| FXBW-69/120 | 69 | 120 | 860±15 | 650 | 2100 | 415 | 235 |
| FXBW-132/70 | 132 | 70 | 1360±30 | 1150 | 3600 | 740 | 320 |
| FXBW-132/120 | 132 | 120 | 1400±30 | 1150 | 3600 | 740 | 320 |
| FXBW-132/160 | 132 | 160 | 1430±30 | 1150 | 4800 | 740 | 440 |
| FXBW-132/210 | 132 | 210 | 1470±30 | 1150 | 4800 | 740 | 440 |
| FXBW-132/240 | 132 | 240 | 1470±30 | 1150 | 4800 | 740 | 440 |
| FXBW-220/70 | 220 | 70 | 2280±30 | 2050 | 6820 | 1050 | 460 |
| FXBW-220/120 | 220 | 120 | 2310±30 | 2050 | 6820 | 1050 | 460 |
| FXBW-220/160 | 220 | 160 | 2350±30 | 2050 | 9600 | 1050 | 460 |
| FXBW-220/210 | 220 | 210 | 2390±30 | 2050 | 9600 | 1050 | 460 |
| FXBW-220/240 | 220 | 240 | 2390±30 | 2050 | 9600 | 1050 | 460 |
| FXBW-400/120 | 400 | 120 | 3680±30 | 3420 | 12300 | 1480 | 625 |
| FXBW-400/160 | 400 | 160 | 3745±30 | 3420 | 13060 | 1480 | 625 |
| FXBW-400/210 | 400 | 210 | 3785±30 | 3420 | 13060 | 1480 | 625 |
| FXBW-400/240 | 400 | 240 | 3785±30 | 3420 | 13060 | 1480 | 625 |
| FXBW-500/120 | 500 | 120 | 4760±30 | 4500 | 16200 | 1900 | 900 |
| FXBW-500/160 | 500 | 160 | 4820±30 | 4500 | 15500 | 1900 | 900 |
| FXBW-500/210 | 500 | 210 | 4860±30 | 4500 | 15500 | 1900 | 900 |
| FXBW-500/240 | 500 | 240 | 4860±30 | 4500 | 15500 | 1900 | 900 |
FAQ:
1. Are you a manufacturer or a trader?
* We are the manufacturer, 15 years of production experience;
* The factory has passed ROSH, SGS certification;
* Standard :IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years working experience in export.
* Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to the above reference documents;
* Custom products: Please tell us
** Special material requirements; ** Fitting model and mark; * * voltage;
** Tensile or bending strength; ** creepage distance or pollution level;
** Structural height or electrical performance.
4. Production capacity?
* 216000 units per year.
