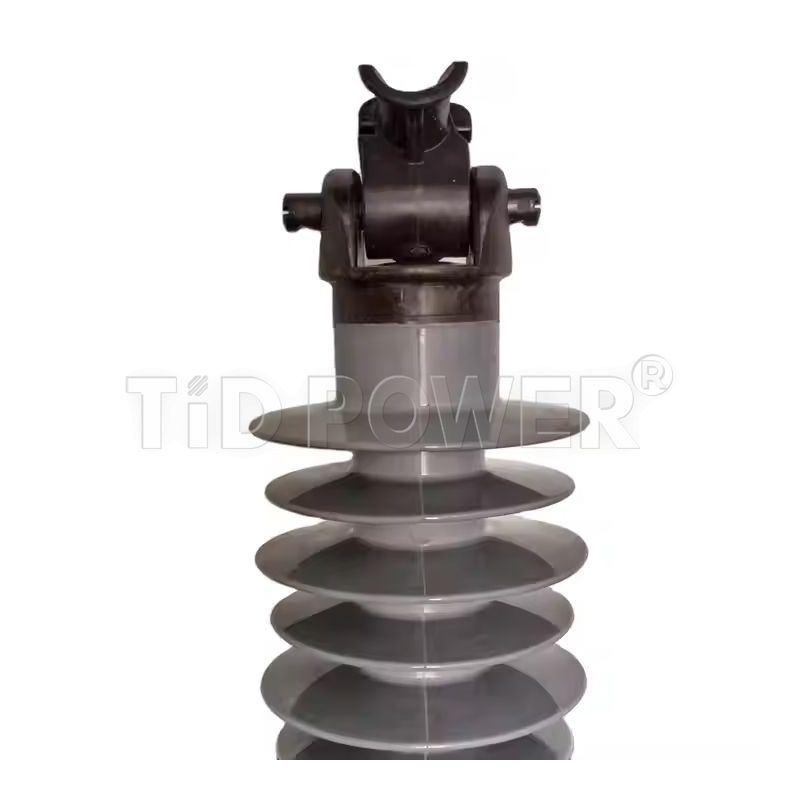

24kV/38kV High Voltage PA66 Polymer Composite Shed Post Suspension Insulators Double Seal End Design for Overhead Power Systems

Product Description

TID POWER Manufacturer Sample Customization High Quality Voltage Insulation Spindle Cable Insulation Materials & Elements

Product Name	PA66 Post Composite Insulator
Keyword	Line Post PA66 HTV Silicone Rubber Insulator
Advantage	Double Seal End Part Design, Good Hydrophobicity Performance
Specified Cantilever Load (SCL)	15kN
Ambient temperature range	T= -60℃ to +85 ℃
Silicone Color	Grey or Customized
Connector Thread on Bottom	M20 or M24
Average Layer of Zinc	≥ 85μm
Supply Type	Standard or Customized
Sample	Free Supply
Standard	IEC 62217, IEC 61952
Certificate	Test Report/ISO9001
OEM/ODM	Fully Support

Composite Insulators are composed of FRP rod, silicone rubber sheds and metal end fittings.

The silicone rubber sheds adopt the complete injection technology, effectively solving the critical issue of interface electrical breakdown that affects composite insulator reliability.

The connection between the FRP rod and the metal end fittings employs the most advanced crimping process, equipped with a fully automated ultrasonic flaw detection system.

Fiberglass Rod	Our company's products all use high-strength ECR fiberglass rod, which effectively avoids the occurrence of brittle fracture accidents.
Silicone Rubber	Our company adopts a unique formula of silicone rubber, in which the original rubber content can reach 40%, so our company's products have good weather resistance and anti-aging properties, excellent hydrophobicity and hydrophobic migration, and the hydrophobicity of the product can reach HC1 level.
Crimping Process	We use the patented ultrasonic sensing system and PC-controlled crimping equipment and technology to ensure the consistency and stability of the tensile strength of the product, solve the problem of insulator dropped accident caused by the fiberglass rod being crushed in the metal fittings .
Sealing Process	We adopt the HTV overall injection process, the product has less interface and high reliability.
Interface	We adopt a double seal design, and we insist on using the adhesive of the American LOAR company to ensure a good interface seal of the product.

PA6 Insulator without a Clamp
Type	Rated Voltage (kV)	Specified Mechanical Load (SML) (kN)	Leakage Distance L(mm)	Dry Arcing Distance (mm)	P.F. Withstand Voltage Min, Wet (≥kV)	Lightning Impulse Withstand Voltage (≥kV)
IPS 15-24-600	24	15	587	270	65	155
IPS 15-24-700	24	15	716	265	75	175
IPS 15-38-870	38	15	945	305	85	185
IPS 15-38-1100	38	15	1153	365	105	250

PA6 Insulator with Spring Clamp
Type	Rated Voltage (kV)	Specified Mechanical Load (SML) (kN)	Leakage Distance L(mm)	Dry Arcing Distance (mm)	P.F. Withstand Voltage Min, Wet (≥kV)	Lightning Impulse Withstand Voltage (≥kV)
IPS 15-24-600-FC	24	15	565	265	70	175
IPS 15-24-700-FC	24	15	695	265	75	175
IPS 15-38-870-FC	38	15	923	305	85	185
IPS 15-38-1100-FC	38	15	1131	365	105	250

PA6 Insulator with Screw Clamp
Type	Rated Voltage (kV)	Specified Mechanical Load (SML) (kN)	Leakage Distance L(mm)	Dry Arcing Distance (mm)	P.F. Withstand Voltage Min, Wet (≥kV)	Lightning Impulse Withstand Voltage (≥kV)
IPS 15-24-600-SFC	24	15	567	265	65	155
IPS 15-24-700-SFC	24	15	695	265	75	175
IPS 15-38-870-SFC	38	15	923	305	85	185
IPS 15-38-1100-SFC	38	15	1131	365	105	250

1. Economic Packing desgin which will save your transportation cost.

2. Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble when you pick up the goods from the local customs.

TID POWER specializes in R&D, production, and global trade of composite insulators and live-line working equipment.

Our ISO9001-certified independent factory ensures end-to-end quality control per international standards.

Serving 200+ customers

across 30+ countries globally, TID POWER remains committed to technical excellence and innovation, with your satisfaction as our ultimate goal.

• Free sample available

• 24 hours on-line service

• Timely delivery

• Free technical support

• Long term after-sales service

1.Is your company a manufacturer or a trader?

* We are the manufacture, 15 years production experience; * Our factory has passed ROSH, SGS, etc; * Standard: IEC standard; * Quality control: passed the ISO9001.

2.Do you have export experience?

* More than 10 years export experience.

* TID products have been exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, USA, Costa Rica ,Brazil etc.

3.How to choose products?

* Standard products: Please select standard code according to the above reference file;

* Customized product: please tell us your requirements. We have a professional research and development team that provides strong technical support to meet your customized requirements.

4.Delivery time?

* Samples: 3-7 days; Order: 30 days or according to the order quantity.

5.Do you accept OEM/ODM?

* Yes, we have several customer ask OEM/ODM, we'll do what you tell us!

Choose Us

We will provide high-quality insulation products and customized services to you!

We are committed to creating greatest value for you!

Your satisfaction will be our ultimate goal!
