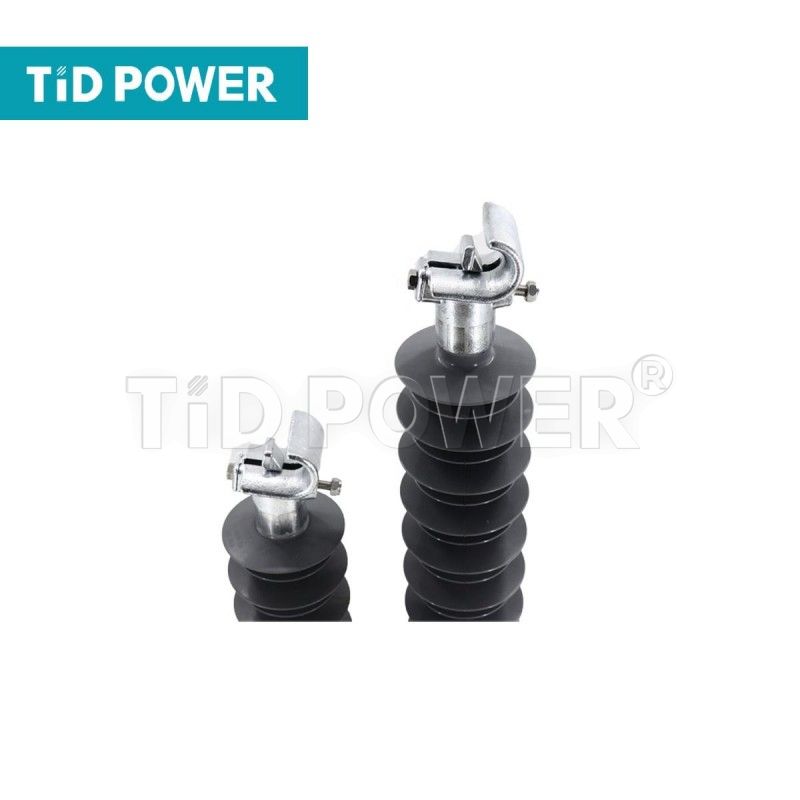

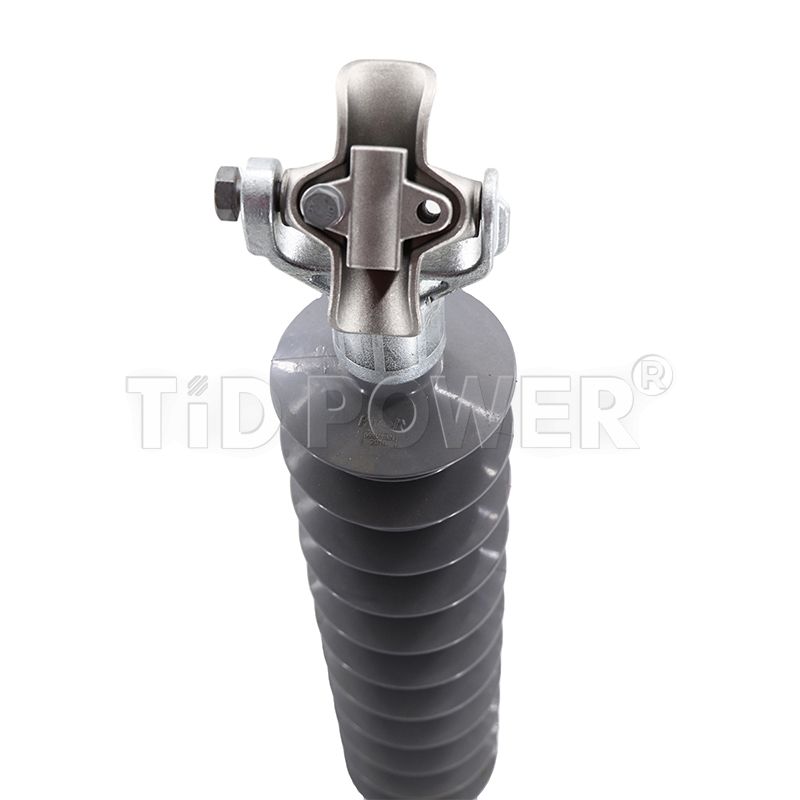

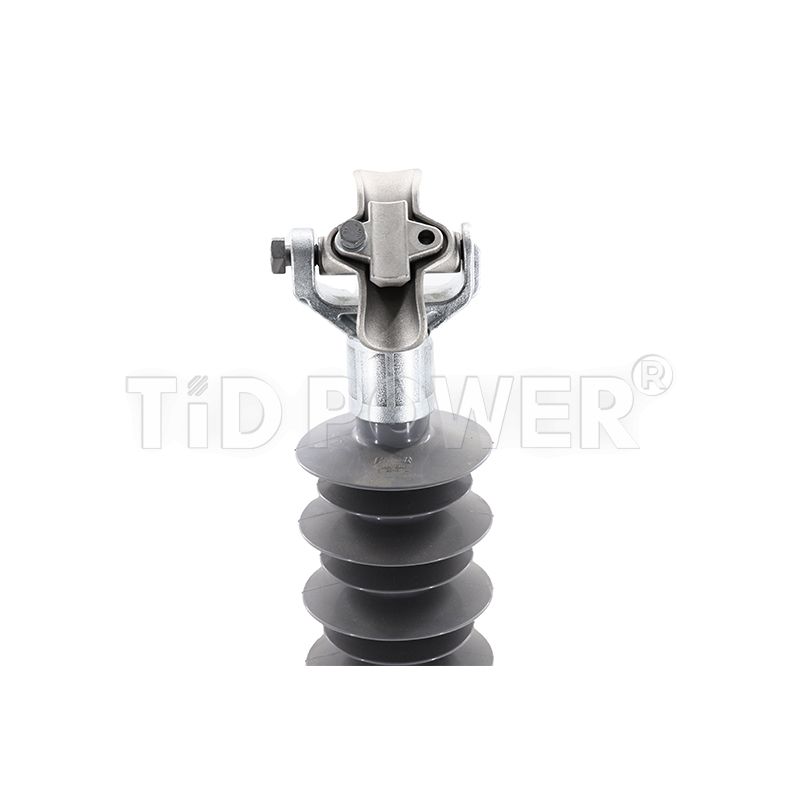

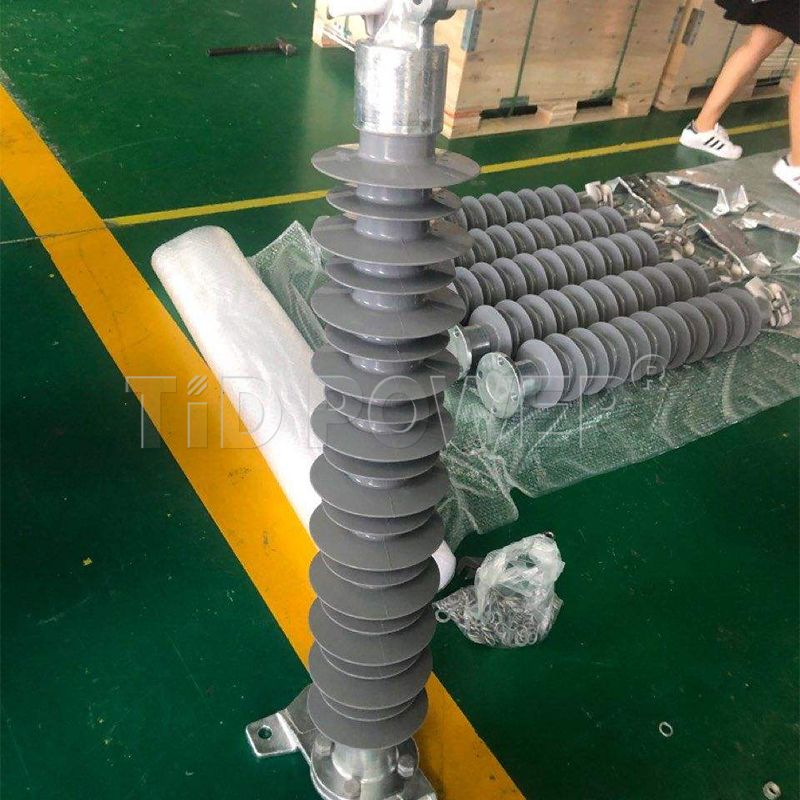

Product Description

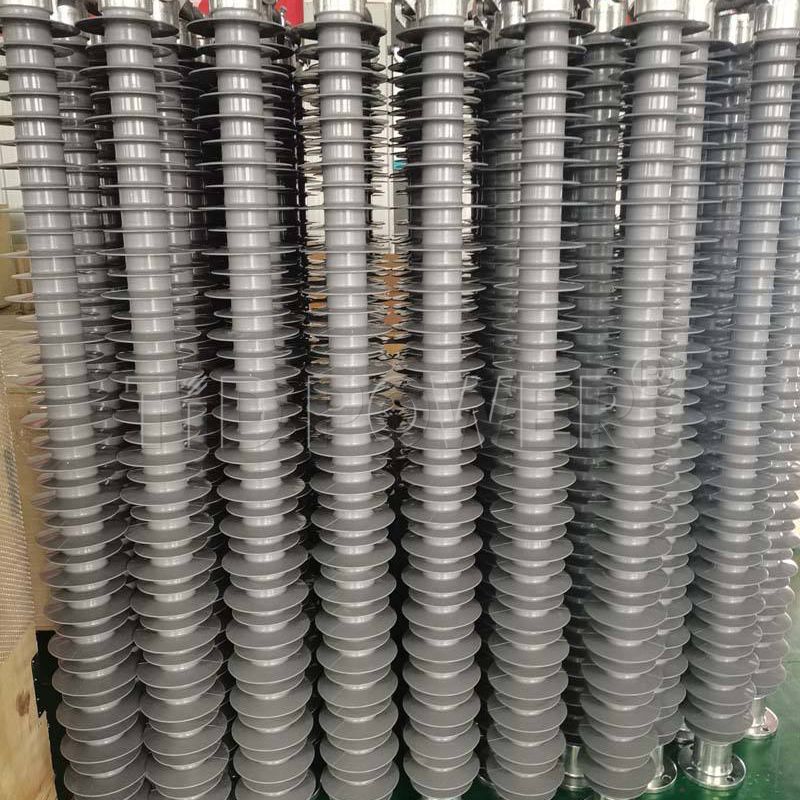

Polymer Insulator Character
Easy installation by light weight
Excellent mechanical strength
Excellent insulation in contaminated environment
Good Hydrophobic Performance
Good Raw material:
We use HTV silicone rubber which hydrophobicity can reach to HC1 level

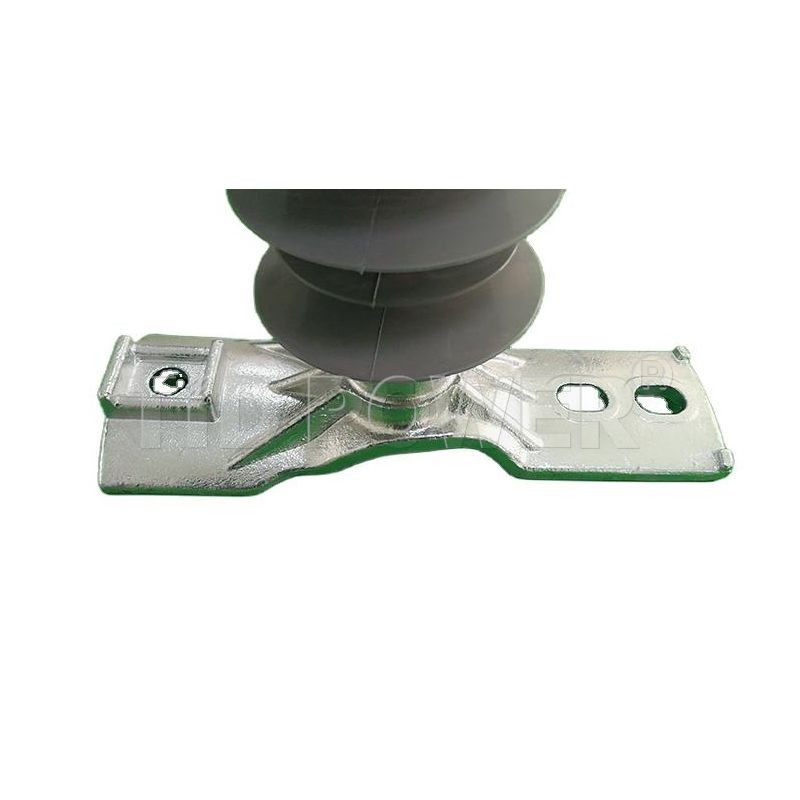

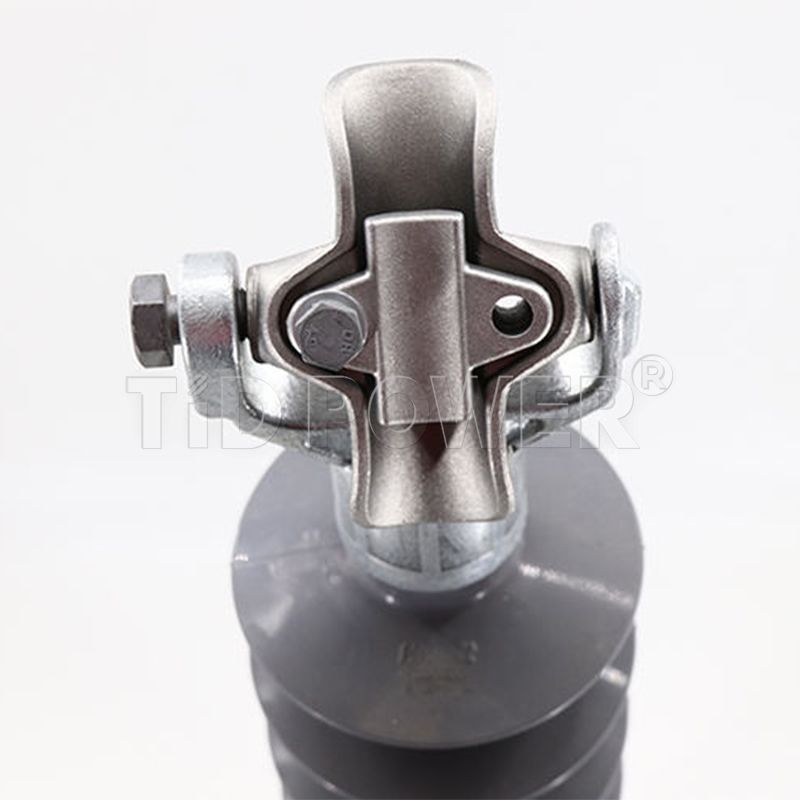

We use hot dip Galvanizing steel fitting ,the thickness of the zinc more than 100 μm
We use ECR rod as the core which is high acid resistant. 7200Hr testing passed
| Type | Rated Voltage (kV) | Specified cantilever load (SCL) (kN) | Section Length (L) (mm) | Leakage Distance L(mm) | Dry Arcing Distance (mm) | P.F.Withstand Voltage Min, Wet (≥kV) | Lightning Impulse Withstand Voltage (≥kV) |
| FPW-24/12.5 | 24 | 12.5 | 305±15 | 670 | 200 | 50 | 125 |
| FPW-35/12.5 | 35 | 12.5 | 470±15 | 900 | 340 | 95 | 220 |
| FPW-69/12.5 | 69 | 8 | 850±15 | 2000 | 690 | 190 | 430 |
| FSW-110/12.5 | 110 | 12.5 | 1200±20 | 2550 | 955 | 320 | 570 |
| FSW-132/12.5 | 132 | 12.5 | 1400±20 | 3150 | 1130 | 370 | 670 |
| FSW-220/12.5 | 220 | 12.5 | 2500±50 | 6300 | 2280 | 820 | 1350 |
Q1. Are you a manufacturer or trading company?
A. Manufacturer https://tidpower.en.alibaba.com/
Q2. How do you make sure your good quality ?
A. We use the best raw material , and every single product will go through a series of strict test.
Q3. Will you accept using customer's logo ?
A. Yes, we can offer OEM and ODM.
Q4. How about your delivery time?
A. Generally, it will take 40 days after receiving the advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery from our factory.
