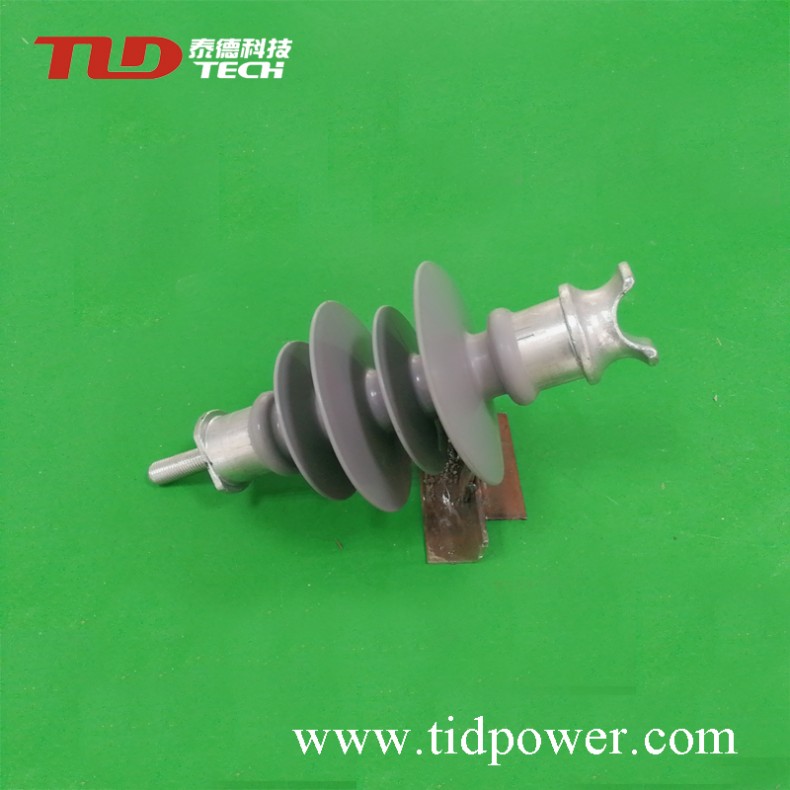

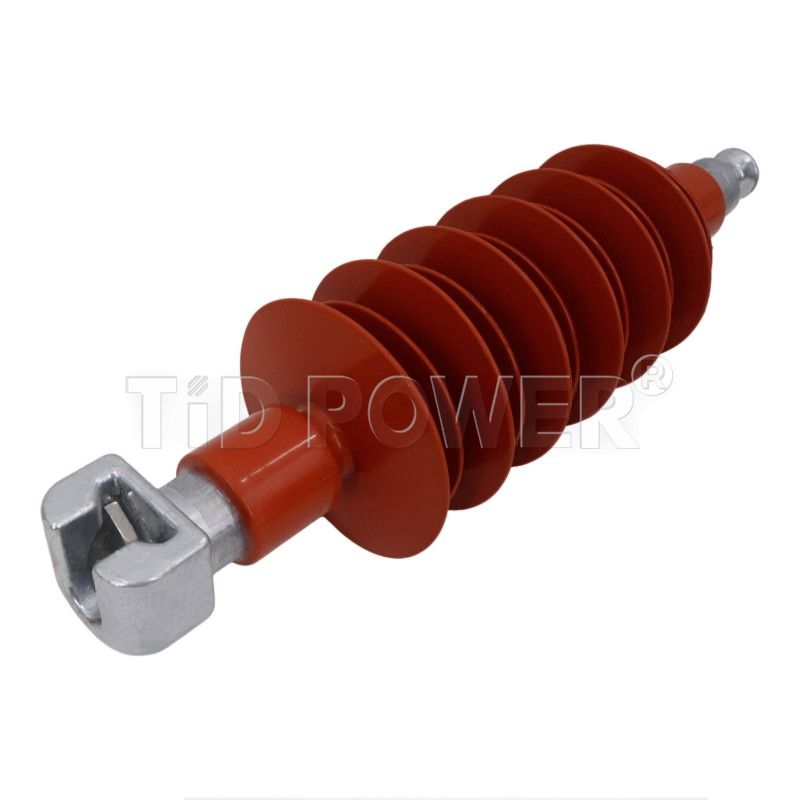

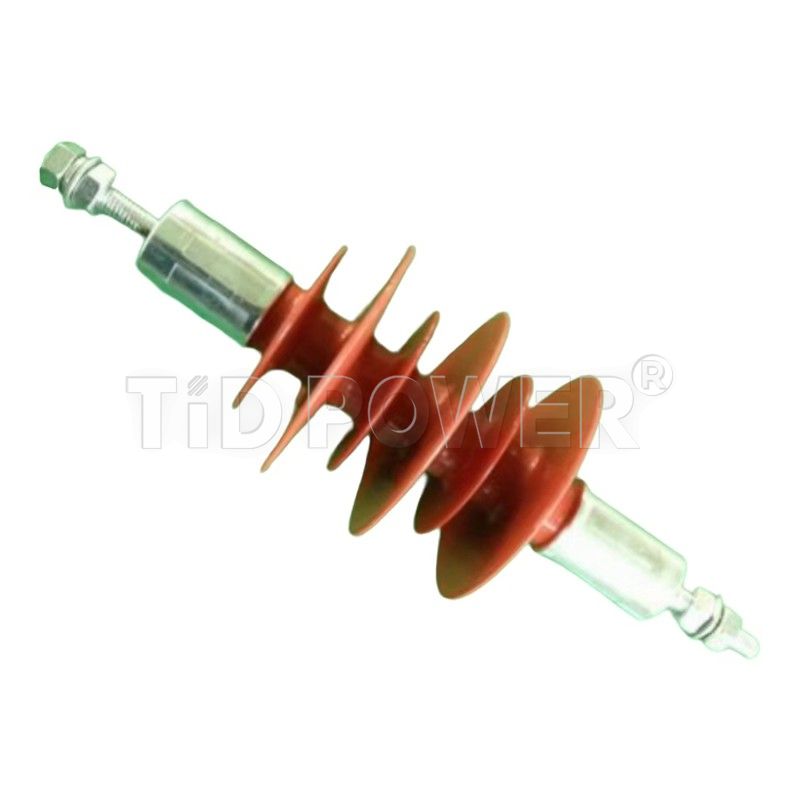

High Quality Custom Silicone Post Insulator High Voltage Insulation Materials & Elements Manufactured High Quality Manufacturer

Product Description

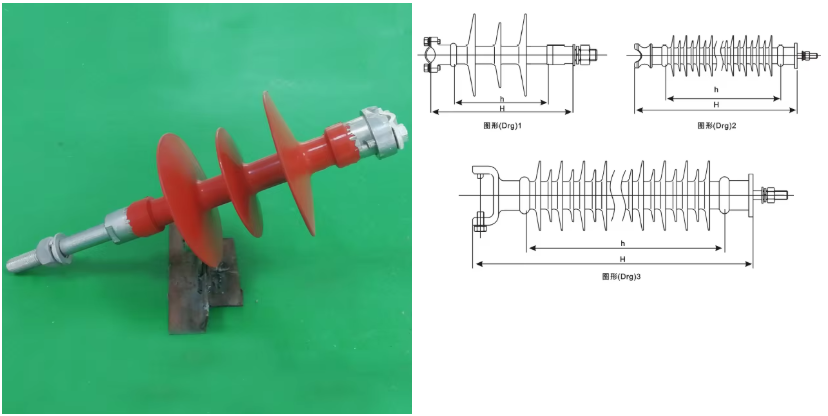

Type	Rated Voltage (KV)	SCL (KN)	Section Length H(mm)	Min Arcing Distance h(mm)	Min Nominal Creepage Distance L(mm)	Lightning Impulse Withstand Voltage (KV)	Power Frequency withstand voltage (KV)
FP-15T	10	3	206±10	125	300	90	40
FP-20T	10	3.5	250±10	165	450	90	40
FP-11/11	11	11	305±5	185	500	125	50
FP-22/10	22	10	470±10	270	960	150	85
FP-33/9	33	9	600±10	467	1500	258	130
FP-33/12.5	33	12.5	600±10	530	1440	325	140
FP-66/10.5	66	10.5	837±10	632	1820	350	165

if you couldn't find the suitable specification you require, please contact us for further tech assistance!

Product Advantage

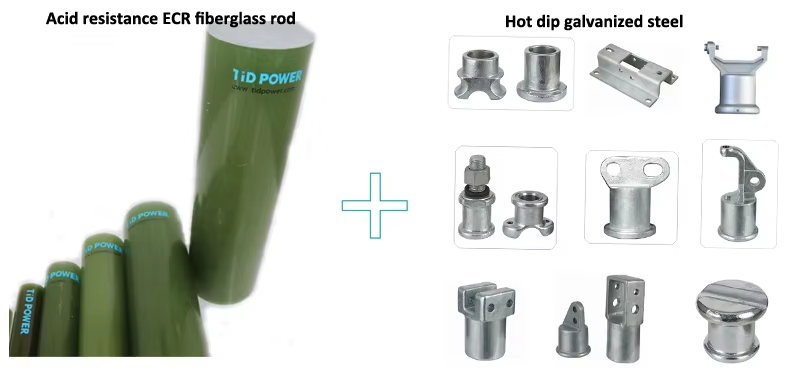

1 Fiberglass Rod

high-strength ECR fiberglass rod, which effectively avoids the occurrence of brittle fracture accidents.

2 Silicone Rubber

adopts a unique formula of silicone rubber, in which the original rubber content can reach 40%, it has good weather resistance and anti-aging properties, excellent hydrophobicity and hydrophobic migration.
the hydrophobicity can reach HC1 level

3 Crimping process

the patented ultrasonic sensing system and PC-controlled crimping equipment and technology to ensure the consistency and stability of the tensile strength of the product, solve the problem of insulator dropped accident caused by the fiberglass rod being crushed in the metal fittings .

4 Sealing Process

HTV overall injection process, the product has less interface and high reliability.

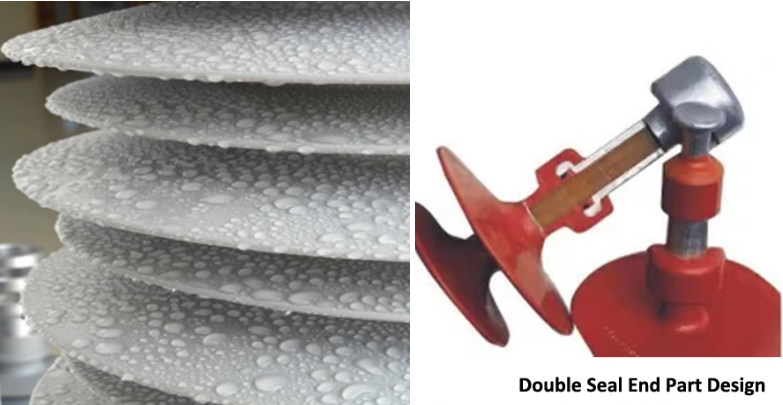

5 Interface

Double seal design, we insist on using the adhesive of the American LOAR company to ensure a good interface seal of the product.

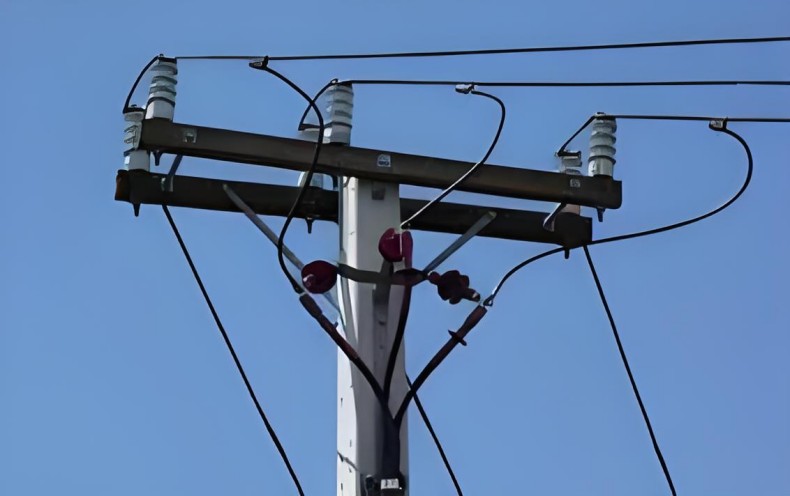

Product Application

Pacaking and shipping

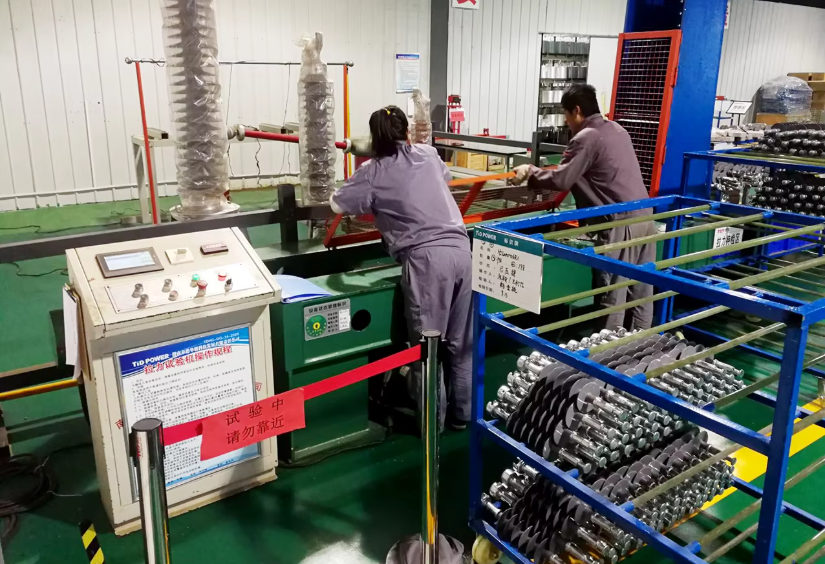

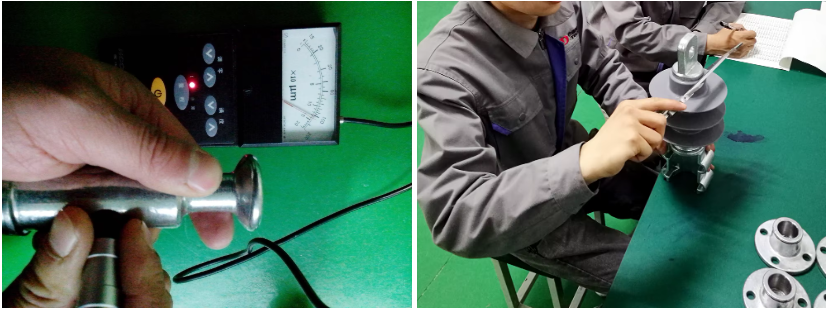

Test equipment

About TID POWER

TID Power, who located in the high voltage transmission and distribution products center of Xi’an city, was founded in 1998. We are professional and experienced in manufacturing insulators and live line tools for power line and railways.

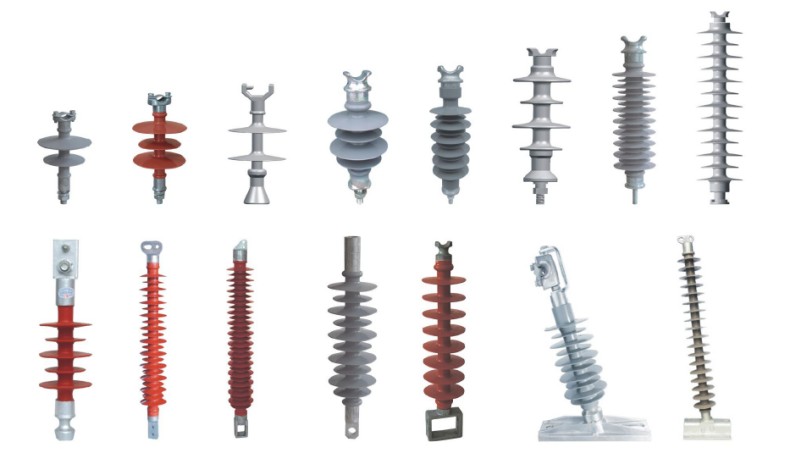

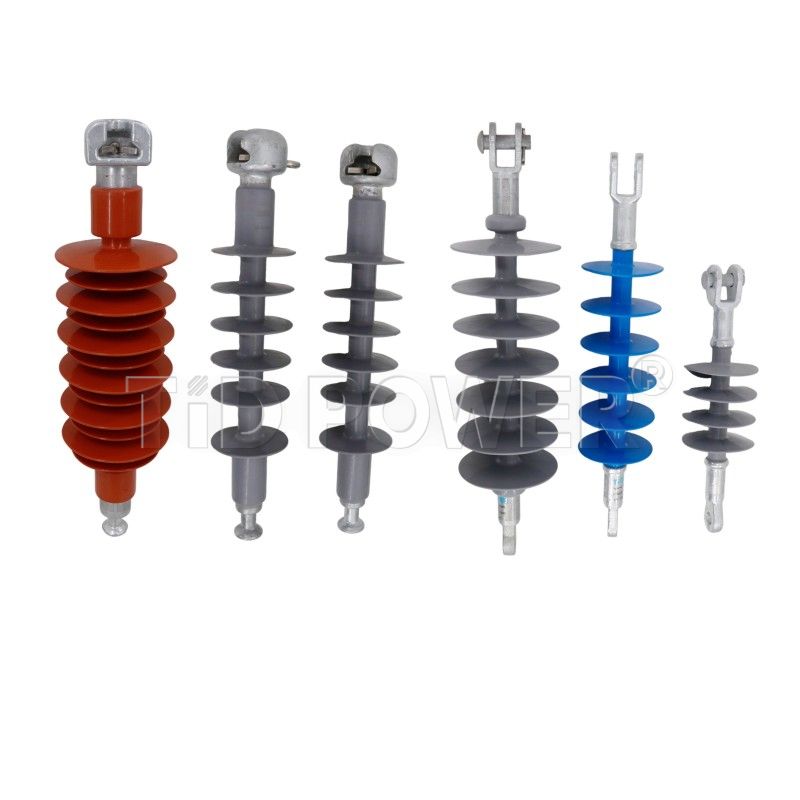

TID Power products include Polymer insulator up to DC800kV and live line tools for transmission line and distribution line. Our railway Insulators include railway /tramway polymer suspension/tension insulators 1.5KV,3kV and 25kV. railway /tramway polymer support insulators 1.5KV,3kV and 25kV. railway /tramway polymer cross arm insulators 3kV and 25kV, Loop Insulators for 1.5kV and 3kV, GRP rod, GRP tube and GRP foam filled tube for tramway catenary system.

TID Power attach great importance to technical innovation, we are glad to develop new products with our partner customers. The specialized patent products include loop insulators, foam filled fiberglass tubes for live line tools, GRP rods for railway catenary system.

TID Power is ISO 9001 qualified company. In order to ensure the quality, TID Power well supervise the raw material, the process and the finished products. TID Power make the main raw material of the products by ourselves, so we can control the raw material quality well. We have our own laboratory which was built according to IEC standard. TID Power always take the products quality as the life of the company.

TID Power products have already supplied to more than 30 countries and regions. include America, Germany, Switzerland, Spain,French, Chile, Vietnam, Indonesia, Egypt, Morocco and so on.

We will continually offer our big effort to support you to win in the market!

your satisfied is our ultimate aim!

Certification

WHY CHOOSE TID POWER PRODUCTS

Silicone Rubber insulators are mainly used for insulation, connection and mechanical support between conductors of transmission and distribution lines and towers or other electrical components. Compared with porcelain insulators and glass insulators, silicone Rubber insulators have the advantages of light weight, good hydrophobicity, and maintenance-free. In recent years, silicone Rubber insulators have become more and more widely used in power transmission and distribution lines due to their significant advantages.

The silicone Rubber insulator is mainly composed of three parts: Fiberglass rod, fitting and silicone rubber. Among them, the Fiberglass rod mainly plays the role of electrical insulation and bearing mechanical strength, and is the core component of the insulator. All our products use high-strength ECR rod, which ensure the good insulation performance and mechanical strength of the products; the outer insulating part is silicone rubber. The main purpose is to protect the Fiberglass rod and increase the creepage distance. Our company adopts a unique silicon-based silicone rubber formula. The product has good hydrophobicity and aging resistance. The Fitting mainly plays a role in connecting and fixing between the insulator and other components. The fittings are made of hot-dip galvanized steel or stainless steel and aluminum alloy according to customer requirements, and the products have very good corrosion resistance.

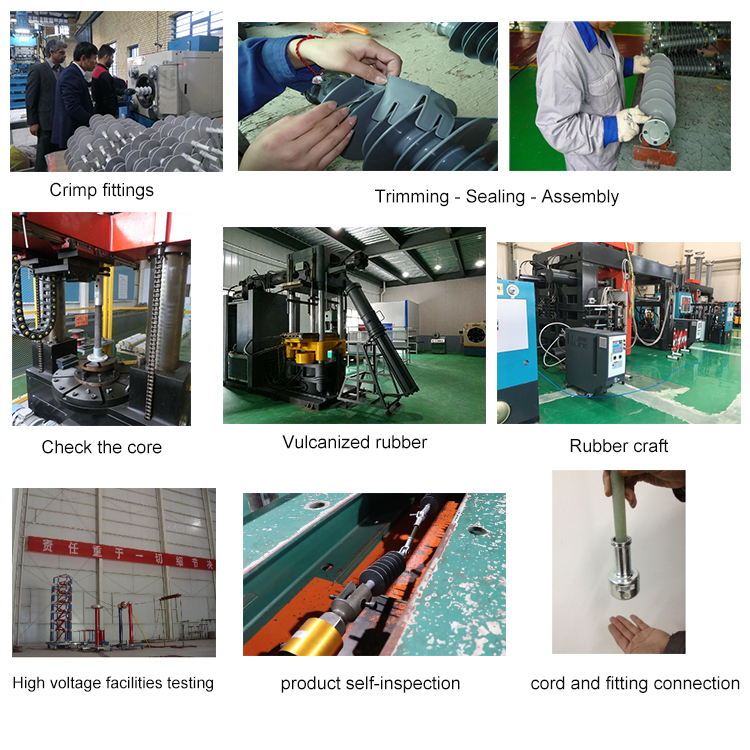

The manufacture of silicone Rubber insulators mainly includes crimping fittings and injection rubber housing. In the crimping process, our company adopts a number of monitoring and crimping technologies, which effectively prevent the insulator core rod and the fittings from being pulled off or broken. In the silicone rubber molding process, our company adopts the overall injection high temperature vulcanization process, and adopts RTV to double seal the end, which effectively reduces the risk of infiltration
of the end interface of the insulator by rainwater.

The key technology in the manufacture of silicone Rubber insulators is the bonding of the interface between several materials and the crimping technology of metal fittings and fiberglass rod. If there is a problem with the bonding between the silicone rubber sheath of the composite insulator and the fitting or fiberglass rod, the external contaminants will directly break down along the interface after erosion, the protective effect of the silicone rubber housing on the fiberglass rod will fail, and the contaminants will erode the fiberglass, etc. Hazards, such as tripping, disconnection and other running accidents on the working line. Silicone Rubber insulators are composed of three materials. Different materials have different material properties. The more types of materials, the more interfaces between materials and materials, and the higher probability of interface bonding problems.

We adopts different adhesive processes for the bonding of silicone rubber and fitting and silicone rubber and rod. For many years, we have insisted on using the adhesive of LOAR company in United States to ensure the stability of the bonding effect. When crimping fittings on fiberglass rod, we use the patented ultrasonic sensing system and PC-controlled crimping equipment and technology. If the fiberglass is abnormal during crimping, the system will automatically alarm, which effectively avoids problem of difficult to find when the fiberglass rod broken inside the fitting., the PC-controlled crimping system has the function of pre-crimping, which eliminates the gap between the metal fitting and the fiberglass rod through the pre-tightening pressure and makes the gap tolerance of same the batch of products close to the same. Thus, the consistency and stability of the tensile strength of the same batch products are improved, and the disconnection accident caused by dropping down and breaking is avoided.

FAQ

1. Who are we?
We are based in Shaanxi, China, start from 2013,sell to Domestic Market(22.00%),Western Europe(15.00%),North America(11.00%),Mid East(10.00%),South America(9.00%),Africa(8.00%),Eastern Europe(6.00%),Northern Europe(5.00%),South Asia(4.00%),Southeast Asia(3.00%),Southern Europe(3.00%),Central America(2.00%),Eastern Asia(1.00%),Oceania(1.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Polymer Insulator,Post insulator,railway insulator,fiberglass rod,fiberglass tube

4. Why should you buy from us not from other suppliers?
TID advantage : 1. 25 years experice. 2.Strict quality control. 3.Advanced Manufacture and Test equipment. 4 Professional Tech support & service team. 5.Free charge Sourcing ,Inspection Service 6.Accept Tailor-made products & Invest on new products

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CAD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean,Italian
