Our company's products all use high-strength ECR fiberglass rod, which effectively avoids the occurrence of brittle fracture accidents.

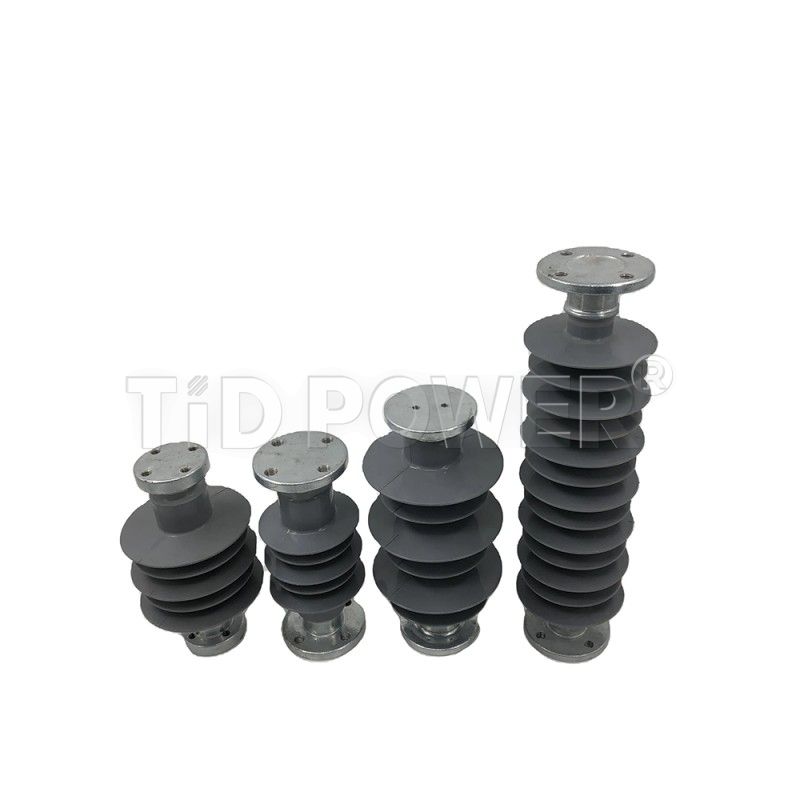

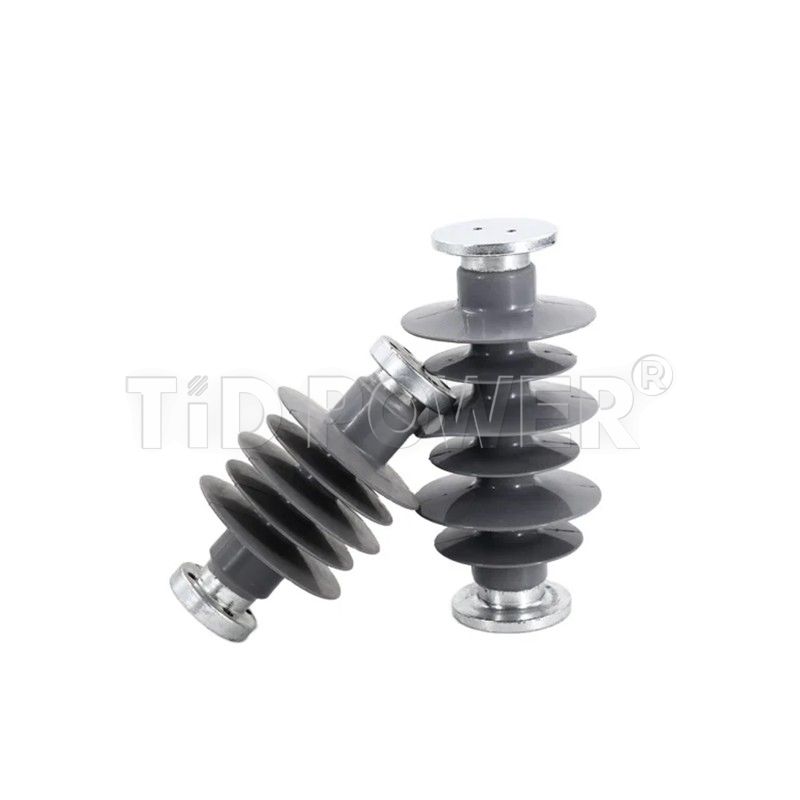

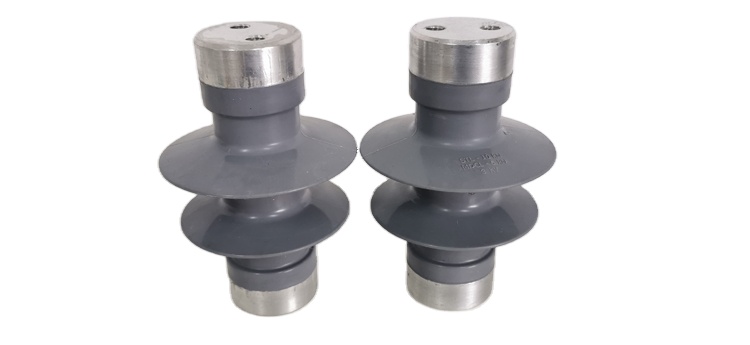

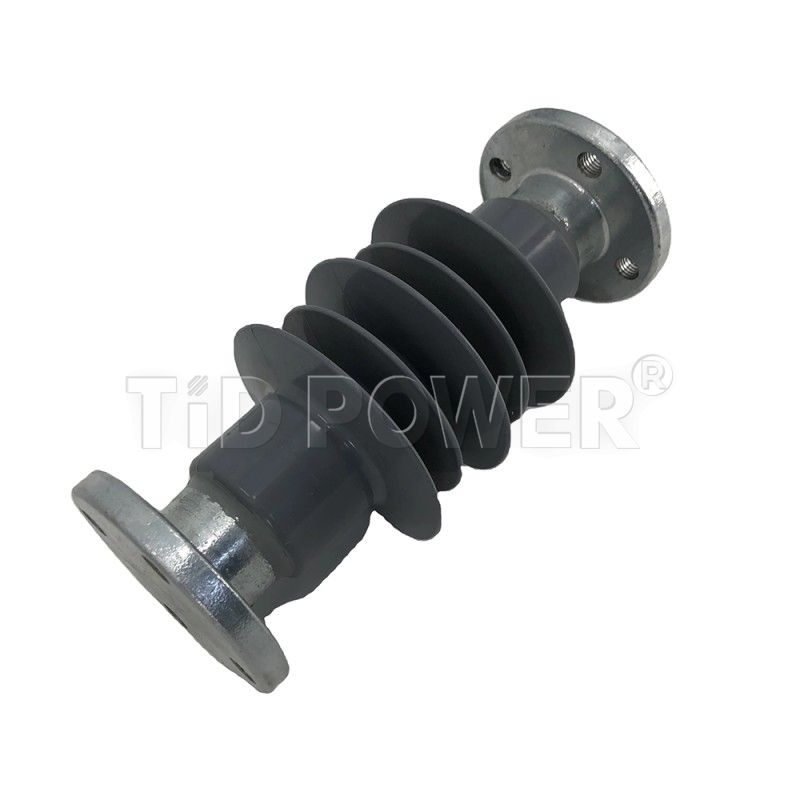

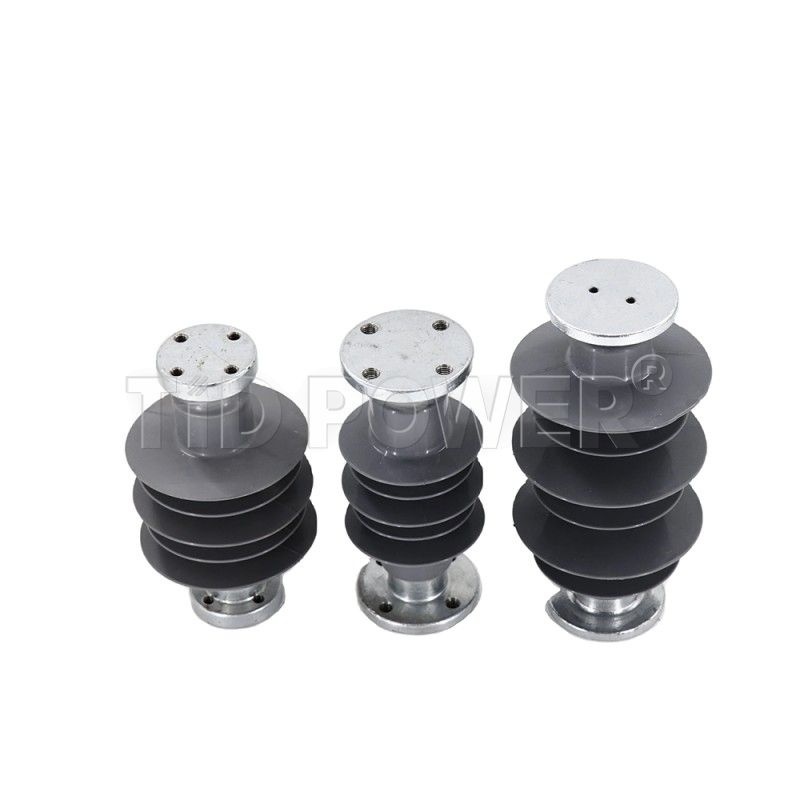

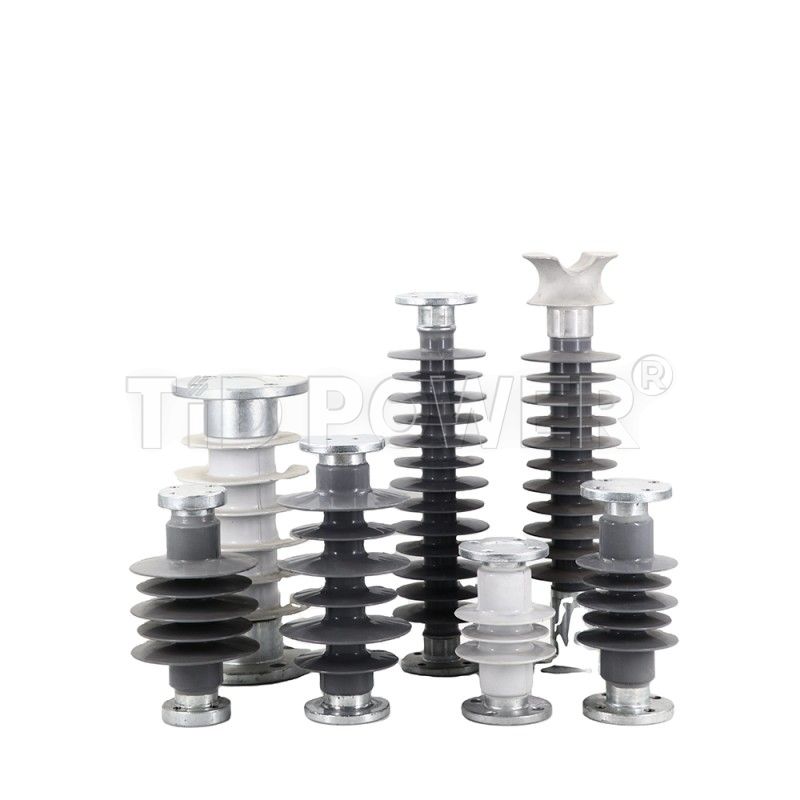

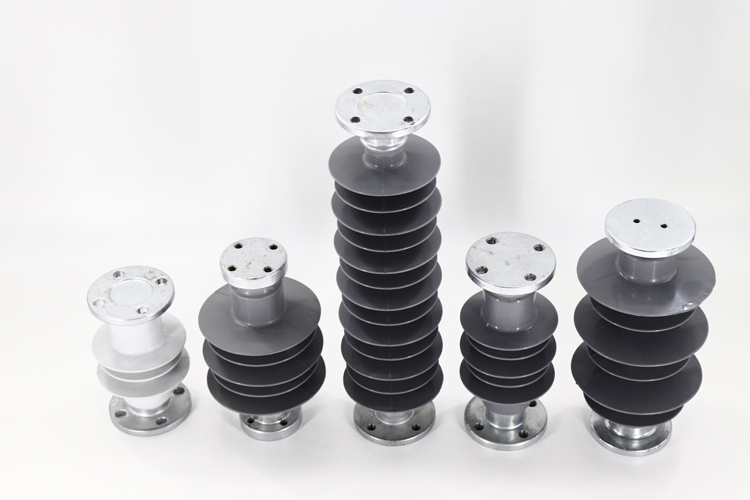

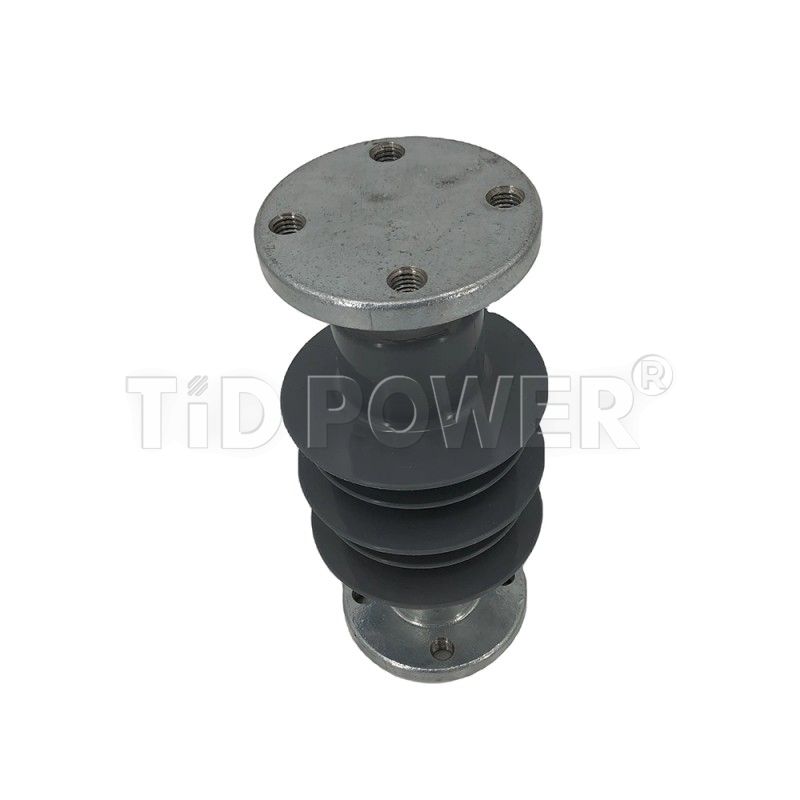

Product Description
|

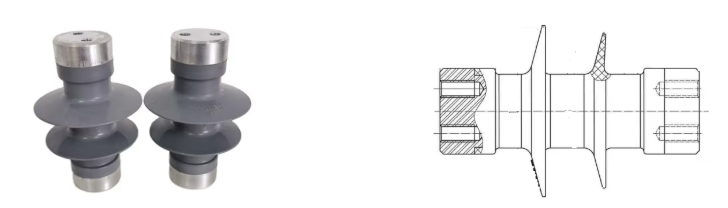

Voltage (kV) |
SML（kN) |
Bending Strength (kN) |
Section Length (mm) |
Arcing Distance (mm) |
Creepage Distance (mm) |
Wet Power Frequency Withstand Voltage(kV) |
Lightning Impulsed Withstand Voltage(kV) |
Top Flange (mm) |
Bottom flange (mm） |
|
1.5
|
3
|
12.5
|
70±1
|
60
|
140
|
18
|
35
|
1-M16 Φ45
|
1-M16 Φ45
|
|
3
|
10
|
6.5
|
165±1
|
110
|
210
|
35
|
65
|
2-M10 Φ50
|
2-M10 Φ50
|
|
1
|
Fiberglass Rod
|
Our company's products all use high-strength ECR fiberglass rod, which effectively avoids the occurrence of brittle fracture accidents.
|
|
2 |
Silicone Rubber |
Our company adopts a unique formula of silicone rubber, in which the original rubber content can reach 40%, so our company's products have good weather resistance and anti-aging properties, excellent hydrophobicity and hydrophobic migration, and the hydrophobicity of the product can reach HC1 level.
|
|
3 |
Crimping process |
We use the patented ultrasonic sensing system and PC-controlled crimping equipment and technology to ensure the consistency and stability of the tensile strength of the product, solve the problem of insulator dropped accident caused by the fiberglass rod being crushed in the metal fittings .
|
|
4
|
Sealing Process
|
We adopt the HTV overall injection process, the product has less interface and high reliability.
|
|
5
|
Interface
|

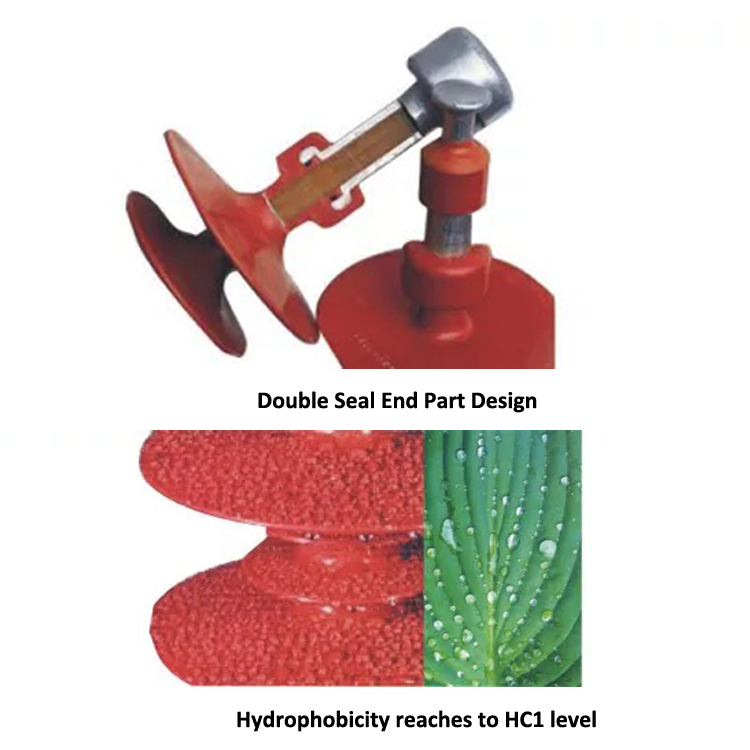

We adopt a double seal design, and we insist on using the adhesive of the American LOAR company to ensure a good interface seal of the product.
|

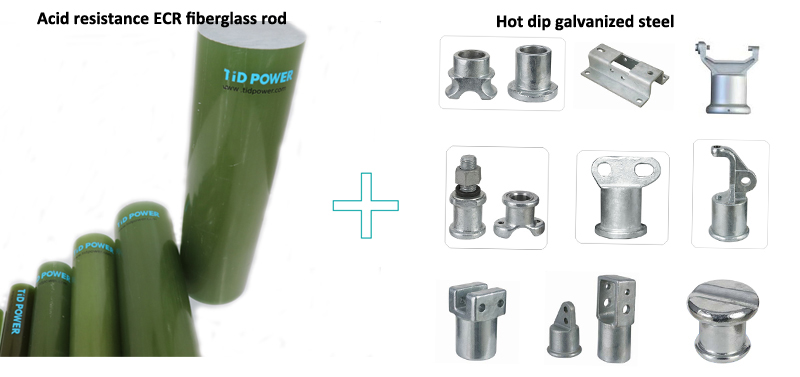

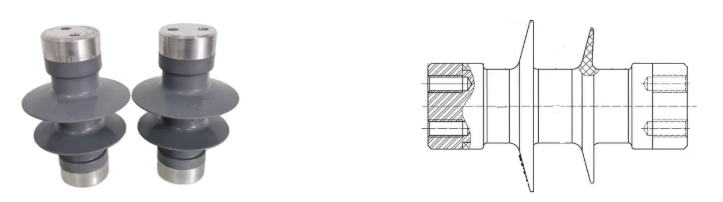

The silicone Rubber insulator is mainly composed of three parts: Fiberglass rod, fitting and silicone rubber. Among them, the Fiberglass rod mainly plays the role of electrical insulation and bearing mechanical strength, and is the core component of the insulator. All our products use high-strength ECR rod, which ensure the good insulation performance and mechanical strength of the products; the outer insulating part is silicone rubber. The main purpose is to protect the Fiberglass rod and increase the creepage distance. Our company adopts a unique silicon-based silicone rubber formula. The product has good hydrophobicity and aging resistance. The Fitting mainly plays a role in connecting and fixing between the insulator and other components. The fittings are made of hot-dip galvanized steel or stainless steel and aluminum alloy according to customer requirements, and the products have very good corrosion resistance.
The manufacture of silicone Rubber insulators mainly includes crimping fittings and injection rubber housing. In the crimping process, our company adopts a number of monitoring and crimping technologies, which effectively prevent the insulator core rod and the fittings from being pulled off or broken. In the silicone rubber molding process, our company adopts the overall injection high temperature vulcanization process, and adopts RTV to double seal the end, which effectively reduces the risk of infiltration of the end interface of the insulator by rainwater.

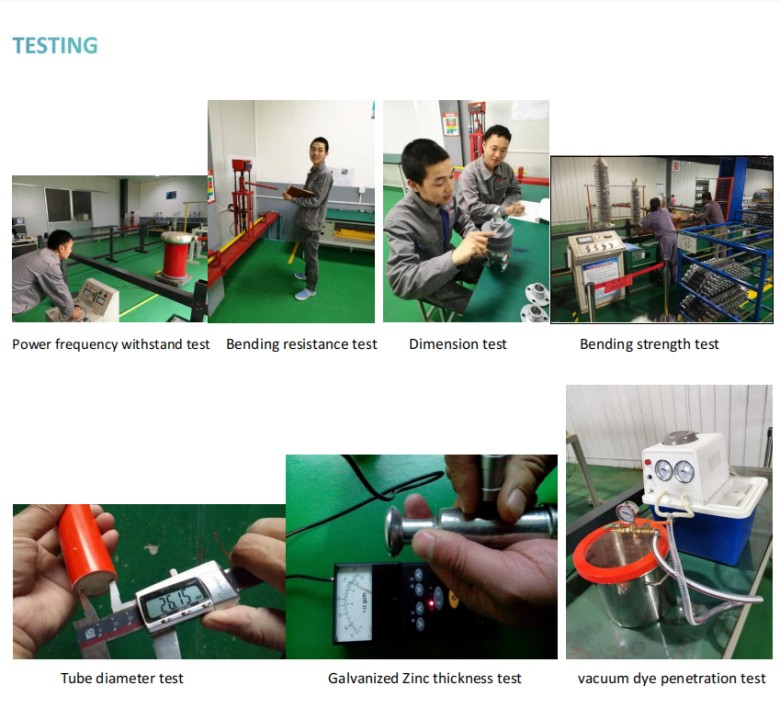

The key technology in the manufacture of silicone Rubber insulators is the bonding of the interface between several materials and the crimping technology of metal fittings and fiberglass rod. If there is a problem with the bonding between the silicone rubber sheath of the composite insulator and the fitting or fiberglass rod, the external contaminants will directly break down along the interface after erosion, the protective effect of the silicone rubber housing on the fiberglass rod will fail, and the contaminants will erode the fiberglass, etc. Hazards, such as tripping, disconnection and other running accidents on the working line. Silicone Rubber insulators are composed of three materials. Different materials have different material properties. The more types of materials, the more interfaces between materials and materials, and the higher probability of interface bonding problems.
Our company adopts different adhesive processes for the bonding of silicone rubber and fitting and silicone rubber and rod. For many years, we have insisted on using the adhesive of LOAR company in the United States to ensure the stability of the bonding effect. When crimping fittings on fiberglass rod, our company uses the patented ultrasonic sensing system and PC-controlled crimping equipment and technology. If the fiberglass is abnormal during crimping, the system will automatically alarm, which effectively avoids problem of difficult to find when the fiberglass rod broken inside the fitting., the PC-controlled crimping system has the function of pre-crimping, which eliminates the gap between the metal fitting and the fiberglass rod through the pre-tightening pressure and makes the gap tolerance of same the batch of products close to the same. Thus, the consistency and stability of the tensile strength of the same batch products are improved, and the disconnection accident caused by dropping down and breaking is avoided.
