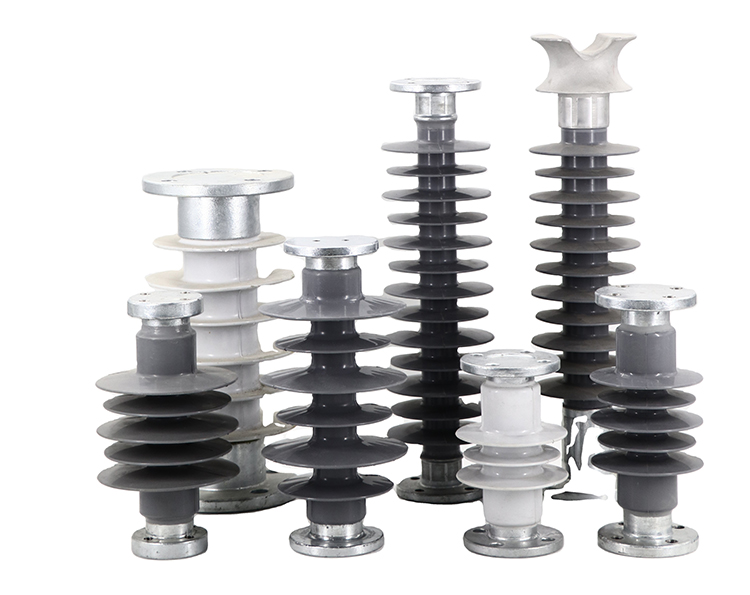

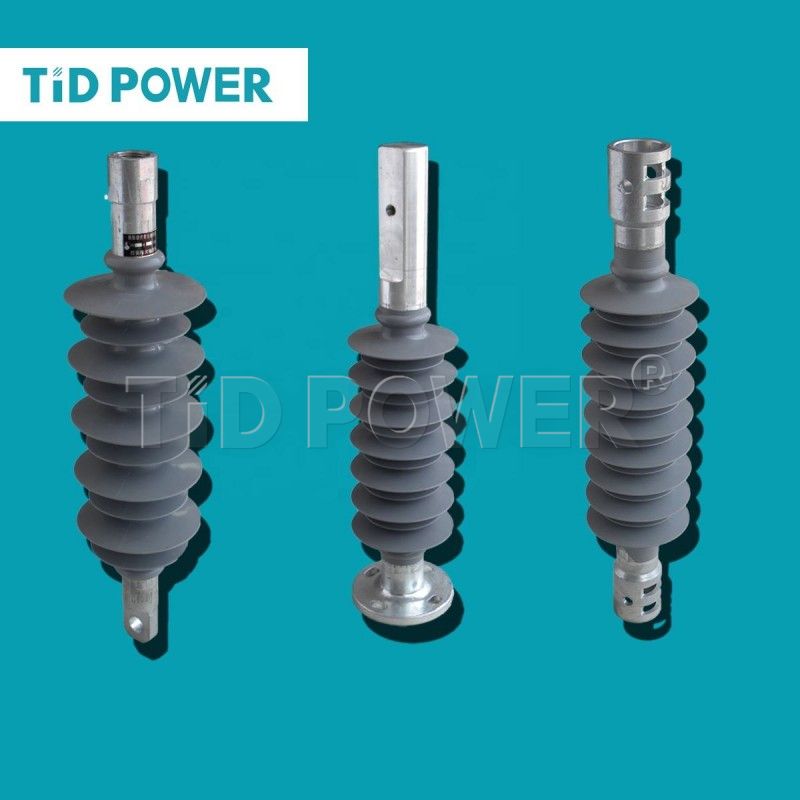

Silicone Rubber Post Insulator

Product Character:

The product is applicable for electrified railway tunnel in complex environment, can effectively prevent pollution flashover and reduce cleaning and maintenance Its feature of small dimension makes it never substituted by porcelain or glass insulator, especially under low tunnel clearance.

Product Structure:

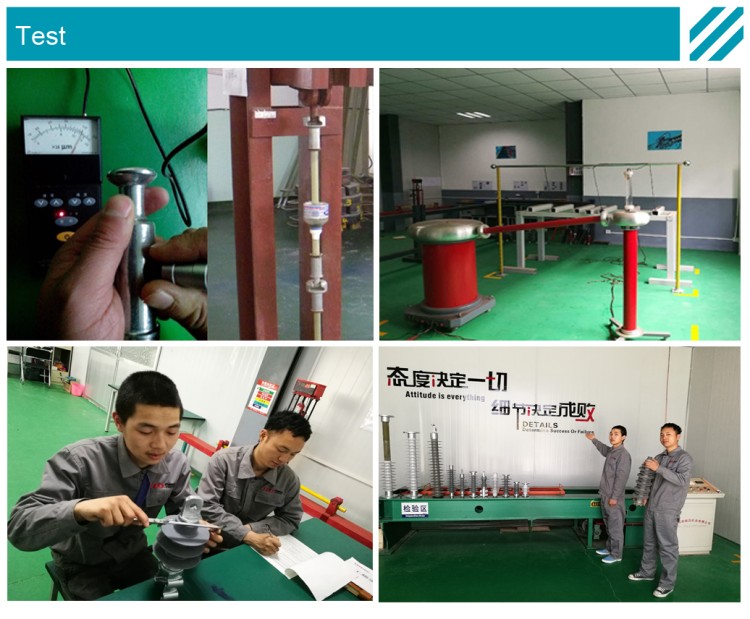

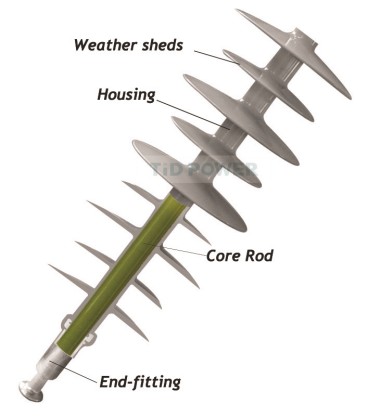

Composite Insulators are composed of FRP rod silicone rubber shed and metal fitting. We use the complete injection technology to solve the problem of interface electric puncture which highly affect the reliability of composite insulator. To connect the fitting and the core rod, we adopt the crimping technology. We have full automatic soundwave detection testing systerm.

Product Performance:

• High mechanical strength
• Good performance of hydrophobicity and anti-pollution
• Excellent electrical specification
• Small volume and light weight

TID POWER Composite Insulator Advantage:

We adopt advanced injection producing technology for housing and shed design adopt unique aerodynamics principle.

Good Raw material :

• HTV silicone rubber:  hydrophobicity can reach to HC1 level
• Hot dip Galvanizing steel fitting: the thickness of zinc more than 100 μm
• ECR core rod: high acid resistant. 7200Hr testing passed

Special marking design:

• The double seal design between the rubber and fitting
• Mark your logo on the fitting or rubber if you need

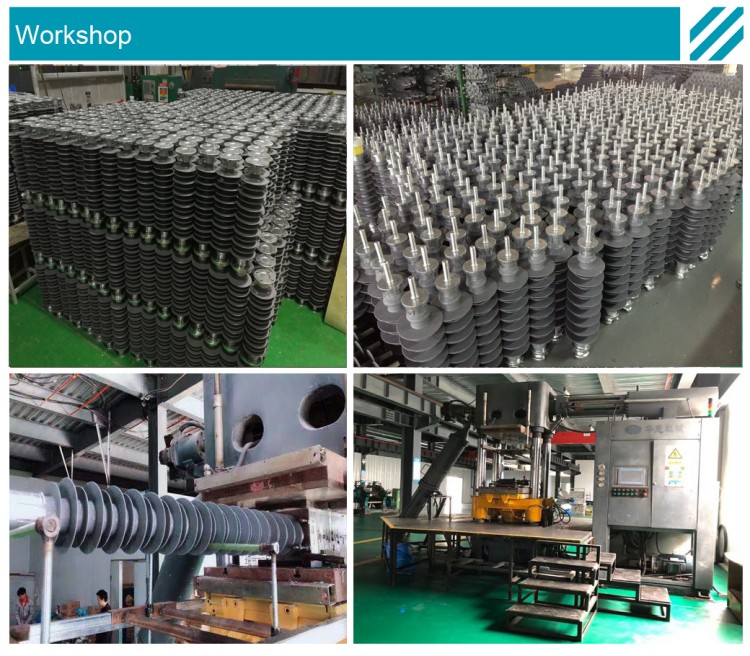

Excellent Manufacturing Technology:

• Perfect matching between fitting and rod
• Perfect bound between silicone rubber and the rod

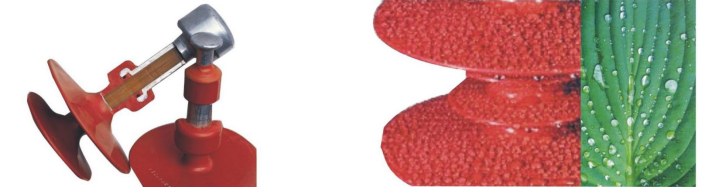

Double Seal End Part Design                                   Good Hydrophobicity Performance

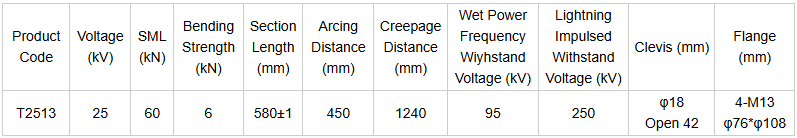

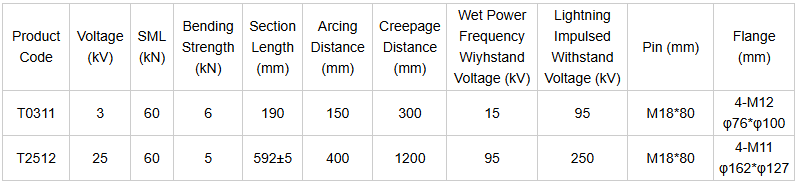

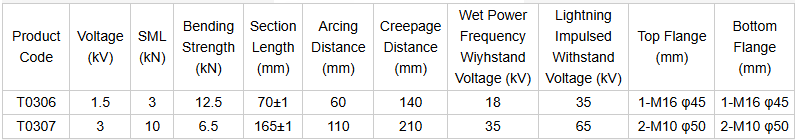

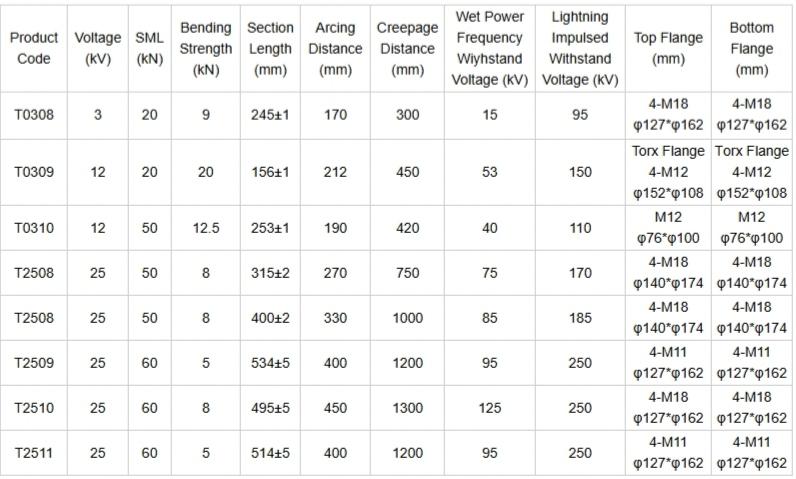

Product Specification:

Related Products:

GPR Tramway Rod	GPR Tramway Tube	Cross Arm Insulator	Loop Insulator
Suspension/Tension Insulator

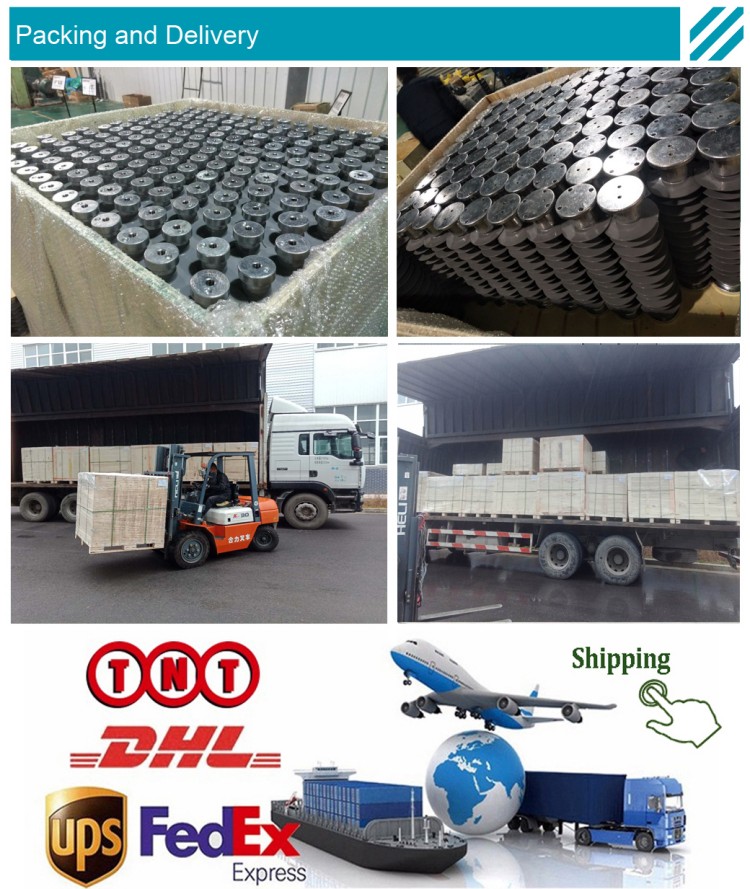

1. Economic Packing desgin which will save your transportation cost.

2. Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble when you pick up the goods from the local customs.

1.Is your company a manufacturer or a trader?

* We are the manufacture, 15 years production experience;

* our factory has passed ROSH, SGS, etc;

* Standard: IEC standard;

* Have own quality control.

2.Do you have export experience?

* More than 10 years export experience.

*TID products have been exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, USA, Costa rica ,Brazil etc.

3.How to choose products?

*Standard products: Please select standard code according to the above reference file;

*Customized product: please tell us

 **Special material requirements;  **Fitting model and mark ;  ** Voltage;

 **Tensile or Bending strength;  **Creepage distance or pollution level;

 **Structural height or electrical performance.

4.Productive capacity?

*216,000 PCS per year.
