Product Description

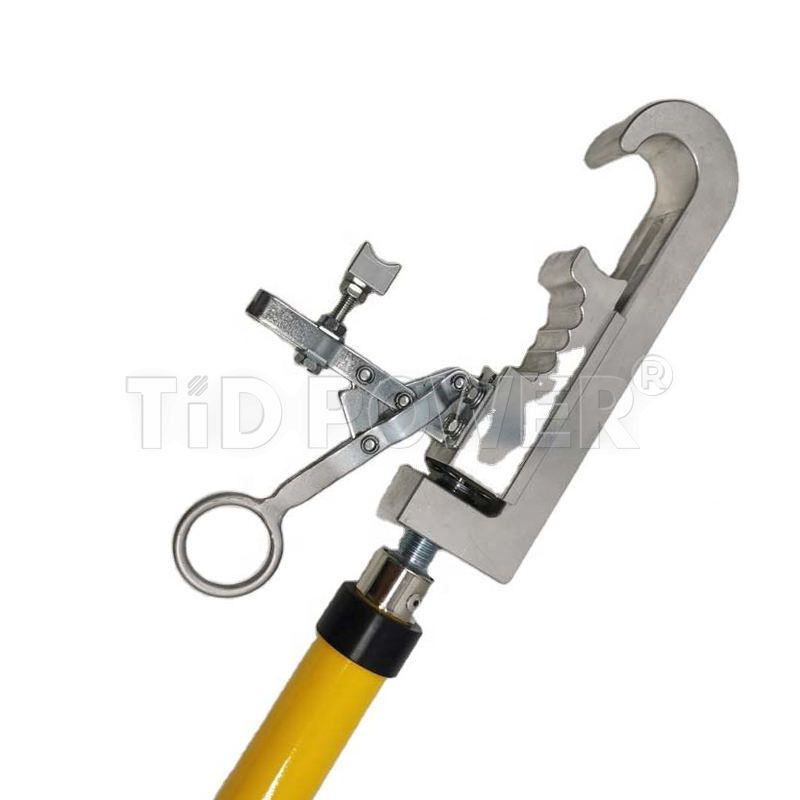

Pre-connecting Insulated Mounting Rod
Product Purpose:
The wire pre-connecting insulating mounting rod is mainly used to fasten the lead line on the main lead line when the lead line is connected in live operation, which reduces the operation risk caused by the sloshing of the lead line and the lead line when the lead line is fixed in the clamp.
Product Character:
How to Use It?
When working, just put the drain wire into the wire clip at the lower part of the operating head of the mounting rod in advance, tighten the screw to lock the wire, then hang the installation on the main wire, and then pull the mounting rod down, the lower part of the operating head of the installation bar will move up to the main line, and then clockwise screw the installation bar, the top of the drainage line clamp will lock the main line. After installing the clamp connecting the main lead to the drain line, the gun operator can be used to loosen the drain line by twisting the clamp lock ring of the lock drain line on the mounting rod. Then turn the mounting rod counterclockwise, loosen the locking mechanism of the mounting rod on the main lead wire, and push the mounting rod upward. The wire clamp at the lower part of the operating head of the mounting rod will move down, loosen the clamping on the main lead wire, and withdraw the mounting rod, live wire connection work completed.
Product Specification:
| Code | Total Length (mm) | Outer Diameter (mm) | Max. Outside Dia. of Drain Line (mm) | Max. Main Line Diameter (mm) | Weight (mm) |
| 219001 | 1200 | 32 | 20 | 30 | 1.6 |
Related Products:
  |
  |
  |
| Telescopic Hot Stick | Height Measuring Rod | Shotgun Stick |
  |
  |
  |
| Insulated Clamp Rod | Grounding Set | Insulation Tool Shelf |
1.Is your company a manufacturer or a trader?
* We are the manufacture, 15 years production experience;
* Our factory has passed ROSH, SGS, etc;
* Standard: IEC standard;
* Quality control: passed the ISO9001.
2.Do you have export experience?
* More than 10 years export experience.
*TID products have been exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, USA, Costa rica ,Brazil etc.
3.How to choose products?
*Standard products: Please select standard code according to the above reference file;
*Customized product: please tell us your requirements. We have a professional research and development team that provides strong technical support to meet your customized requirements.
4.Productive capacity?
*100,000 pcs per year.
5.Delivery time?
*Samples: 3-7 days; order: 30 days or according to the order quantity.
6.Do you accept OEM/ODM?
* Yes, we have several customer ask OEM/ODM, we'll do what you tell us!
