The product is applicable for electrified railway tunnel in complex environment, can effectively prevent pollution flashover and reduce cleaning and maintenance Its feature of small dimension makes it never substituted by porcelain or glass insulator, especially under low tunnel clearance.
Product Description

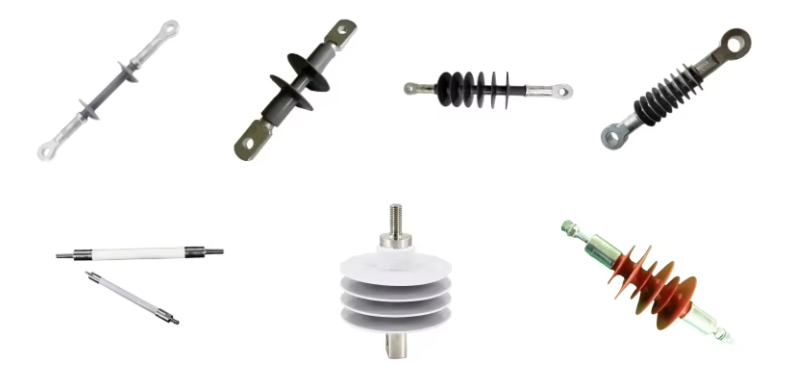

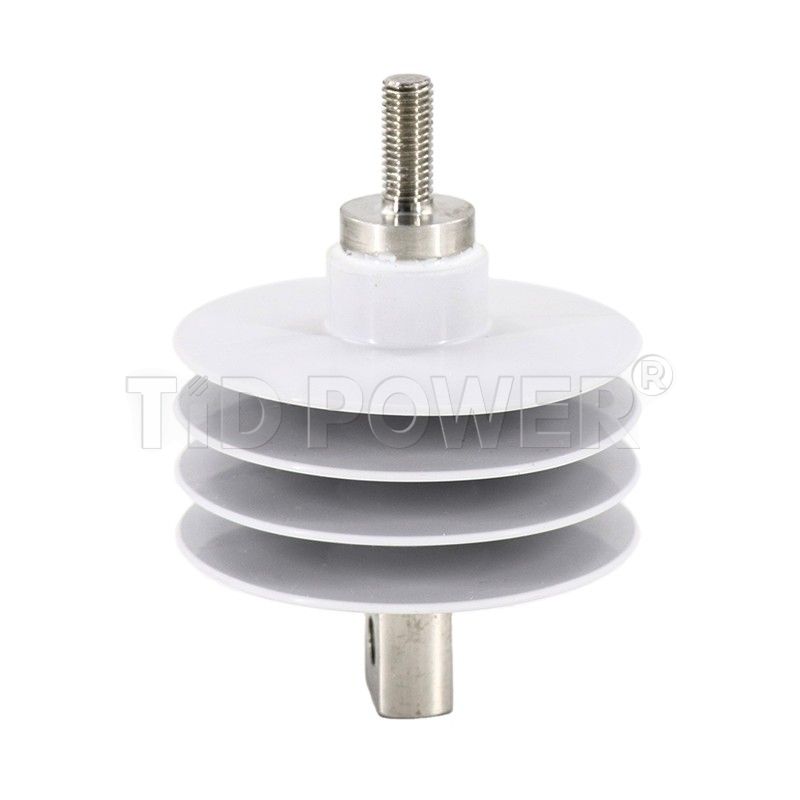

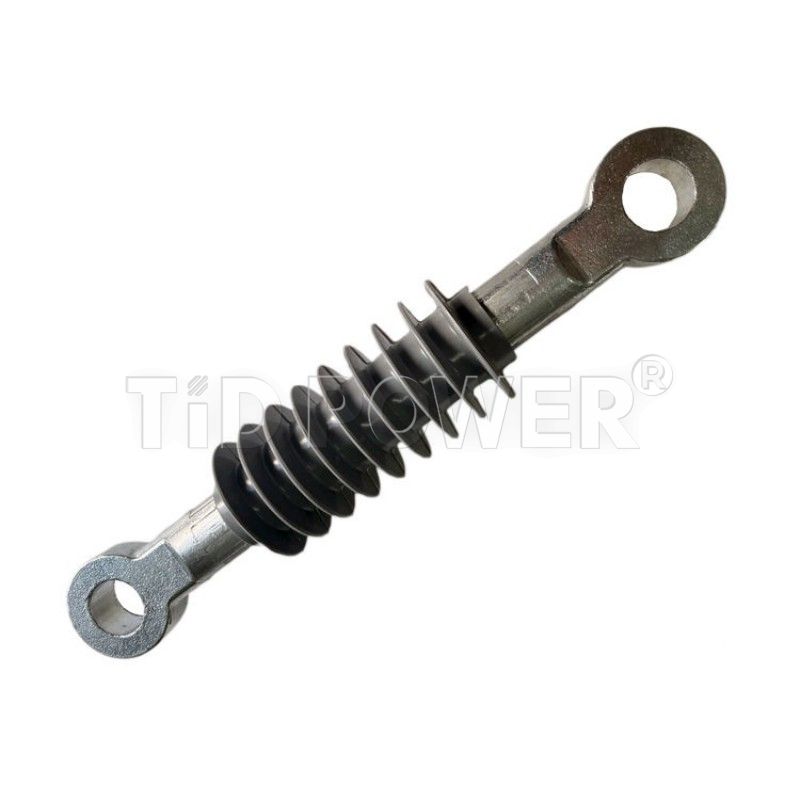

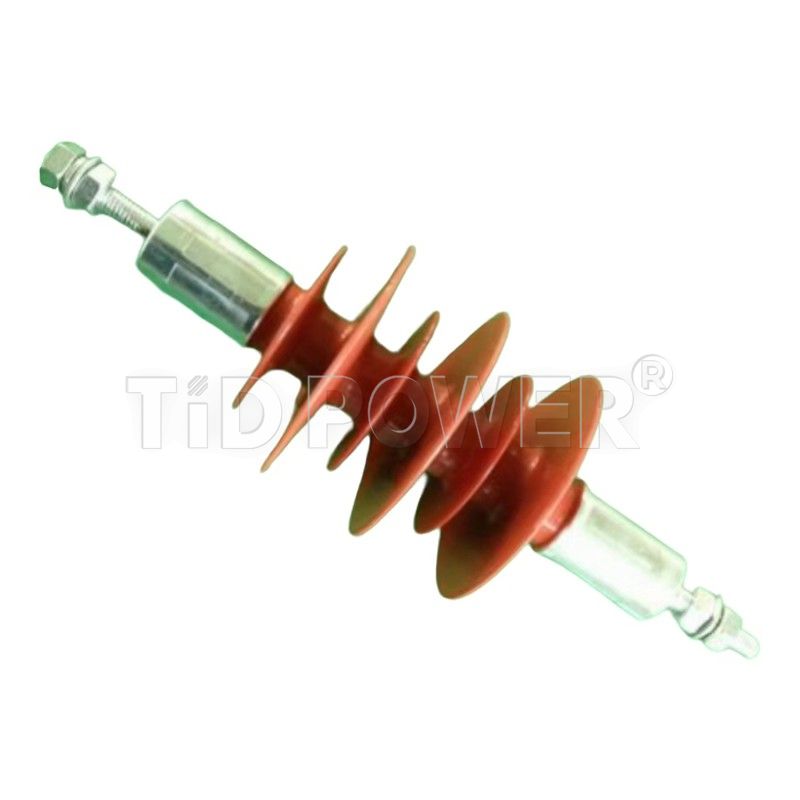

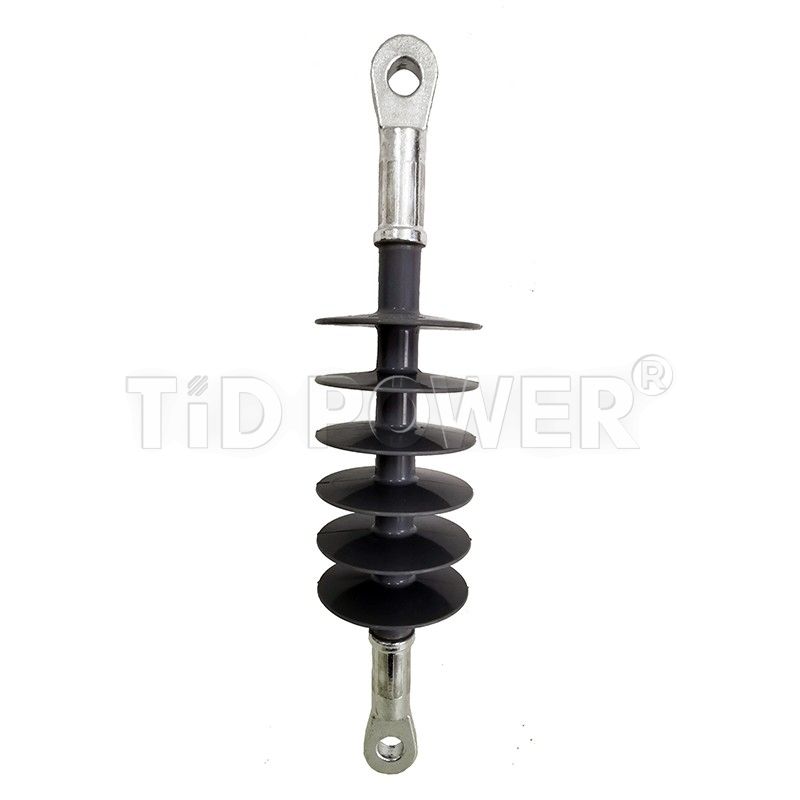

Silicone Rubber Suspension Tension Insulator
Product Character:
The product is applicable for electrified railway tunnel in complex environment, can effectively prevent pollution flashover and reduce cleaning and maintenance Its feature of small dimension makes it never substituted by porcelain or glass insulator, especially under low tunnel clearance.

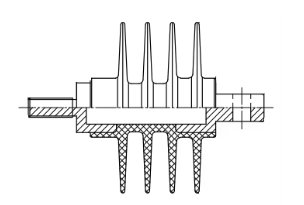

Product Structure:

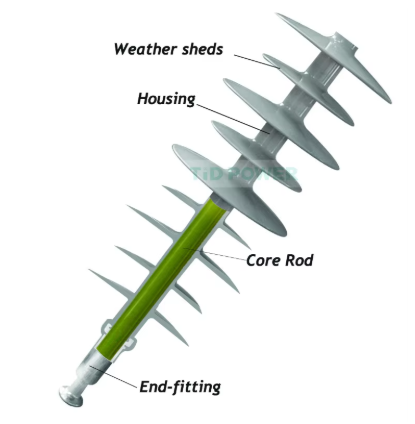

Composite Insulators are composed of FRP rod silicone rubber shed and metal fitting. We use the complete injection technology to solve the problem of interface electric puncture which highly affect the reliability of composite insulator. To connect the fitting and the core rod, we adopt the crimping technology. We have full automatic soundwave detection testing system.
Product Performance:
TID POWER Composite Insulator Advantage:
We adopt advanced injection producing technology for housing and shed design adopt unique aerodynamics principle.
Good Raw material :
Special marking design:
Excellent Manufacturing Technology:
Double Seal End Part Design Good Hydrophobicity Performance

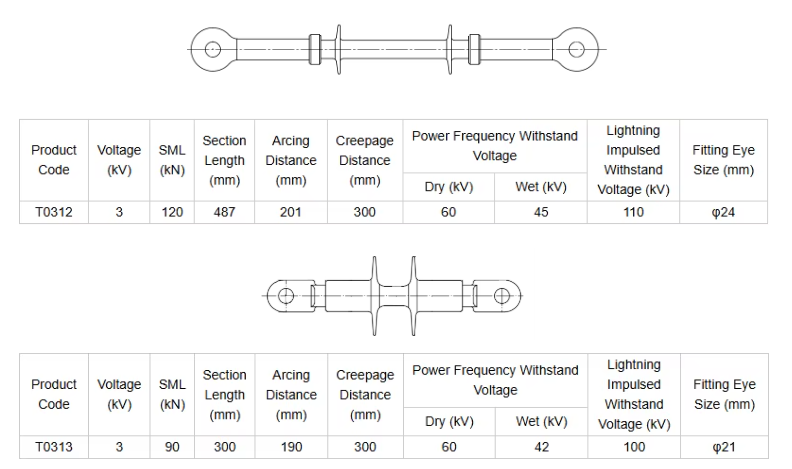

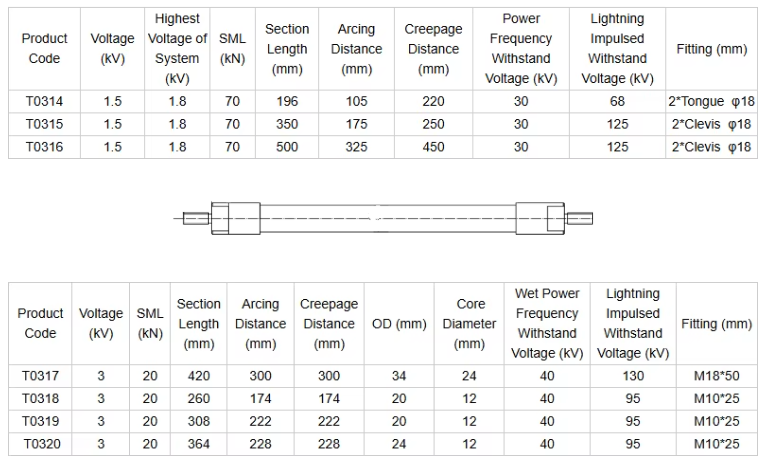

Product Specification:

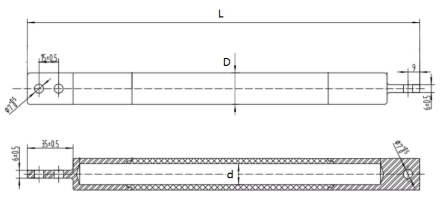

| Product Code | Voltage (kV) | SML (kN) | Section Length (mm) | Arcing Distance (mm) | Creepage Distance (mm) | D (mm) | d (mm) | Wet Power Frequency Withstand Voltage (kV) | Lightning Impulsed Withstand Voltage (kV) | Fitting (mm) |
| T0321 | 3 | 30 | 300 | 150 | 150 | 24 | 16 | 30 | 55 | As drawing |
| Product Code | Voltage (kV) | SML (kN) | Section Length (mm) | Arcing Distance (mm) | Creepage Distance (mm) | Power Frequency Withstand Voltage | Lightning Impulsed Withstand Voltage (kV) | Stud Fitting Size (mm) | Fitting Eye Size (mm) | |
| Dry (kV) | Wet (kV) | |||||||||

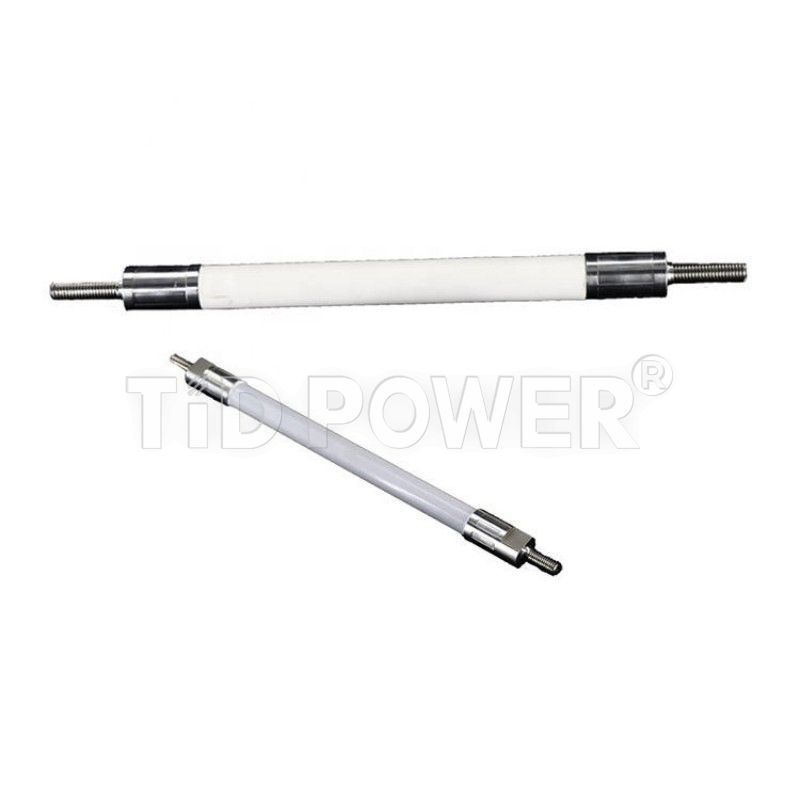

| T0322 | 3 | 10 | 120 | 88 | 400 | 30 | 24 | 50 | M14*35 | φ13 |
Company Information
1. Economic Packing desgin which will save your transportation cost.
2. Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble when you pick up the goods from the local customs.
1.Is your company a manufacturer or a trader?
* We are the manufacture, 15 years production experience;
* Our factory has passed ROSH, SGS, etc;
* Standard: IEC standard;
* Quality control: passed the ISO9001.
2.Do you have export experience?
* More than 10 years export experience.
*TID products have been exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, USA, Costa rica ,Brazil etc.
3.How to choose products?
*Standard products: Please select standard code according to the above reference file;
*Customized product: please tell us your requirements. We have a professional research and development team that provides strong technical support to meet your customized requirements.
4.Productive capacity?
*216,000 pcs per year.
5.Delivery time?
*Samples: 3-7 days; order: 30 days or according to the order quantity.
6.Do you accept OEM/ODM?
* Yes, we have several customer ask OEM/ODM, we'll do what you tell us!
