Product Description

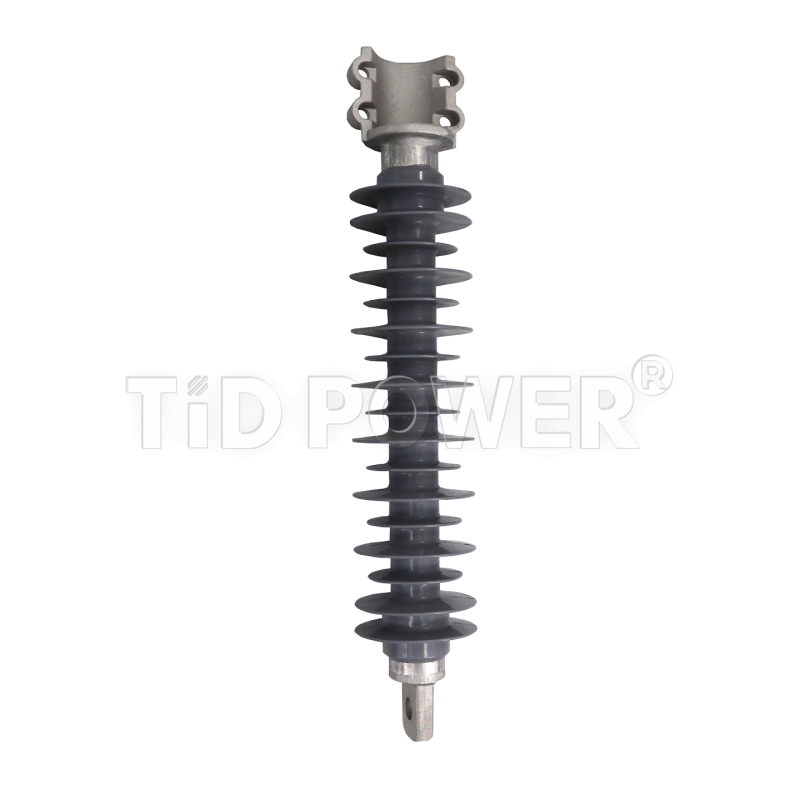

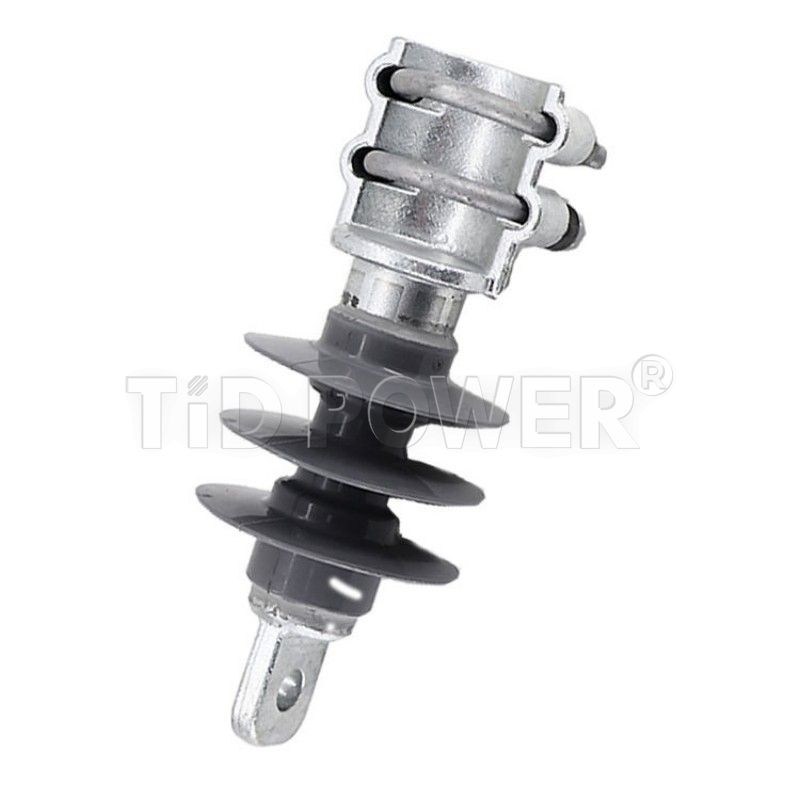

Silicone Rubber Cross Arm Insulator
Product Character:
The product is applicable for the electrified railway tunnel in complex environment, which can effectively prevent pollution flashover and reduce cleaning and maintenance.The composite cross arm insulator is small, so that it can not be replaced by porcelain or class insulator in the small space place.

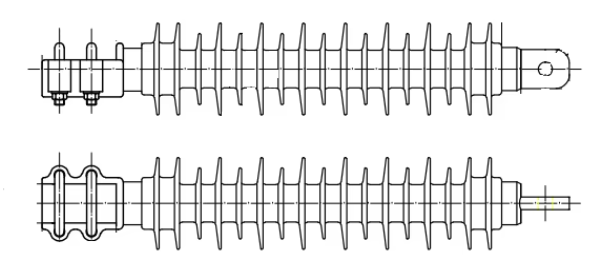

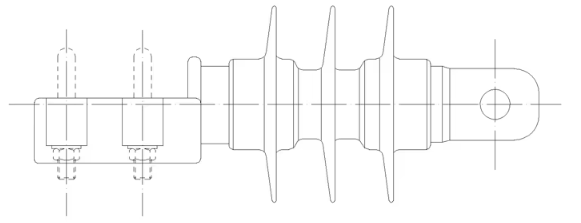

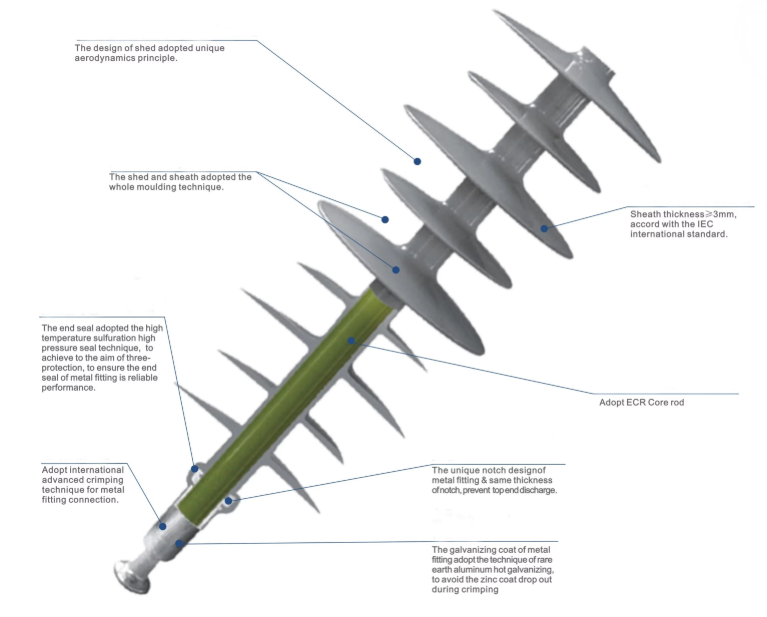

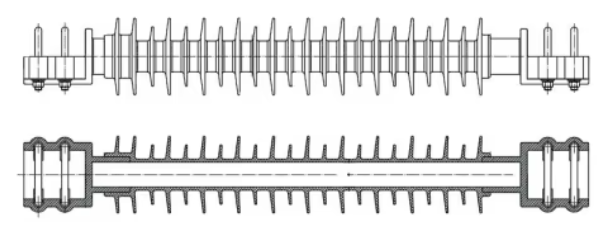

Product Structure:

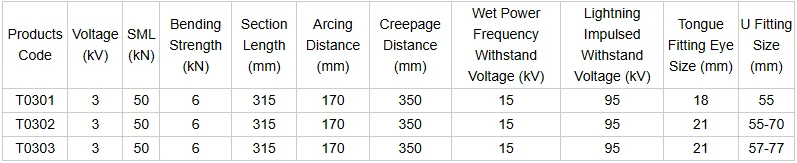

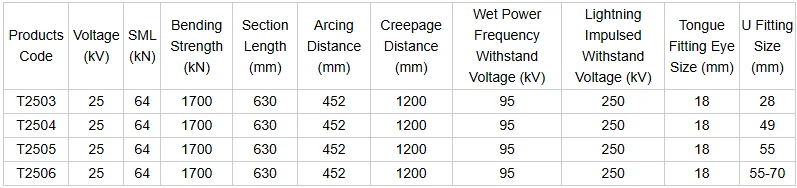

Product Performance:
| Products Code | Voltage (kV) | SML (kN) | Bending Strength (kN) | Section Length (mm) | Arcing Distance (mm) | Creepage Distance (mm) | Wet Power Frequency Withstand Voltage (kV) | Lightning Impulsed Withstand Voltage (kV) | U Fitting Size (mm) | U Fitting Size (mm) |
| T2507 | 25 | 80 | 1700 | 855 | 470 | 1600 | 125 | 260 | 55-70 | 55-70 |
| Products Code | Voltage (kV) | Highest Voltage of System (kV) | SML (kN) | Bending Strength (kN) | Section Length (mm) | Steel Pipe Dimension (mm) | Arcing Distance (mm) | Creepage Distance (mm) | Power Frequency Withstand Voltage | Lightning Impulsed Withstand Voltage (kV) | |
| Dry (kV) | Wet (kV) | ||||||||||
| T0304 | 1.5 | 1.8 | 70 | 4.5 | 1000 | φ42*576 | 145 | 250 | 60 | 30 | 125 |
| Products Code | Voltage (kV) | SML (kN) | Section Length (mm) | Arcing Distance (mm) | Creepage Distance (mm) | D (mm) | d (mm) | Wet Power Frequency Withstand Voltage (kV) | Lightning Impulsed Withstand Voltage (kV) | Fitting (mm) |
| T0505 | 3 | 10 | 1580 | 1100 | 1000 | 46 | 38 | 125 | 250 | Cap |
1. Economic Packing desgin which will save your transportation cost.
2. Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble when you pick up the goods from the local customs.
1.Is your company a manufacturer or a trader?
* We are the manufacture, 15 years production experience;
* our factory has passed ROSH, SGS, etc;
* Standard: IEC standard;
* Have own quality control.
2.Do you have export experience?
* More than 10 years export experience.
*TID products have been exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, USA, Costa rica ,Brazil etc.
3.How to choose products?
*Standard products: Please select standard code according to the above reference file;
*Customized product: please tell us
**Special material requirements; **Fitting model and mark ; ** Voltage;
**Tensile or Bending strength; **Creepage distance or pollution level;
**Structural height or electrical performance.
4.Productive capacity?
*216,000 PCS per year.
