Composite Insulators are composed of FRP rod silicone rubber shed and metal fitting. We use the complete injection technology to solve the problem of interface electric puncture which highly affect the reliability of composite insulator. To connect the fitting and the core rod, we adopt the crimping technology. We have full automatic soundwave detection testing system.
Product Description

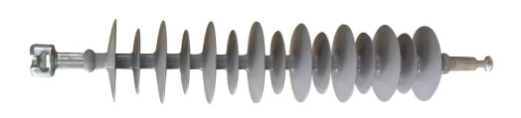

Distribution Silicone Dead End/Suspension Insulator

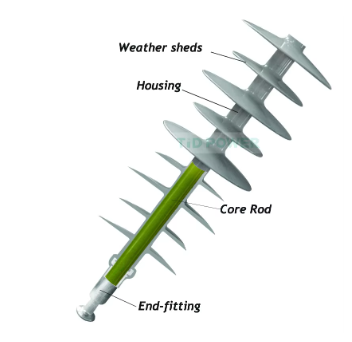

Product Structure:
Composite Insulators are composed of FRP rod silicone rubber shed and metal fitting. We use the complete injection technology to solve the problem of interface electric puncture which highly affect the reliability of composite insulator. To connect the fitting and the core rod, we adopt the crimping technology. We have full automatic soundwave detection testing system.
Product Performance:
TID POWER Composite Insulator Advantage:
We adopt advanced injection producing technology for housing and shed design adopt unique aerodynamics principle.
Good Raw material :
Special marking design:
Excellent Manufacturing Technology:
Double Seal End Part Design Good Hydrophobicity Performance

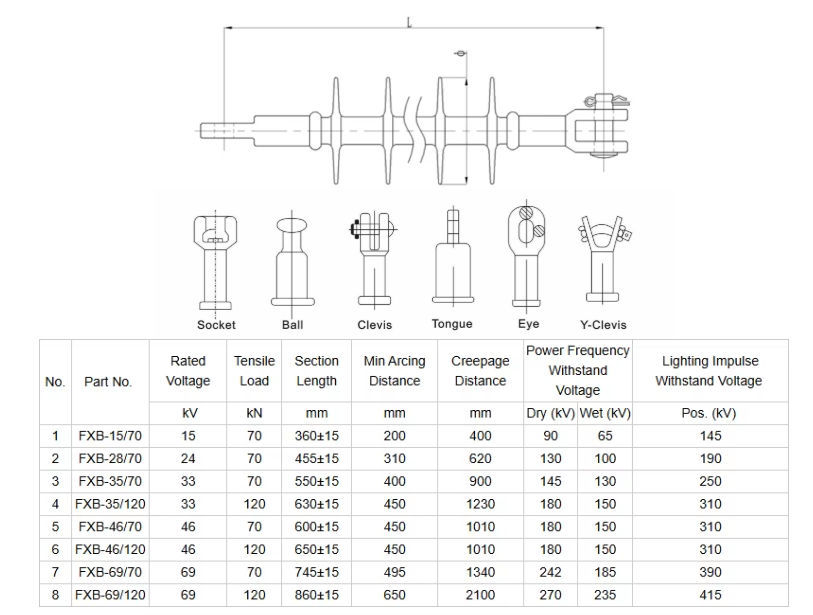

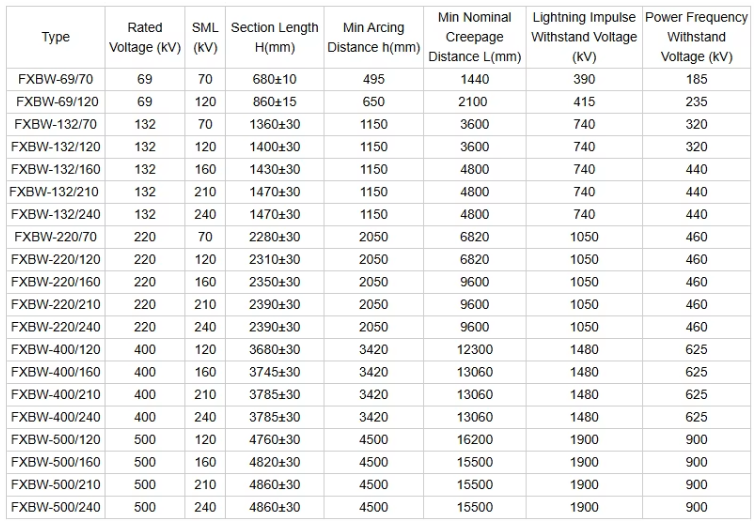

Product Specification:
Note:
1. Applied standard:IEC61109.

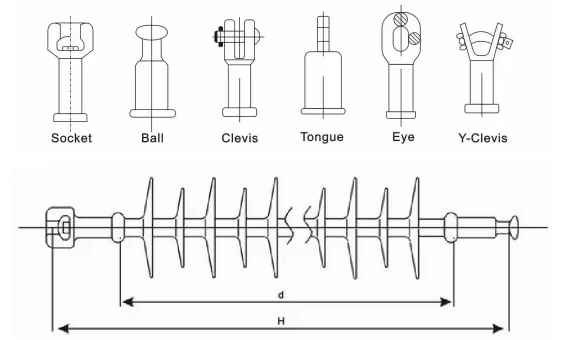

2. Please select the fitting type when you order. The insulator info in the table based on the type with Tongue & Clevis fittings.The section length maybe a little changed when change the fitting type, the insulator exactly drawing and detail info you need,please contact with our sales.
3.We suggest that you chose the arcing ring when the insulator above 132kV.
Product Application:
The product can be widely used in HV transmission lines, applicable for all area of different pollution level.
 |
 |
Certification:
Workshop:
Packing and Delivery:
1. Economic Packing desgin which will save your transportation cost.
2. Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble when you pick up the goods from the local customs.
