High Voltage Induction Detector / Electric Security Tester
| Place of Origin | CN;SHA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001:2008 |
| Model Number | 593001 |
| Minimum Order Quantity | 10.0 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement. |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | High Voltage | Certificate | ISO 9001:2008 |
|---|---|---|---|
| Stick Material | Fiberglass | Protection Level | IP 65 |
| Color | Yellow,red,customized | Standard | IEC 60855 |
| High Light | Induction Detector Hot Line Tester IP65,Hot Line Tester High Voltage,IP65 High Voltage Line Inspection Electric |
||
Product Description
High Voltage Induction Detector / Electric Security Tester
Product:
1.Character of High Voltage Induction Detector / Electric Security Tester
Used for on-site high-voltage line inspection , identification of high-voltage system voltage level , inspection of high-voltage line faults , repair of neon lights , high- pressure sodium lamps , inspection of induced voltage , inspection of residual high voltage or induced voltage , etc.
2. Characteristic of High Voltage Induction Detector / Electric Security Tester
*Adopting non-contact induction technology , no need to touch the charged body , ensuring the safety of the operator .
*Bright red LED and harsh buzzer sound and light alarm , easy to identify .
*9 voltage levels cover various voltage levels . The voltage level can be customized according to user needs .
4 . The self-check function ensures the accuracy of the electric test .
Test voltage level and Gear
| Type | Gear |
| 593001 | OFF--TEST--380V--6.6KV--10KV--35KV--66KV--110KV--220KV--330KV--500KV |
| 593002 | OFF--TEST--240V--3.3KV--6KV--11KV--22KV--33KV--66KV--132KV--275KV |
Technical Data Sheet
| Features | On-site high-voltage inspection, identify high-voltage system voltage levels, inspect high-voltage line faults, repair neon lamp induced voltage, check residual high voltage or induced voltage, etc. |
| Power | Zinc-manganese dry battery 6F22, 9V |
| Voltage Gear | 9 Gear |
| Votlage Range | 1 10V ~ 500KV ( TID1820 ) 1 10V ~ 275KV ( TID1820B ) |
| Electrical inspection instructions | Red double flashing LED indicator |
| Beep-beep-beep" beep | |
| Self-check function | Turn the knob to the "TEST" gear, the indicator light is on, and the buzzer "beep -" |
| Low battery voltage indication | When the detector battery voltage drops below 7.2V ± 0.1V, the LED indicator flashes slowly to remind you to replace the battery. |
| Protection level | IP65 |
| Instrument weight |
Instrument: 520g (including battery); total mass of packaging and insulating rod: about 4.6kg |
| Instrument size | 300mm ×273mm ×85mm |
| Insulation rod length | Maximum diameter: Φ 38mm; length: 1000mm in contracted state; 4500mm in extended state |
| Insulation test |
Both ends of the insulating rod after stretching: AC 220kV/rms Receiver, detector: AC3700V/rms (between exposed metal and plastic housing) |
| Working temperature and humidity | -10℃ ~ 40℃； 80%rh blow. |
| Storage temperature and humidity | -10℃ ~ 60℃； 70%rh below |

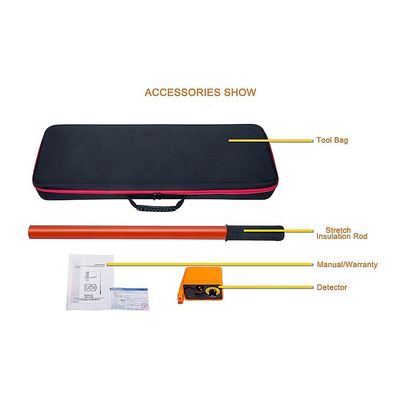

| Random accessories | Detector: 1 piece, telescopic insulating rod: 1 piece, battery 9V6F66: 1 section, tool kit: 1 piece |
The pictures of High Voltage Induction Detector / Electric Security Tester
FAQ:
1. Are you a manufacturer or a trader?
* We are the manufacturer, 15 years of production experience;
* The factory has passed ROSH, SGS certification;
* Standard :IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years working experience in export.
* Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to the above reference documents;
* Custom products: Please tell us
** Special material requirements;
** Fitting model and mark;
* * voltage;
Choose us, we will provide you with a full range of technical services!
