High Voltage Polymer Fuse Circuit Breaker / Composite Drop Fuse Cutout

Place of Origin CN;SHAAN XI
Brand Name TID POWER
Certification ISO9001/CCPIT
Model Number HRW
Minimum Order Quantity 100.0 Piece/Pieces
Price Negotiate
Packaging Details Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film
Payment Terms L/C , T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Shaan Xi, China Application Protective Device
Safety Standards IEC Product Name Fuse Cutout
Rated Voltage 40.5KV Parts Insulation Base (or Support Component), Contacts, Melt
High Light

High Voltage Fuse Circuit Breaker

,

Ceramic Drop Out Fuse Cutout

,

Polymer Drop Out Fuse Cutout

Product Description

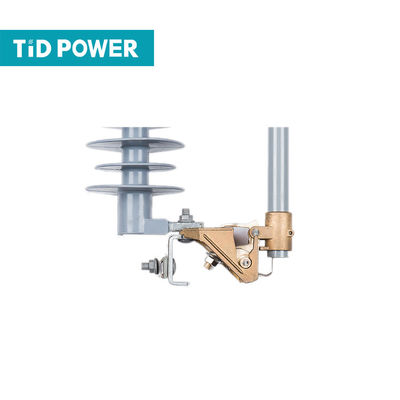

High Voltage Polymer Fuse Circuit Breaker / Composite Drop Fuse Cutout



Product:

1. The features of High Voltage Polymer Fuse Circuit Breaker / Composite Drop Fuse Cutout

The fuse is mainly composed of three parts: the melt, the shell, and the support, among which the melt is a key component that controls the fusing characteristics. The material, size, and shape of the melt determine the fusing characteristics. Melt materials are divided into two categories: low melting point and high melting point. Low melting point materials such as lead and lead alloys have a low melting point and are prone to melting. Due to their high electrical resistivity, the cross-sectional size of the melt produced is larger, and the metal vapor generated during melting is more. They are only suitable for fuses with low breaking capacity. High melting point materials such as copper and silver have a high melting point and are not easy to fuse. However, due to their low electrical resistivity, they can be made into smaller cross-sectional sizes than low melting point melts. They produce less metal vapor during melting and are suitable for fuses with high breaking capacity. The shape of the melt can be divided into two types: filamentous and banded. Changing the shape of the variable cross-section can significantly change the fusing characteristics of the fuse. Fuses have various different fusing characteristic curves, which can be suitable for the needs of different types of protection objects.



2. The technical parameter of High Voltage Polymer Fuse Circuit Breaker / Composite Drop Fuse Cutout

HRW5-40.5kV Cutout Fuse



Product Model HRW5-40.5/100 HRW5-40.5/200
Rated Voltage(kV) 40.5 40.5
Rated Cutrent(A) 100 200
Breaking Current(VA),Up limit 400 800
Breaking Current(VA),Down limit 10 30
P.F. Dry Withstand Voltage(kV) 105 105
P.F. Wet Withstand Voltage(kV) 185

185

Allowed temperature rise except fuse live parts 60              60





High Voltage Polymer Fuse Circuit Breaker / Composite Drop Fuse Cutout 0




3. Good Raw material

  • We use HTV silicone rubber which hydrophobicity can reach to HC1 level

  • We use hot dip Galvanizing steel fitting ,the thickness of the zinc more than 100 μm

  • We use ECR rod as the core which is high acid resistant. 7200Hr testing passed.
