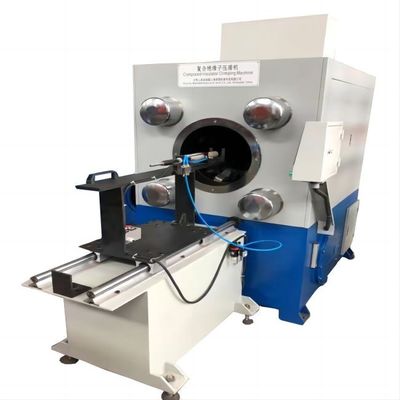

Computer Controlled Insulator Crimping Machine Insulator Crimper Fittings Rods
| Place of Origin | SHAAN XI, CHINA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001 |
| Model Number | / |
| Minimum Order Quantity | 1 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film |
| Payment Terms | L/C T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | TID POWER | Applicable Industries | Manafacture The Composite Insulators |
|---|---|---|---|
| Port | Shanghai Or Other Port In China | Origin | Shaan Xi, China |
| Automatic | Yes | Machine Type | Hydraulic |
| High Light | Computer Controlled Insulator Crimping Machine,Insulator Crimping Machine ISO,Insulator Crimper Fittings Rods |
||
Product Description
The Computer-Controlled Crimping Machine For Crimping Fittings And Glass Fiber Rods
Product introduction
Insulator crimping machine is mainly used to tightly crimp glass core rod and metal joint through hydraulic machinery, corresponding mold and high voltage. Its scope of application:
1.post insulator and crossarms insulator with flange diameter of 300mm and below,
2.suspension insulator with flange diameter of 530kN and below.
More displays
Technical Parameters
| Type | LCP6000 |
| Max. Crimping force(kN) | 6000 |
| Max. Working pressure (Mpa) | 25 |
| Dia. Of center hole (mm) | Ø220 |
| Max.flange dia (mm) | Ø300 |
| Max.crimping dia (mm) | Ø160 |
| Outside dia. Of die (mm) | Ø220 |
| Max.L.of dies (mm) | 90 |
| Opening (mm) | Outer diameter of fittings+200 |
| Moving forward speed (mm/S) | 19.4 |
| Moving back speed (mm/S) | 26 |
| Crimping time (S) | ≤7 |
| L×W×H (mm) | 1430x1050x2130 |
| Weight(T) | 3.3 |
| Working pattern | Manual, Auto, Foot switch |
| Control pattern | Pressure, Bit shift value |
| Display | Touch screen |
| Automatic greasing device | Yes |
| Power(KW) | 4 |
| Volume of oil tank(L) | 220 |
Crimping machine and Spare Parts
| Item | Description | Specification | Quantity |
| 1 | Crimp Connection Machine | LCP6000 | 1 set |
| Suitable for insulators | 80KN,120KN,160KN,210KN loading | 4 sets | |
| 2 | Spare Parts for CCM | ||
| 2.1 | Master Die-block Spring |
Dia. of Spring Ø23.5mm Dia. of Wire: Ø3.5mm Length:104mm |
16 pcs |
| 2.3 | Sealing Element | ||
| 2.4 | Combination Filler Ring | JB982-77 10 | 1 pc |
| 2.5 | Combination Filler Ring | JB982-77 14 | 6 pcs |
| 2.6 | Combination Filler Ring | JB982-77 18 | 10 pcs |
| 2.7 | Combination Filler Ring | JB982-77 20 | 1 pc |
| 2.8 | Combination Filler Ring | JB982-77 22 | 3 pcs |
| 2.9 | Combination Filler Ring | JB982-77 27 | 2 pcs |
| 2.10 | Combination Filler Ring | JB982-77 33 | 1 pc |
| 2.11 | Combination Filler Ring | JB982-77 48 | 1 pc |
| 2.12 | O-Ring | GB1235-76 11×1.9 | 1 pc |
| 2.13 | O-Ring | GB1235-76 16×2.4 | 6 pcs |
| 2.14 | O-Ring | GB1235-76 16×2.4 | 10 pcs |
| 2.15 | O-Ring | GB1235-76 20×2.4 | 3 pcs |
| 2.16 | O-Ring | GB1235-76 24×2.4 | 2 pcs |
| 2.17 | O-Ring | GB1235-76 30×3.1 | 1 pc |
| 2.18 | Fuse | ||
| 2.19 | Fuse holder | RT28-32 | 5 pcs |
| 2.20 | Glass Tube Fuse | RT28-32 2A | 1 pc |
| 2.21 | Glass Tube Fuse | RT28-32 6A | 4 pcs |
| 3 | New Content | ||
| 3.1 |
Part of electrical units or electronics should be Schneider Brand
|
||
| 3.2 | Hydraulic oil tank (water cooler is not required for equipment) | 1 pc | |
| 3.3 | Acoustic emission probe | 1 pc | |
| 3.4 | Automatic lubricating oil injector | 1 pc | |
| 3.3 | Displacement sensor | 1 pc | |
| 3.4 | Pressure sensor | 1 pc | |
| 3.5 | Foot switch | 1 pc | |
Company information
TID POWER, who located in Weinan city where near the high voltage transmission and distribution products center of Xi’an city, was founded in 1998. TID Power products include live line tools for transmission line and distribution line.
TID Power attach great importance to technical innovation, we are glad to develop new products with our partner customers.we specialized foam filled fiberglass tubes for live line tools, GRP rods for railway catenary system and square tubes for the cross arm.
TID Power is ISO 9001 qualified company. In order to ensure the quality, TID Power well supervise the raw material, the process and the finished products. TID Power make the main raw material of the products by ourselves, so we can control the raw material quality well.
We have our own laboratory which was built according to IEC standard. TID Power always take the products quality as the life of the company.
TID Power products have already supplied to more than 30 countries and regions. include America, Germany, Switzerland, Spain, French, Chile, Vietnam, Indonesia, Egypt, Morocco and so on.
