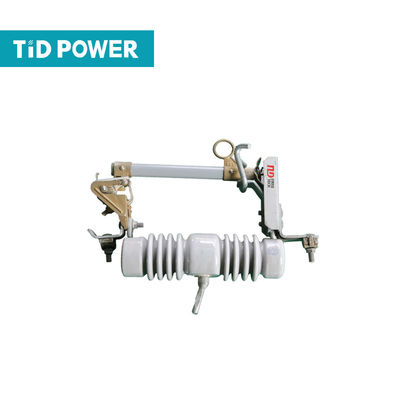

High Voltage Polymer Fuse Cut Out / 35 kV Drop Fuse Cutout
| Brand Name | TID POWER |
|---|---|
| Certification | ISO9001/CCPIT |
| Model Number | HRW |
| Minimum Order Quantity | 100.0 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film |
| Payment Terms | L/C , T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Shaan Xi, China | Application | Hige Voltage |
|---|---|---|---|
| Safety Standards | IEC | Product Name | Fuse Cutout |
| Rated Voltage | 35 KV | Rated Current | 100A, 200A |
| Brand Name | TID POWER | ||
| High Light | 35kv Polymer Fuse Cut Off,35kv Ceramic Drop Out Fuse Cutout |
||
Product Description
High Quality Fuse Cut Out 35KV 24KV 15KV Polymer OR Drop Out Fuse Cutout
Product:
1. The features of the high quality fuse cut out 35kv polymer or drop out fuse cutout
The fuse cutout is a type of overcurrent protector, mainly composed of parts such as melt and fuse tube, as well as external fillers. When the current of the protected circuit exceeds the specified value, the heat generated by the melt itself fuses the melt, causing the circuit to disconnect and thus providing protection. An electrical appliance that uses the heat generated by itself to fuse the melt and disconnect the circuit.
The rated current of the fuse's melt is not equal to the rated current of the fuse. The rated current of the melt is selected based on the load current of the protected equipment. The rated current of the fuse should be greater than the rated current of the melt and determined in coordination with the main electrical appliance. The fuse is mainly composed of three parts: the melt, the shell, and the support, among which the melt is a key component that controls the fusing characteristics. The material, size, and shape of the melt determine the fusing characteristics. Melt materials are divided into two categories: low melting point and high melting point. A fuse has an 'ampere second characteristic', which is simply understood as the time required for the melt to fuse is shorter when the current is high. When the current is low, the time required for the melt to fuse is longer.
Even if the rate of heat accumulation is less than the rate of heat diffusion, the temperature of the fuse will not rise to the melting point, and the fuse will not even blow. So, within a certain overload current range, when the current returns to normal, the fuse will not blow and can continue to be used.
2. The technical parameter of the high quality fuse cut out 10kv polymer or drop out fuse cutout
| Product Model | HRW5-35/100 | HRW5-35/200 |
| Rated Voltage(kV) | 35 | 35 |
| Rated Cutrent(A) | 100 | 200 |
| Breaking Current(VA),Up limit | 400 | 800 |
| Breaking Current(VA),Down limit | Down limit 10 | Down limit 30 |
| P.F. Dry Withstand Voltage(kV) | 105 | 105 |
| P.F. Wet Withstand Voltage(kV) | 185 |
185 |
| Allowed temperature rise except fuse live parts | 60 | 60 |
3. Good Raw material
-
We use HTV silicone rubber which hydrophobicity can reach to HC1 level
-
We use hot dip Galvanizing steel fitting ,the thickness of the zinc more than 100 μm
-
We use ECR rod as the core which is high acid resistant. 7200Hr testing passed.
4. Our service:
-
Free sample available
-
24 hours on-line service
-
Timely delivery
-
Free technical support
-
Long term after-sales service
