Tramway GRP Rod Catenary GRP Products For Railway And Subway

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001
Model Number THCR
Minimum Order Quantity 100. 0 Meter/Meters
Price Negotiate
Packaging Details Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film
Payment Terms L/C Western Union D/P D/A T/T MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
High Light

Tramway GRP Rod ISO9001


Catenary GRP Products rod


GRP Rod For Railway ISO9001

Leave a Message
Product Description

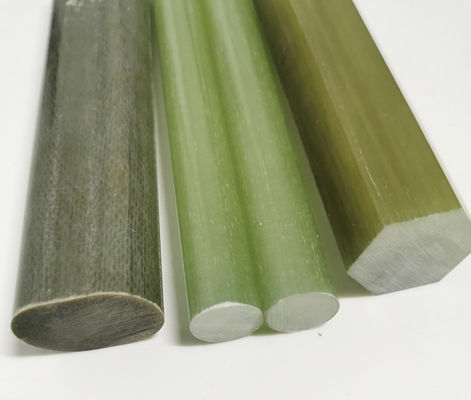

GRP Tramway Rod Catenary GRP Products For Railway And Subway


GRP catenary products refer to the components used in the construction of catenary systems for

electrified railways or tramways. "GRP" stands for Glass Reinforced Plastic,which is a composite

material made of a plastic matrix reinforced with glass fibers.


1.Material: GF-EP, UV Resistance;

2.Environment Temperature: -50℃ to +80℃;

3.Technical Character:


No. Description of Character Value
1 Density ≥ 2.1g/cm³
2 Fiberglass Content ≥ 78%
3 Water Absorption ≤0.5%
4 Ambient temperature -50 °C to +80 °C
5 Tensile Strength ≥550N/mm2
6 Bending Strength ≥500N/mm2
7 Compressive Strength ≥400N/mm2
8 Elastic modulus ≥40000N/mm2
9 Coefficient of linear thermal expansion(1/℃) 10×10-6


1. Dimension:








1 Round Rod Φ10 ±0.20 0.16 Orange, Grey, Olive or customized
2 Round Rod Φ26 ±0.20 1.10 Orange, Grey, Olive or customized
3 Round Rod Φ38 ±0.20 2.30 Orange, Grey, Olive or customized
4 Round Rod Φ42 ±0.20 3.05 Orange, Grey, Olive or customized
5 Round Rod Φ55 ±0.20 4.90 Orange, Grey, Olive or customized
6 Oval Rod 23×33 ±0.20 1.28 Orange, Grey, Olive or customized
7 We accept customized diameter ,length and color







Product application in railway system


tramway (1)-.jpg


About Us

TID Power, who located in the high voltage transmission and distribution products center

of Xi’an city, was founded in 1998. We are professional and experienced in manufacturing insulators and live line tools for power line and railways.

TID Power products include Polymer insulator up to DC800kV and live line tools for transmission line and distribution line. Our railway Insulators include railway /tramway

polymer suspension/tension insulators 1.5KV,3kV and 25kV. railway /tramway polymer support insulators 1.5KV,3kV and 25kV. railway /tramway polymer cross arm insulators 3kV and 25kV, Loop Insulators for 1.5kV and 3kV, GRP rod, GRP tube and GRP foam filled tube for tramway catenary system.


TID Power attach great importance to technical innovation, we are glad to develop new products with our partner customers. The specialized patent products include loop insulators, foam filled fiberglass tubes for live line tools, GRP rods for railway catenary system.

TID Power is ISO 9001 qualified company. In order to ensure the quality, TID Power well supervise the raw material, the process and the finished products. TID Power make the main raw material of the products by ourselves, so we can control the raw material quality well.

We have our own laboratory which was built according to IEC standard. TID Power always

take the products quality as the life of the company.


TID Power products have already supplied to more than 30 countries and regions. include America, Germany, Switzerland, Spain, French, Chile, Vietnam, Indonesia, Egypt, Morocco

and so on.


4-iso.png5-iso.png 6-report.png 7-ce.png




Production Process



fiberglass tube.jpg

Company information




1.Is your company a manufacturer or a trader?

* We are the manufacture, 15 years production experience;

* our factory has passed ROSH, SGS, etc;

* Standard: IEC standard;

* Have own quality control.

2.Do you have export experience?

* More than 10 years export experience.

*TID products have been exported to Indonesia, Britain, Qatar, Romania, UAE, Egypt, USA, Costa rica ,Brazil etc.

3.How to choose products?

*Standard products: Please select standard code according to the above reference file;

*Customized product: please tell us

**Special material requirements; **Fitting model and mark ; ** Voltage;

**Bending strength; **Creepage distance or pollution level;

**Structural height or electrical performance.
