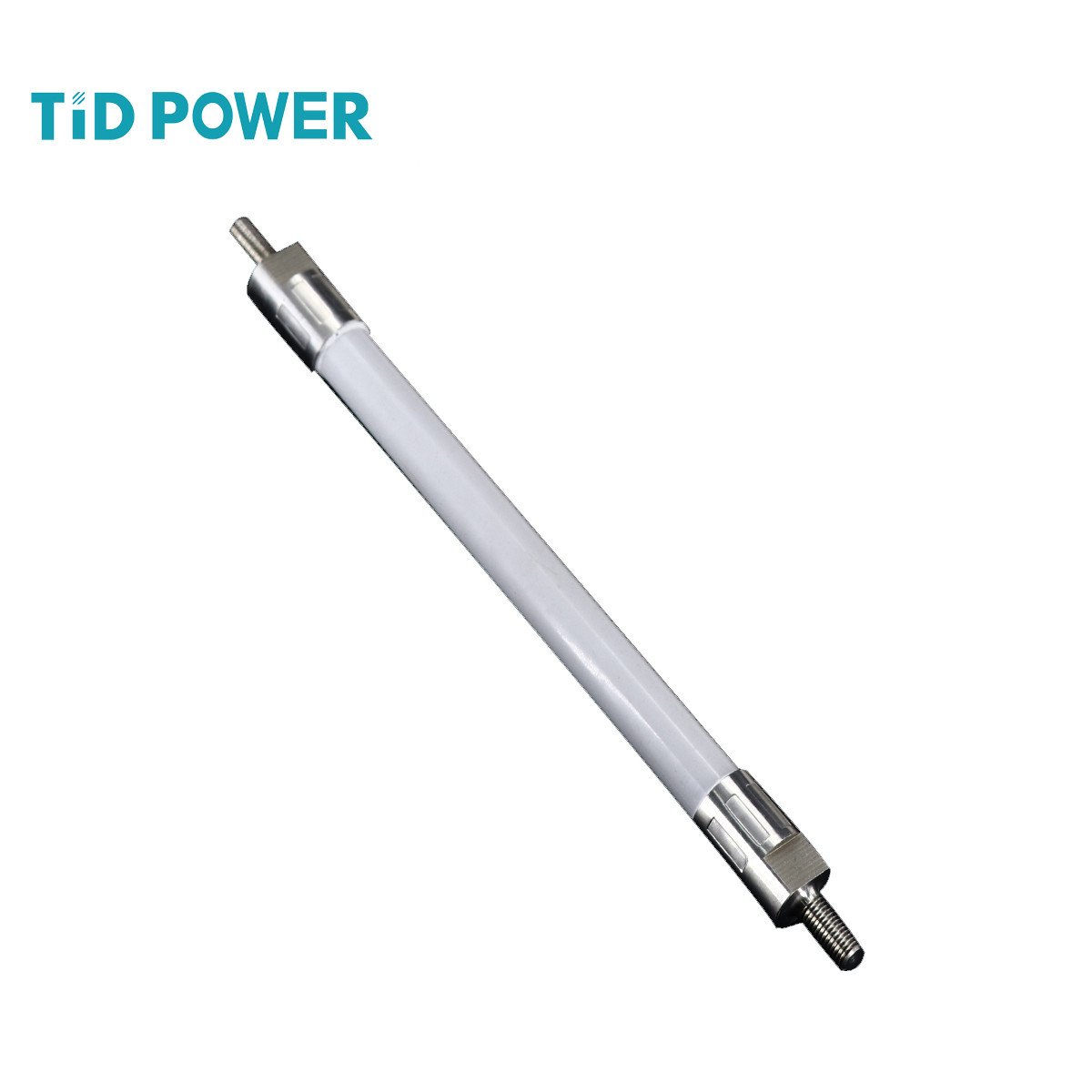

Suspension / Tension Silicone Rubber Coated Railway Insulator
| Place of Origin | CN;SHA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001 |
| Model Number | T0317 - 320 |
| Minimum Order Quantity | 100.0 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Grey, White, Or Customized | Material | Silicone Rubber, Fiberglass Rod |
|---|---|---|---|
| Name | Silicone Rubber Suspension (Tension) Insulator | Products Code | T0317, T0318, T0319, T0320 |
| Rated Voltage | 3 KV | Application | Tramway |
| High Light | Suspension Railway Insulator,Railway Insulator Tramway,Tramway Silicone Rubber Insulator |
||
Product Description
Suspension / Tension Silicone Rubber Coated Railway Insulator
Product:
1. Characteristics of Suspension / Tension Silicone Rubber Coated Railway Insulator
Silicone Rubber insulators are mainly used for insulation, connection and mechanical support between conductors of transmission and distribution lines and towers or other electrical components. Compared with porcelain insulators and glass insulators, silicone rubber insulators have the advantages of light weight, good hydrophobicity, and maintenance-free. In recent years, silicone rubber insulators have become more and more widely used in power transmission and distribution lines due to their significant advantages.
2. Parameter of Silicone Rubber Tramway Insulator Suspension (Tension) Insulator
|
Producs Code |
Voltage (kV) |
SML (kN) |
Section Length (mm) |
Arcing Distance (mm) |
Creepage Distance (mm) |
OD (mm) |
Core Diameter (mm) |
Wet Powe Frequengy Withstand Voltage(kN) |
Lightnng Impulsed Withstand Voltage(M) |
Fitting (mm) |
| T0317 | 3 | 120 | 420 | 300 | 300 | 34 | 24 | 40 | 130 | M18*50 |
| T0318 | 3 | 20 | 260 | 174 | 174 | 20 | 12 | 40 | 95 | M10*25 |
| T0319 | 3 | 20 | 308 | 222 | 222 | 20 | 12 | 40 | 95 | M10*25 |
| T0320 | 3 | 20 | 364 | 228 | 228 | 24 | 12 | 40 | 95 | M10*25 |
3. Product Details
FAQ
1. Are you a manufacturer or a trader?
* We are the manufacturer, 15 years of production experience;
* The factory has passed ROSH, SGS certification;
* Standard :IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years working experience in export.
* Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to the above reference documents;
* Custom products: Please tell us
** Special material requirements; ** Fitting model and mark; * * voltage;
** Tensile or bending strength; ** creepage distance or pollution level;
** Structural height or electrical performance.
4. Production capacity?
* 216,000 units per year.
