High Voltage Silicone Rubber Cross Arm Insulator
| Place of Origin | CN;SHA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001 |
| Model Number | T0301 - 0303 |
| Minimum Order Quantity | 100.0 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film |
| Payment Terms | L/C Western Union D/P D/A T/T MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Grey, Customized | Material | Silicone Rubber, Fiberglass Rod |
|---|---|---|---|
| Name | Railway Insulator | Products Code | T0301, T0302, T0303 |
| Application | Railway | Voltage | 3 KV |
| High Light | Silicone Rubber Tramway Insulator,Silicone Rubber Train Insulator,High Voltage Train Insulator |
||
Product Description

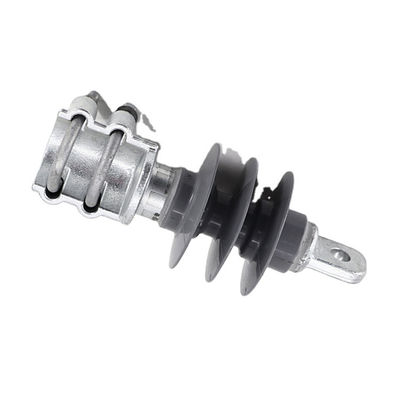

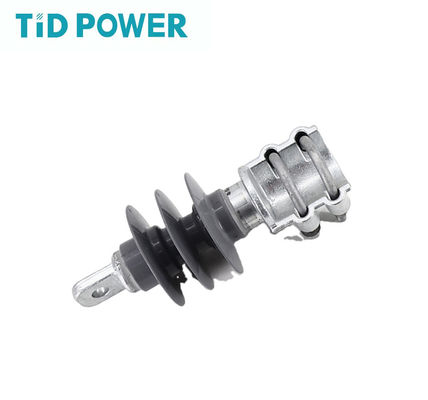

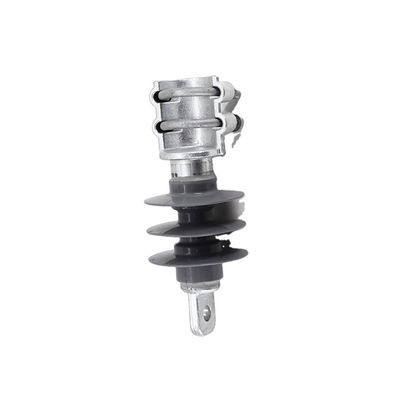

High Voltage Silicone Rubber Cross Arm Insulator
Product:
1. Characteristics of High Voltage Silicone Rubber Cross Arm Insulator
Composite insulators used in electrified railways have a compact structure, strong integrity, good anti pollution ability, light weight, small volume, good internal and external insulation performance, high mechanical strength, and no need for regular cleaning. They are mainly used in the construction of high-speed railways and urban light rail transportation, bringing great convenience to storage, transportation, installation, and maintenance.
Nicknames: railway insulators, electrified railway contact network components, composite insulators for electrified railways, composite insulators
Its supporting wrist arm adopts stainless steel composite material, which has better anti-corrosion performance and solves product corrosion under various climatic conditions such as humidity and acid rain. It can greatly extend the product's service life and provide reliable equipment for implementing compact line construction.
This product is suitable for electrified railway tunnels with complex operating conditions, effectively preventing pollution flashover accidents and reducing cleaning and maintenance workload. Due to its small size and low tunnel clearance, it is an irreplaceable product for porcelain and glass insulators.
2. Parameter Table of High Voltage Silicone Rubber Cross Arm Insulator
|
Products Code |
Voltage ( KV) |
SML (kN) |
Bending Stengh (kN) |
Section Length (mm) |
Arcing Distance (mm) |
Creepage Distanoe (mm) |
Wet Power Fequency Withstand Voltage(KV) |
Lighing Impulsed Withstand Voltage(kv) |
Tongue Fitting Eye Size (mm) |
U Fitting Sze (mm) |
| T0301 | 3 | 50 | 6 | 315 | 170 | 350 | 15 | 95 | 18 | 55 |
| T0302 | 3 | 50 | 6 | 315 | 170 | 350 | 15 | 95 | 21 | 55-70 |
| T0303 | 3 | 50 | 6 | 315 | 170 | 350 | 15 | 95 | 21 | 57-77 |
FAQ
1. Are you a manufacturer or a trader?
* We are the manufacturer, 15 years of production experience;
* The factory has passed ROSH, SGS certification;
* Standard :IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years working experience in export.
* Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to the above reference documents;
* Custom products: Please tell us
** Special material requirements; ** Fitting model and mark; * * voltage;
** Tensile or bending strength; ** creepage distance or pollution level;
** Structural height or electrical performance.
4. Production capacity?
* 216,000 units per year.
