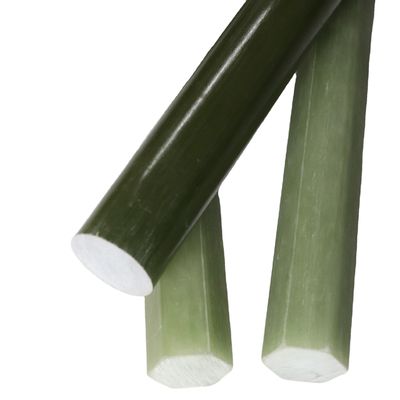

High Flexibility Epoxy Fiberglass Rod High Insulation Insulating Rod Epoxy Glass
Place of Origin | CN;SHAAN XI |
---|---|
Brand Name | TID POWER |
Certification | ISO9001:2008 |
Model Number | TECR |
Minimum Order Quantity | 100 Meter/Meters |
Price | Negotiate |
Packaging Details | suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement. |
Payment Terms | L/C , T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | White | Temperature | High Temperature Resistance |
---|---|---|---|
Chemical | High Chemical Resistance | Corrosion | Corrosion Resistant |
Diameter | Various Diameters | Impact | High Impact Resistance |
Length | Various Lengths | Fire | High Fire Resistance |
High Light | High Flexibility Epoxy Fiberglass Rod,Epoxy Fiberglass Rod High Insulation ISO9001,Insulating Rod Epoxy Glass ISO9001 |
Product Description:
Epoxy Fiberglass Rod is an advanced composite material consisting of epoxy resin and glass fiber, which is widely used in the production of composite insulators. It features high strength, high temperature resistance, high chemical resistance, and a smooth surface. Epoxy Fiberglass Rod is engineered to be a superior composite material compared to other fiberglass products, making it a reliable and cost-effective choice for various industrial applications. Moreover, the epoxy resin used in the production of this fiberglass rod adds additional strength and durability, as well as improved resistance to chemicals and extreme temperatures. Furthermore, the unique manufacturing process used in the production of Epoxy Fiberglass Rod ensures its smooth surface that helps reduce the risk of fatigue and potential failure. All these features make our Epoxy Fiberglass Rod one of the most reliable and cost-effective solutions for a variety of applications.
Features:
- Product Name: Epoxy Fiberglass Rod
- Material: ECR glass reinforced Epoxy resin
- Insulation: High Insulation Performance
- Length: According to customer requirement
- Surface: Smooth
- Electrical: High Electrical Properties with Epoxy Resin offering high voltage and anti-corrosive characteristics with a smooth surface
Technical Parameters:
No. | Technical specification | Unit | value |
1 | Density(20℃±2℃) | g/cm3 | ≥2.2 |
2 | Water absorption rate (20℃±2℃,24h) | % | ≤0.05 |
3 | Tensile strength | Mpa | ≥1200 |
4 | Bending strength | Mpa | ≥960 |
5 | Dye penetrated test | Min | ≥15 |
6 | Water diffusion test (1%NaCl, 100h 12kv/1min) | mA | ≤0.1 |
7 | Shearing strength along laminas | Mpa | ≥50 |
8 | Volume resistivity (140℃,96h) | Ω.M | ≥1010 |
9 | DC withstand voltage (10mm) | Kv | ≥50 |
10 | Lighting impulsed withstand voltage (100kv,10mm) | Times | ≥5 |
11 | Bending strength at heating conditions | Mpa/150℃ | ≥350 |
12 | Torsion strength | Mpa | ≥800 |
13 | Stress corrosion (1mol/1HNO3,at 67%stress) | h | 96 |
Applications:
TID POWER's Epoxy Fiberglass Rod is a great product for a variety of applications. It is made from a combination of epoxy resin and fiberglass, making it highly flexible and resistant to corrosion and chemicals. The epoxy fiberglass rod is available in white and can be customized in various lengths. It is certified by ISO9001:2008, with a minimum order quantity of 100 meters.
Customization:
Products Code | D(mm) | L (mm) | Weight (kg) | Products Code | D(mm) | L (mm) | Weight (kg) |
TECR00400 | Φ4 | 1000 | 0.028 | TECR03600 | φ36 | 1000 | 2.20 |
TECR00450 | Φ4.5 | 1000 | 0.035 | TECR03800 | φ38 | 1000 | 2.46 |
TECR00500 | Φ5 | 1000 | 0.05 | TECR04000 | φ40 | 1000 | 2.70 |
TECR00550 | Φ5.5 | 1000 | 0.052 | TECR04100 | φ41 | 1000 | 2.84 |
TECR00800 | Φ8 | 1000 | 0.11 | TECR04200 | Φ42 | 1000 | 2.99 |
TECR01000 | Φ10 | 1000 | 0.17 | TECR04500 | φ45 | 1000 | 3.42 |
TECR01200 | Φ12 | 1000 | 0.25 | TECR05000 | φ50 | 1000 | 4.28 |
TECR01600 | φ16 | 1000 | 0.44 | TECR05300 | φ53 | 1000 | 4.75 |
TECR01670 | Φ16.7 | 1000 | 0.49 | TECR05500 | φ55 | 1000 | 5.12 |
TECR01748 | Φ17.48 | 1000 | 0.53 | TECR06000 | φ60 | 1000 | 6.10 |
TECR01800 | φ18 | 1000 | 0.55 | TECR06350 | Φ63.5 | 1000 | 6.97 |
TECR02000 | φ20 | 1000 | 0.69 | TECR06800 | φ68 | 1000 | 7.96 |
TECR02200 | φ22 | 1000 | 0.83 | TECR07000 | φ70 | 1000 | 8.44 |
TECR02400 | φ24 | 1000 | 0.99 | TECR07620 | Φ76.2 | 1000 | 10.15 |
TECR02500 | φ25 | 1000 | 1.07 | TECR08000 | φ80 | 1000 | 10.90 |
TECR02600 | φ26 | 1000 | 1.14 | TECR09000 | φ90 | 1000 | 14.24 |
TECR02800 | φ28 | 1000 | 1.47 | TECR11000 | φ110 | 1000 | 21.36 |
TECR03000 | φ30 | 1000 | 1.53 | TECR12000 | Φ120 | 1000 | 24.87 |
TECR03200 | φ32 | 1000 | 1.76 | TECR13000 | Φ130 | 1000 | 29.65 |
TECR03400 | φ34 | 1000 | 1.97 |
Packing and Shipping:
Epoxy Fiberglass Rods must be packaged and shipped properly in order to ensure their quality and prevent damage. Here are some tips for packaging and shipping Epoxy Fiberglass Rods:
- The rods should be individually wrapped in plastic bags and placed in a rigid container.
- The container should be filled with a cushioning material such as foam or bubble wrap to protect the rods during transit.
- The package should be clearly labeled with the sender's contact information and a description of the product.
- The package should be securely sealed and shipped via a reliable shipping service.
