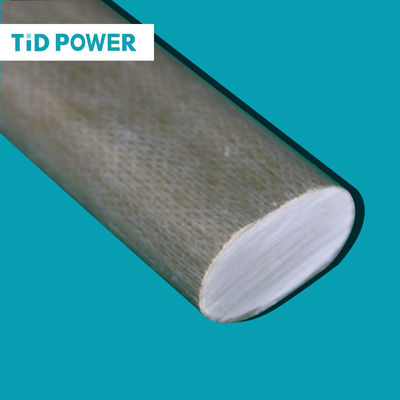

GF-EP GRP Catenary Products UV Resistance GRP Oval Rod
| Place of Origin | CN;SHAAN XI |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001:2008 |
| Model Number | / |
| Minimum Order Quantity | 100 Pieces |
| Price | Negotiate |
| Packaging Details | Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film |
| Delivery Time | 5-8 days |
| Payment Terms | L/C , T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Olive | Material | GF-EP,UV Resistance |
|---|---|---|---|
| Environment Temperature | -50 ℃ To +80 ℃ | Dimension | 23 *33 Mm |
| High Light | GF-EP GRP Catenary Products,GRP Catenary Products UV Resistance,UV Resistance GRP Round Rod |
||
Product Description
The features of GF-EP GRP Catenary Products UV Resistance GRP Oval Rod -50 ℃ to +80 ℃
TID Power railway products include railway /tramway
polymer suspension/tension insulators 1.5KV,3kV and 25kV.
railway /tramway polymer support insulators 1.5KV,3kV and 25kV.
railway /tramway polymer cross arm insulators 3kV and 25kV,
Loop Insulators for 1.5kV and 3kV,
GRP rod, GRP tube and GRP foam filled tube for tramway catenary system.
1.Material: GF-EP,UV Resistance;
2.Environment Temperature:-50 ℃ to +80 ℃;
3 Technical Character
| No. | Description of of Character | Value |
| 1 | Density | ≥2.1g/cm3 |
| 2 | Fiberglass Content | ≥78% |
| 3 | Water Absorption | ≤0.5% |
| 4 | Ambient temperature | -50°C to +80°C |
| 5 | Tensile Strength | ≥550N/mm² |
| 6 | Bending Strength | ≥500N/mm² |
| 7 | Compressive Strength | ≥400N/mm² |
| 8 | Elastic modulus | ≥40000Nmm² |
| 9 | Coefficient of linear thermal expansion(1/°C) | 10×10-6 |
1.Dimension of GRP Tramway Rod
| No. |
Diameter (mm) |
Tolerance (mm) |
Weight (kg/m) | Color |
| 1 | Round Rod φ10 | ±0.20 | 0.16 | Orange, Grey.Olive or customized |
| 2 | Round Rod φ26 | ±0.20 | 1.10 | Orange, Grey.Olive or customized |
| 3 | Round Rod φ38 | ±0.20 | 2.30 | Orange, Grey,Olive or customized |
| 4 | Round Rod φ42 | ±0.20 | 3.05 | Orange, Grey.Olive or customized |
| 5 | Round Rod φ55 | ±0.20 | 4.90 | Orange, Grey,Olive or customized |
| 6 | Oval Rod 23×33 | ±0.20 | 1.28 | Orange, Grey,Olive or customized |
| 7 | We accept customized diameter ,length and color | |||
FAQ
1.Is your company a manufacturer or a trader?
* We are the manufacture, 15 years production experience;
* our factory has passed ROSH, SGS, etc;
* Standard: IEC standard;
* Have own quality control.
2.Do you have export experience?
* More than 10 years export experience.
*TID products have been exported to Indonesia, Britain, Qatar, Romania, UAE, Egypt, USA, Costa rica ,Brazil etc.
3.How to choose products?
*Please tell us the Dimension, example length, thickness and purpose.
4.Delivery time?
*Samples: 5-8 days; order: 30 days or according to the order quantity.
5.Do you accept OEM/ODM?
* Yes, we have several customer ask OEM/ODM, we'll do what you tell us!
