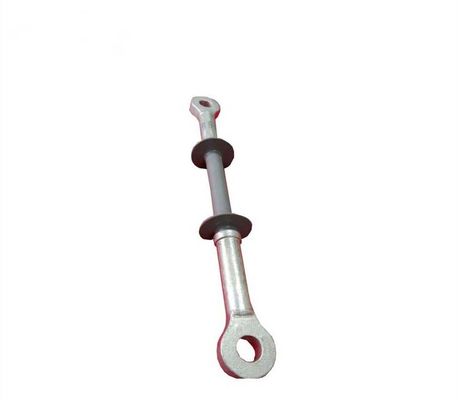

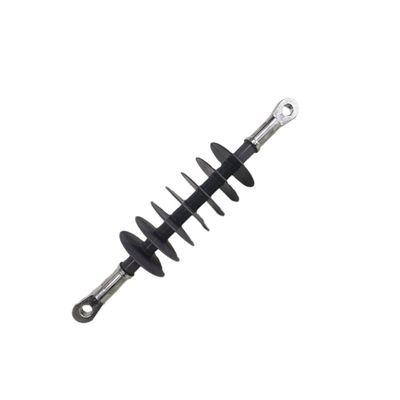

25Kv High Voltage Composite Suspension Railway Insulators
| Place of Origin | CN;SHA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001 |
| Model Number | T2515-T2517 |
| Minimum Order Quantity | 100.0 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | Suitable packing for export: Cartons/Wooden cases+Pallets+Wrapping Film |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Shaan Xi,China | Rated Voltage | 25 KV |
|---|---|---|---|
| Material | Rubber, Fiberglass Rod, Steel | Products Code | T 2515, T 2516, T 2517 |
| Brand Name | TID POWER | ||
| High Light | Overhead Transmission Line Composite Suspension Insulators,25Kv Composite Suspension Insulators,High Voltage Insulator 25Kv |
||
Product Description
25Kv High Voltage Composite Suspension Railway Insulators Insulators
The features of 25Kv High Voltage Composite Suspension Railway Insulators Insulators
1.The Composite Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.
2.The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem – interface electric spark puncture, which would affect the reliability of composite insulator.
3.Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level, and have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.
4.This product is reliable structure, can’t damage the core rod, and take full advantage of the mechanical strength.
|
Produds Code |
Voltage KV) |
SML (KN) |
Section Lengh (mm) |
Arcing Distance (mm) |
Creepage Distance (mm) |
Wet Power Frequency Wthstand Voltage(kV) |
Lighting Impulsed Withstand Voltage(kV) |
Top Fittng (mm) |
Bottom Fitting (mm) |
|
T2515 |
25 |
100 |
800± 20 |
570 |
1600 |
150 |
300 |
Tongue with hole φ21 |
Tongue with hole φ21 |
|
T2516 |
25 |
120 |
700± 10 |
414 |
1300 |
95 |
250 |
Tongue with hole φ20 |
Tongue with hole φ20 |
|
T2517 |
25 |
135 |
700±10 |
414 |
1200 |
125 |
270 |
Tongue with hole φ20 |
Tongue with hole φ20 |
Polymer Insulator Character
- Easy installation by light weight
- Excellent mechanical strength
- Excellent insulation in contaminated environment
- Good Hydrophobic Performance
Good Raw material
- We use HTV silicone rubber which hydrophobicity can reach to HC1 level
- We use hot dip Galvanizing steel fitting ,the thickness of the zinc more than 86 μm
- We use ECR rod as the core which is high acid resistant.
FAQ:
Q1. Are you a manufacturer or trading company?
A. Manufacturer
Q2. How do you make sure your good quality ?
A. We use the best raw material , and every single product will go through a series of strict test. and we are ISO certificate company.
Q3. Will you accept using customer's logo ?
A. Yes, we can offer OEM and ODM.
Q4. How about your delivery time?
A. Generally, it will take 30 days after receiving the advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery from our factory.
