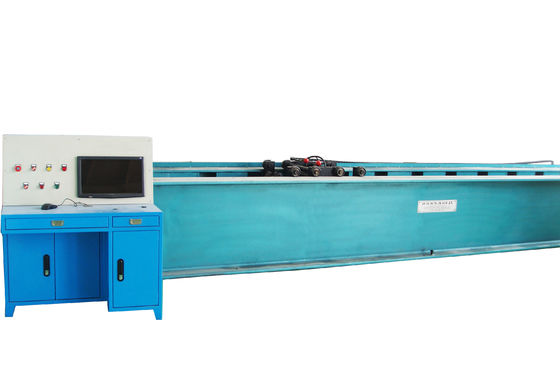

JSL500 Insulator Tensile Testing Machine Insulation Machines For Composite Insulators
| Place of Origin | CN;SHAAN XI |
|---|---|
| Brand Name | TID POWER |
| Certification | CE/ISO9001 |
| Model Number | JSL500 |
| Minimum Order Quantity | 1 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement. |
| Payment Terms | L/C , T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Tensile Load (kN) | 500 | LxWxH (mm) | 12600 X 1100 X 850 |
|---|---|---|---|
| Effective Width Of Equipment (mm) | 500±0.5 | Effective Stretching Length Of Equipment (mm) | 10000 Mm |
| Load Jack Spacing(mm) | 600 Mm | Display | Touch Screen |
| High Light | JSL500 Insulator Tensile Testing Machine,Insulator Tensile Testing Machine 500kn,Insulation Machines For Composite Insulators |
||
Product Description
Product Description of JSL500 Insulator Tensile Testing Machine Insulator Machine For Composite Insulators:
The horizontal tensile testing machine can test and analyze the mechanical properties of various metals, non-metals, and composite materials. Widely used in aerospace, petrochemical, mechanical manufacturing, wires, cables, textiles, fibers, plastics, rubber, ceramics, food, pharmaceutical packaging, aluminum plastic pipes, plastic doors and windows, geotextile, film, wood, paper, metal materials, and manufacturing industries, it can automatically calculate the maximum test force value, fracture force value, yield strength, upper and lower yield strength, tensile strength, and elongation at break according to GB, JIS, ASTM, DIN, ISO and other standards Test data such as tensile modulus of elasticity and bending modulus of elasticity.
Features of JSL500 Insulator Tensile Testing Machine Insulator Machine For Composite Insulators:
1. The horizontal tensile testing machine adopts a horizontal frame structure with a high rigidity and high stability load frame.
2. Pin through type spatial adjustment structure, high-strength and high-precision positioning pins, fast positioning.
3. Servo measurement and control system, automatic, manual, and constant load operation; There are various control methods such as load holding, stress-strain control, cyclic control, and self programming control.
4. High precision force measuring device, with wide linearity and good stability, ensures the accuracy of load measurement.
5. A uniquely designed placement, positioning, and adjustment mechanism.
6. Dual control bidirectional hydraulic cylinder, quick test, quick return.
7. Multiple protection functions: software and hardware two-level protection; Test force overload protection; Overcurrent and overvoltage protection; Hydraulic cylinder limit protection; Hydraulic system overload and overflow protection; Safety protection/protective net when the sample is broken; Operation prompt wizard protection; Automatic protection at the end of the experiment.
Technical Parameters of JSL500 Insulator Tensile Testing Machine Insulator Machine For Composite Insulators:
| Model | JSL500 | ||
| Max Tensile Load (kN) | 500 | ||
|
Dimension
|
LxWxH (mm) | 12600 X 1100 X 850 | |
| Effective width of equipment (mm) | 500±0.5 | ||
| Effective stretching length of equipment (mm) | 10000 | ||
| Load jack spacing(mm) | 600 | ||
|
Hydraulic system
|
Oil pump flow L/min |
Low pressure pump | 25 |
| High pressure pump | 2.5 | ||
| Oil pump maximum working pressure (Mpa ) | 20 | ||
|
Piston rod idle travel speed mm/S |
fast forward | 19 | |
| Rewind | 24 | ||
| Piston rod idle stroke mm | 620 | ||
| Motor function(kW) | low pressure pump | 3 | |
| High-pressure pump | 1.5 | ||
| Tank | Dimension: L×W×H (mm) | 690x 940x 690 | |
| Capacity (L) | 180 | ||
Applications of JSL500 Insulator Tensile Testing Machine Insulator Machine For Composite Insulators:
The horizontal tension testing machine for insulators is suitable for testing the tension and tensile strength of insulators, composite insulators, ceramic insulators, etc. The main machine adopts a frame structure with integral steel plate welding, and a single rod double acting piston cylinder applies test force through a reverse frame composed of a moving crossbeam pull rod and a front pull head. The sample is connected through a pin shaft, and high-precision load sensors measure the force. The stretching space of the rear pull head can be adjusted step by step according to the sample specifications and length. The rear pull head is adjusted by electric deceleration,and is manually fixed to both sides of the frame through pins. The test force and curve are displayed on a computer screen, Automatically process test data according to the requirements of the test method.
Support and Services:
Insulator Machine Technical Support and Service
At Insulator Machine, we are committed to providing our customers with the highest level of technical support and service. Our team of experienced engineers and technicians are available 24/7 to answer any questions and provide timely solutions to any issues.
We provide technical support and service in the following areas:
- Installation and setup
- Configuration and customization
- Troubleshooting and repairs
- Upgrades and maintenance
- Software and hardware support
- Data backup and recovery
If you need any assistance with your Insulator Machine product, please don't hesitate to contact us. We are here to help!
FAQ:
- Q: What is the brand name of the Insulator Machine?
A: The brand name of the Insulator Machine is TID POWER. - Q: What is the model number of the Insulator Machine?
A: The model number for the Insulator Machine is not specified. - Q: Where is the Insulator Machine manufactured?
A: The Insulator Machine is manufactured in China. - Q: Does the Insulator Machine have any certifications?
A: Yes, the Insulator Machine is certified with CE/ISO9001. - Q: What is the minimum order quantity for the Insulator Machine?
A: The minimum order quantity for the Insulator Machine is 1 Piece/Pieces.
