3kv Silicone Rubber Composite Suspension Insulator / Tramway Tension Insulator
| Place of Origin | CN;SHA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001 |
| Model Number | T0312, T0313 |
| Minimum Order Quantity | 100.0 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protection Performance | Good | Color | Gray |
|---|---|---|---|
| Material | Silicone Rubber | Rated Voltage | 3 KV |
| High Light | 3kv Silicone Rubber Composite Suspension Insulator,3kv Tension Insulator,Tramway Tension Insulator |
||
Product Description

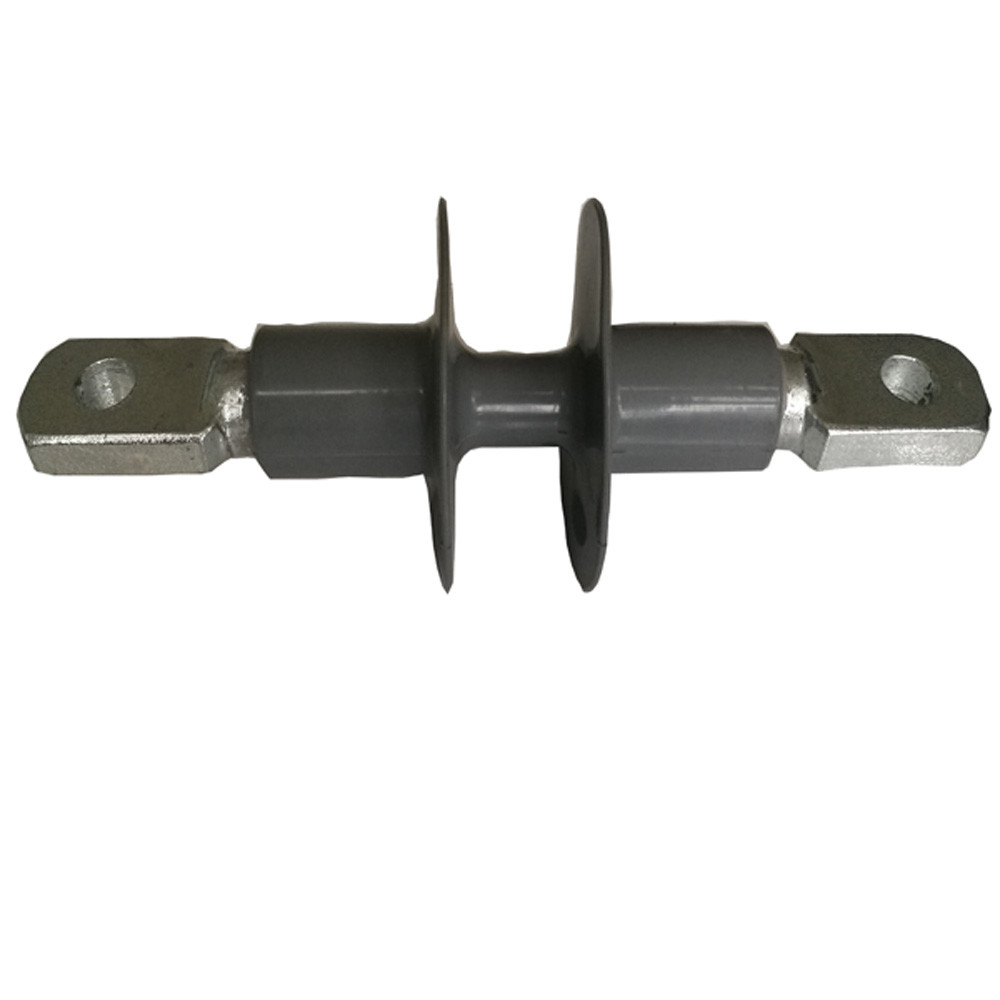

3kv Silicone Rubber Suspension Insulator/ Tramway Tension Insulator
product
1. Character of the 3kv Silicone Rubber Suspension Insulator /Tramway Tension Insulator
*Easy installation by light weight
*Excellent mechanical strength
*Excellent insulation in contaminated environment
*Good Hydrophobic Performance
2. The Raw material of 3kv Silicone Rubber Suspension Insulator Tramway Insulator Tension Insulator
*We use HTV silicone rubber which hydrophobicity can reach to HC1 level.
*We use hot dip Galvanizing steel fitting ,the thickness of the zinc more than 86 μm
*We use ECR rod as the core which is high acid resistant. 7200Hr testing passed.
3.The parameter of the 3kv Silicone Rubber Suspension Insulator Tramway Insulator Tension Insulator
|
Products Code |
Volage (kV) |
SML (kN) |
Section Length (mm) |
Arcing Distance (mm) |
Creepage Distance (mm) |
Power Frequency Withstand Yoltage |
Lghhing Impulsed Withstand Voltage (kV) |
Rting Eye Size (mm) |
|
|
Dry KV) |
Wet (kV) |
||||||||
| T0312 | 3 | 120 | 487 | 201 | 300 | 60 | 45 | 110 | φ24 |
|
Products Code |
Voltage (kV) |
SML (kN) |
Section Length (mm) |
Arcing Distance (mm) |
Creepage Distange (mm) |
Power Frequency Withstand Vdtage |
Ughing Impulsed Withstand VoltagekV) |
Fiting Eye Size (mm) |
|
|
Dry (kV) |
Wet (kV) |
||||||||
| T0313 | 3 | 90 | 300 | 190 | 300 | 60 | 42 | 100 | φ21 |
FAQ:
Q1. Are you a manufacturer or trading company?
A. Manufacturer.
Q2. How do you make sure your good quality ?
A. We use the best raw material , and every single product will go through a series of strict test.
Q3. Will you accept using customer's logo ?
A. Yes, we can offer OEM and ODM.
Q4. How about your delivery time?
A. Generally, it will take 40 days after receiving the advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery from our factory.
