1.5kV/ 3kV Silicone Rubber Post Insulator for Railway

Place of Origin CN;SHAAN XI
Brand Name TID POWER
Certification ISO9001
Model Number T0306, T0307
Minimum Order Quantity 10.0 Piece/Pieces
Price Negotiate
Delivery Time depends on the total quantity
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

Post Insulator Overhead Line Insulators ISO9001

,

Overhead Line Insulators 35kV

,

35kV Insulator Used In Transmission Line

Product Description

1.5kV/ 3kV Silicone Rubber Post Insulator for Railway



Product of Railway insulator



composite insulators are designed to provide electrical insulation and mechanical.
Here are some key features and benefits of composite insulators:



1. Electrical Insulation:
Composite insulators have excellent electrical insulation properties, effectively preventing the flow of electric current and minimizing leakage. The polymer or silicone rubber housing provides high dielectric strength, allowing the insulator to withstand high voltages without breakdown.



2. Mechanical Strength:

The fiberglass or other reinforcement materials used in the core of composite insulators provide excellent mechanical strength. This allows the insulator to withstand mechanical stresses, such as wind loads and vibrations, encountered in outdoor installations.


3. Light weight Design:

Composite insulators are significantly lighter than traditional porcelain or glass insulators. Their lightweight construction makes them easier to handle, transport, and install. It also reduces the mechanical load on support structures, contributing to  overall system efficiency and cost-effectiveness.



4. Environmental Conditions:

Composite insulators are designed to be highly resistant to environmental factors such as UV radiation, moisture, pollution, and temperature variations. The polymer or silicone rubber housing offers excellent weathering resistance, ensuring long-term performance and reliability.

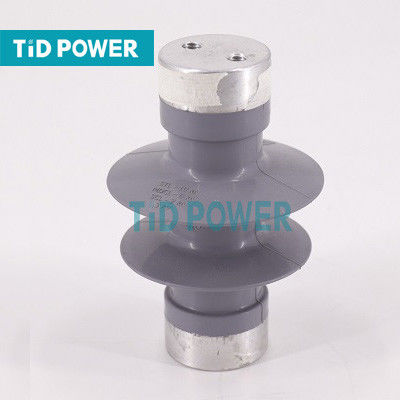

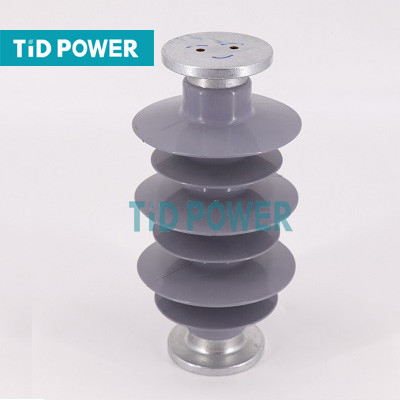

  1.5kV/ 3kV Silicone Rubber Post Insulator for Railway 01.5kV/ 3kV Silicone Rubber Post Insulator for Railway 1



Parameter of 1.5kV/ 3kV Silicone Rubber Post Insulator for Railway



Products Code

Voltage (KV)

SML

(kN)

Bending Strength

(kN)

Section Length (mm)



Arcing

Distance

(mm)



Creepage

Distance

(mm)

Wet Power

Frequency

Withstand

Voltage (kV)

Lightning impulsed

Withstand

Voltage(kV)

Top Flange

(mm)



Bottom

Flange

(mm)

T0306 1.5 3 12.5 70±1 60 140 18 35 1-M16 Φ45 1-M16 Φ45
T0307 3 10 6.5 165±1 110 210 35 65 2-M10 Φ50 2-M10 Φ50



1. Economic Packing desgin which will save your transportation cost.

2. Suitable packing material and beautiful package workmanship which will well protect the goods and avoid any trouble when you pick up the goods from the local customs.



FAQ


1.Is your company a manufacturer or a trader?

* We are the manufacture, 15 years production experience;

* our factory has passed ROSH, SGS, etc;

* Standard: IEC standard;

* Have own quality control.

2.Do you have export experience?

* More than 10 years export experience.

*TID products have been exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, USA, Costa rica ,Brazil etc.

3.How to choose products?

*Standard products: Please select standard code according to the above reference file;

*Customized product: please tell us

**Special material requirements; **Fitting model and mark ; ** Voltage;

**Tensile or Bending strength; **Creepage distance or pollution level;

**Structural height or electrical performance.

4.Productive capacity?

*216,000 PCS per year.
