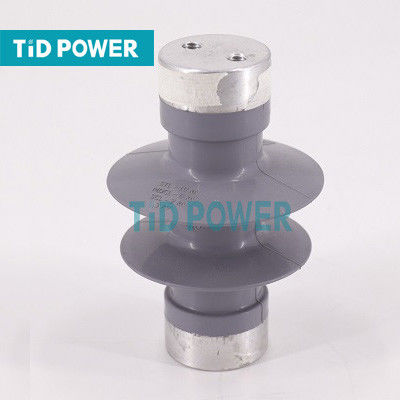

1.5Kv 3 Kv Railway Insulator Silicone Rubber Railway Post Insulator
| Place of Origin | CN;SHA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001 |
| Model Number | THCR |
| Minimum Order Quantity | 100.0 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film |
| Payment Terms | L/C Western Union D/P D/A T/T MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 1.5 KV, 3 KV | Bending Strength | 6.5-12.5 |
|---|---|---|---|
| Type | Composite Insulator | Rod Material | Fiberglass Rod |
| Port | Shanghai Or Other Port In China | Color | Grey |
| High Light | 3Kv Railway Insulator Silicone Rubber,1.5Kv Railway Insulator,1.5Kv Railway Post Insulator |
||
Product Description
Silicone Rubber Post Insulator Of Railway Insulator On 1.5 Kv,3 Kv
Product
1. Definition of Silicone Rubber Post Insulator Of Railway Insulator On 1.5 Kv,3 Kv
Post insulators are components that isolate high-voltage conductors from the ground and are widely used in transmission lines, substations, and power equipment. Its main structure consists of insulators, sockets, and bolts, which can withstand voltages up to hundreds of thousands of volts, providing important guarantees for the stable operation of the power system.
2. The function of Silicone Rubber Post Insulator Of Railway Insulator On 1.5 Kv,3 Kv
The main function of post insulators is to isolate transmission lines from the ground and prevent electrical accidents and equipment damage. Post insulators can also maintain stable insulation performance in strong electric field environments, ensuring the safe and reliable operation of the power system.
3. The purpose of Silicone Rubber Post Insulator Of Railway Insulator On 1.5 Kv,3 Kv
Post insulators are widely used in transmission lines, substations, and various power equipment in power systems, such as transformers, circuit breakers, isolation switches, etc. In the process of power transmission, due to the influence of equipment and its surrounding environment on power signals, quality issues such as signal distortion and frequency dispersion are caused. Therefore, it is necessary to use post insulators for isolation to ensure the reliability and stability of power transmission.
|
Products Code |
Voltage (kv) |
SML (KN) |
Bending Strengh (kN) |
Section Length (mm) |
Arcing Distance (mm) |
Creepage Distance (mm) |
Wet Power Frequency Withstand Voltage(kv) |
Lighting Impulsed Wihstand Voltage(Kv) |
Top Flange (mm) |
Bottom flange mm) |
| T0306 | 15 | 3 | 12.5 | 70±1 | 60 | 140 | 18 | 35 | 1-M16 φ45 |
1-M16 φ45 |
| T0307 | 3 | 10 | 6.5 | 165±1 | 110 | 210 | 35 | 65 |
2-M10 φ50 |
2-M10 φ50 |
1. Are you a manufacturer or a trader?
* We are a manufacturer, with 15 years of production experience;
* Our factory has passed ROSH, SGS certification;
* Standard: IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years of export experience.
*TID products have been exported to Indonesia, the United Kingdom, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to the above reference documents;
* Custom products: Please tell us
** Special material requirements ** Accessory type and marking; Primary voltage
** Tensile or bending strength ** creepage distance or contamination degree;
** Structural height or electrical performance.
4. Production capacity?
* 216,000 units per year.
