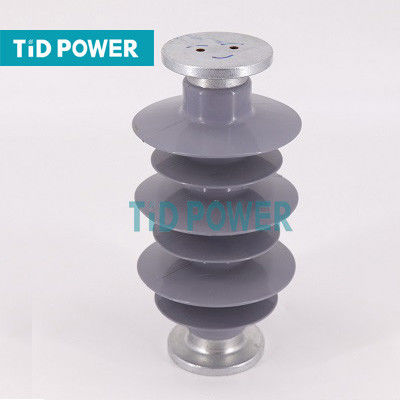

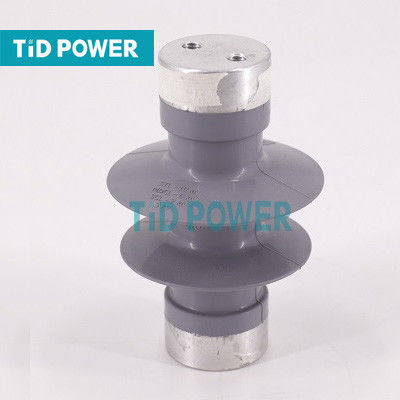

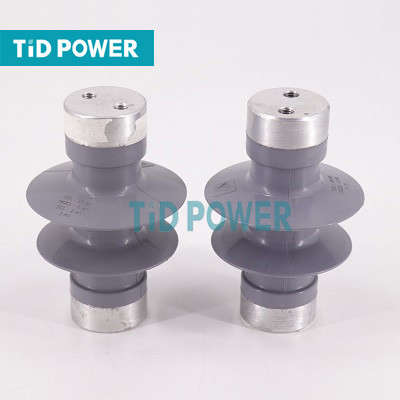

1.5kV / 3kV Railway Insulator / Silicone Rubber Railway Post Insulator

Place of Origin CN;SHAAN XI
Brand Name TID POWER
Certification ISO9001
Model Number T0306, T0307
Minimum Order Quantity 100.0 Piece/Pieces
Price Negotiate
Packaging Details Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 1.5 KV, 3 KV Bending Strength 6.5, 12.5 KN
Type Composite Insulator Rod Material Fiberglass Rod
Port Shanghai Or Other Port In China Color Grey
Highlight

3Kv Railway Insulator Silicone Rubber

,

1.5Kv Railway Insulator

,

1.5Kv Railway Post Insulator

Product Description

1.5kV / 3kV Railway Insulator / Silicone Rubber Railway Post Insulator



The main function of post insulators is to isolate transmission lines from the ground and prevent electrical accidents and equipment damage. Post insulators can also maintain stable insulation performance in strong electric field environments, ensuring the safe and reliable operation of the power system.



Products

Code

Voltage

(kV)

SML (kN)

Bending Strengh

(kN)

Section Length (mm)

Arcing

Distance

(mm)

Creepage

Distance

(mm)

Wet Power

Frequency Withstand Voltage(kV)

Lighting

Impulsed Wihstand

Voltage(kV)

Top

Flange (mm)

Bottom

Flange

(mm)

T0306 15 3 12.5 70±1 60 140 18 35

1-M16

φ45

1-M16

φ45

T0307 3 10 6.5 165±1 110 210 35 65

2-M10

φ50

2-M10

φ50



1.5kV / 3kV Railway Insulator / Silicone Rubber Railway Post Insulator 0

1. Are you a manufacturer or a trader?



* We are a manufacturer, with 15 years of production experience;



* Our factory has passed ROSH, SGS certification;



* Standard: IEC standard;



* Has its own quality control.



2. Do you have any export experience?



* More than 10 years of export experience.



*TID products have been exported to Indonesia, the United Kingdom, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.



3. How to choose products?



* Standard products: Please select the standard code according to the above reference documents;



* Custom products: Please tell us



** Special material requirements ** Accessory type and marking; Primary voltage



** Tensile or bending strength ** creepage distance or contamination degree;



** Structural height or electrical performance.



4. Production capacity?



* 216,000 units per year.
