High Voltage Section Railway Insulator / 25KV Silicone Composite Insulators
| Place of Origin | CN;SHAAN XI |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001 |
| Model Number | T2519-T2522 |
| Minimum Order Quantity | 100.0 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | White Or Gray | Type | Composite Insulator |
|---|---|---|---|
| Rated Voltage | 25 KV | Application | High Voltage |
| Sample | Supply | Packing | Carton, Tray And Wooden Box |
| Standard | IEC 61109 | Port | Shanghai Or Other Port In China |
| High Light | High Voltage Section Insulator Railway IEC 61952,Section Insulator Railway 25KV,25KV Silicone Composite Insulators |
||
Product Description

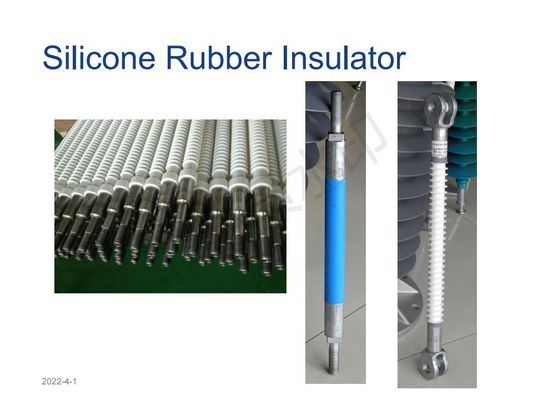

Section Insulator / Silicone Rubber Insulator / Railway Insulator 25 KV
Product
1. The Characteristics of High Voltage Section Railway Insulator / 25KV Silicone Composite Insulators
Silicone rubber insulators Compared with porcelain and glass insulators, silicone rubber insulators have the advantages of light weight, good hydrophobicity and maintenance-free.
The manufacture of silicone rubber insulators mainly includes crimping fittings and injection rubber shells. In the process of crimping, our company adopts a number of monitoring and crimping technologies to effectively prevent the insulator core rod and joint from being pulled or broken. In the silicone rubber molding process, our company adopts the whole injection molding high temperature vulcanization process, and adopts the RTV end double seal, which effectively reduces the risk of rainwater infiltration into the insulator end interface.
2. The details of Section Insulator Silicone Rubber Insulator Railway Insulator 25 KV
|
Products Code |
Voltage (KV) |
SML (kN) |
Normal Working Load (kN) |
Section Length (mm) |
Creepage Distance (mm) |
Wet Power Frequency Withstand Voltage(kV) |
Lightning impulsed Withstand Voltage(kV) |
Stud Fitting (mm) |
|
| T2519 | 25 | 100 | 30 | 1055 | 1500 | 150 | 270 | M16*65 | |
| T2520 | 25 | 100 | 30 | 1473 | 1950 | 186 | 386 | M16*65 | |
|
Products Code |
Voltage (KV) |
SML (kN) |
Normal Working Load (kN) |
Section Length (mm) |
Creepage Distance (mm) |
Wet Power Frequency Withstand Voltage(kV) |
Lightning impulsed Withstand Voltage(kV) |
Clevis Fitting (mm) |
|
| T2521 | 25 | 100 | 30 | 1085±15 | 1500 | 150 | 270 | 19 - Φ19 | |
| T2522 | 25 | 100 | 30 | 1530±15 | 1950 | 186 | 386 | 19 - Φ19 | |
Our silicone rubber and accessories, silicone rubber and rod bonding using different bonding processes.When crimping accessories on glass fiber rods, our company adopts patented ultrasonic sensing system and PC-controlled crimping equipment and process. If the glass fiber is abnormal during the crimping process, the system will automatically alarm, effectively avoiding the problem that is difficult to find when the glass fiber rod breaks inside the accessory. The PC-controlled crimping system has a pre-crimping function to eliminate the gap between metal fittings and glass fiber rods by pre-tightening pressure, so that the gap tolerance of the same batch of products is close. Thus, the consistency and stability of the tensile strength of the same batch of products are improved, and the disconnection accident caused by falling off is avoided.
FAQ
1. Are you a manufacturer or a trader?
* We are the manufacturer, 15 years of production experience;
* The factory has passed ROSH, SGS certification;
* Standard :IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years working experience in export.
* Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to the above reference documents;
* Custom products: Please tell us
** Special material requirements; ** Fitting model and mark; * * voltage;
** Tensile or bending strength; ** creepage distance or pollution level;
** Structural height or electrical performance.
4. Production capacity?
* 100000 units per year.
