Insulation Epoxy Fiberglass Tube Foam Filled Fiber Glass Tubing Live Line Tools
| Place of Origin | CN;SHA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001 |
| Model Number | FXBW |
| Minimum Order Quantity | 100. 0 Meter/Meters |
| Price | Negotiate |
| Packaging Details | Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film |
| Payment Terms | L/C Western Union D/P D/A T/T MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | High Voltage | Brand Name | TID POWER |
|---|---|---|---|
| Surface Treatment | Smooth Surface | Technique | Knitting And Pultruded |
| Standard | IEC 60855, IEC 61235, ASTM F711 | Sample | Yes |
| High Light | Insulation Epoxy Fiberglass Tube IEC,Foam Filled Fiber Glass Tubing IEC,Live Line Tools Epoxy Fiberglass Tube |
||
Product Description
Foam Filled Epoxy Fiberglass Tube Knitting And Pultruded Insulation Tube
Product
1. The application of Foam Filled Epoxy Fiberglass Tube Knitting And Pultruded Insulation Tube
Live working tool handle
Garden tool handle
Live working operating rod
Features of foam filling pipe:
Good dimensional stability, smooth surface, and elegant appearance.
It has superior heat resistance and high temperature resistance characteristics.
Excellent insulation performance and resistance to acid and alkali corrosion.
Excellent mechanical performance, with higher tensile, compressive, and torsional strength than hollow extruded pipes.
Lightweight and high-strength, convenient for transportation and use.
| No. | Type | D(mm) | d(mm) | Thickness(mm) |
Ref.Weight (g/m) |
Color | L (mm) |
| 1 | TEHC16/10 | 16 | 10 | 2.0 | 191 |
Red Orange or Bright Yellow |
According to customer requirement |
| 2 | TEHC20/16 | 20 | 16 | 2.0 | 270 | ||
| 3 | TEHT26/20 | 26 | 20 | 3.0 | 523 | ||
| 4 | TEHT30/25 | 30 | 25 | 2.5 | 547 | ||
| 5 | TEHT30/26 | 30 | 26 | 2.0 | 466 | ||
| 6 | TEHT32/26 | 32 | 26 | 3.0 | 681 | ||
| 7 | TEHT32/26.5 | 32 | 26.5 | 2.75 | 638 | ||
| 8 | TEHT32/26.8 | 32 | 26.8 | 2.6 | 491 | ||
| 9 | TEHT32/27 | 32 | 27 | 2.5 | 595 | ||
| 10 | TEHT38/32 | 38 | 32 | 3.0 | 846 | ||
| 11 | TEHT44/32 | 44 | 32 | 6.0 | 1696 | ||
| 12 | TEHT50/45 | 50 | 45 | 2.5 | 972 | ||
| 13 | TEHT50.5/45 | 50.5 | 45 | 2.75 | 1145 | ||
| 14 | *TEHT50.5/45 | 50.5 | 45 | 2.75 | 1145 | ||
| 15 | TEHT55/45 | 55 | 45 | 5.0 | 1965 | ||
| 16 | TEHT63.5/50 | 63.5 | 50 | 6.75 | 5586 | ||
| 17 | TEHT63.7/50.3 | 63.7 | 50.3 | 6.7 | 2936 | ||
| 18 | TEHT70/45 | 70 | 45 | 12.5 | 5203 | ||
| 19 | TEHT80/56 | 80 | 56 | 12 | 6005 | ||
| 20 | TEHT100/90 | 100 | 90 | 5 | 3408 | ||
| 21 |
Note: 1. Any other shape if you need,please send us drawings,we can producing accordingly. 2. * means the tube with anti-slip surface. |
||||||

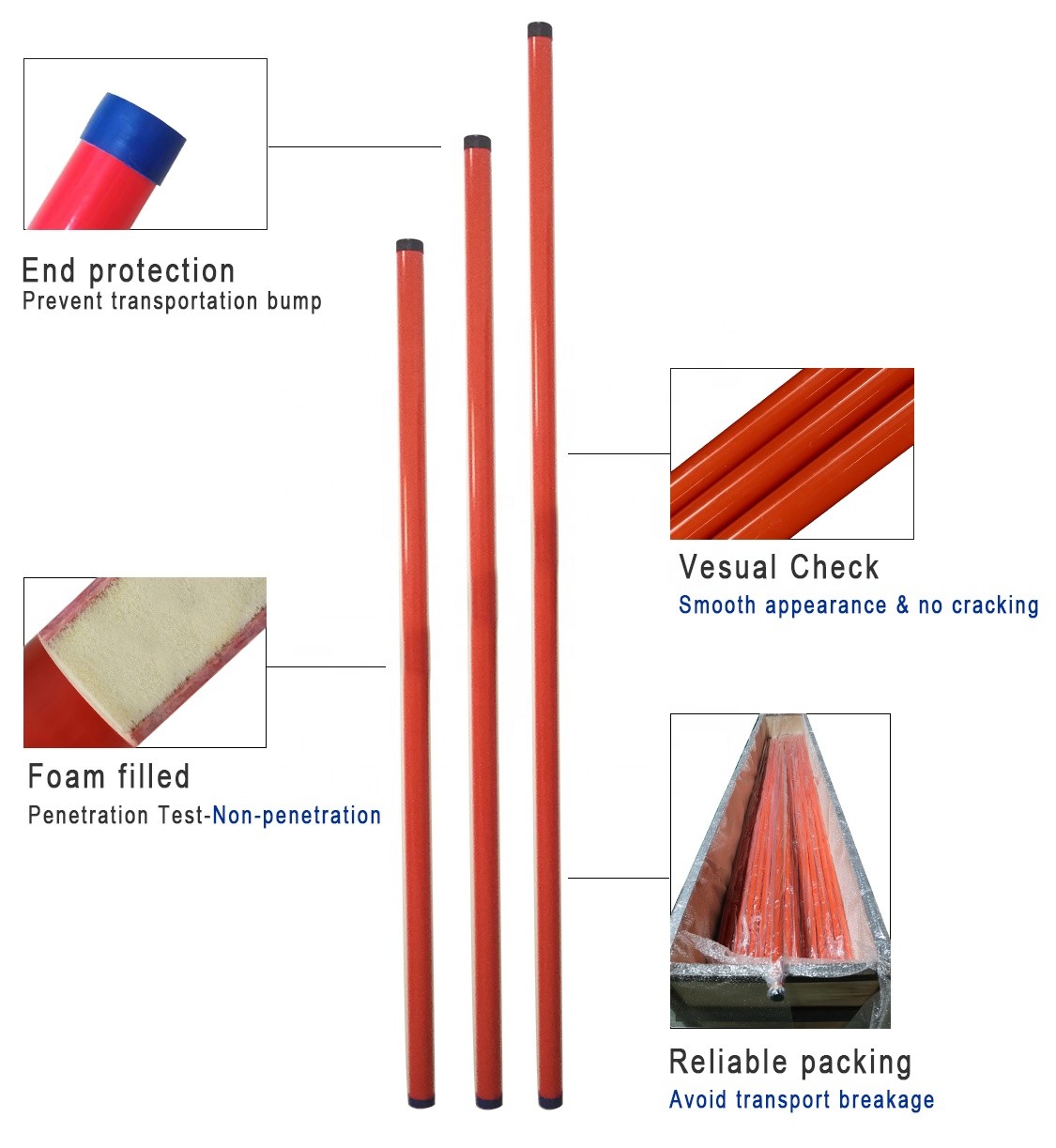

2. The pictures of the foam filled epoxy fiberglass tube knitting and pultruded insulation tube
FAQ:
1.Is your company a manufacturer or a trader?
* We are the manufacture, 15 years production experience;
* our factory has passed ROSH, SGS, etc;
* Standard: IEC standard;
* Have own quanlity control.
2.Do you have export experience?
* More than 10 years export experience.
*TID products have been exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, USA, Costa rica ,Brazil etc.
3.Productive capacity?
*1,000,000 PCS per year.
4.Delivery time?
*Samples: 3-7 days; order: 30 days or according to the order quantity.
5.Do you accept OEM/ODM?
* Yes, we have several customer ask OEM/ODM, we'll do what you tell us!
Choose US, We shall provide you with all-round technical service!
We warmly welcome you to join us!
We are eager to keep permanent cooperation with you!
