Knitting and Pultrusion Epoxy Resin Fiberglass Tube

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001
Model Number TEHT
Minimum Order Quantity 50 Meter/Meters
Price Negotiate
Packaging Details Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Shaanxi, China Technique Knitting And Pultrusion
Material Epoxy Resin Fiberglass Diameter 16mm-100mm
Color Red/orange/yellow Certificate CE/ISO9001
High Light

Knitting Pultruded Epoxy Fiberglass Tube

,

Epoxy Fiberglass Tube 80mm

,

Filled Epoxy Resin Insulation Tube

Product Description

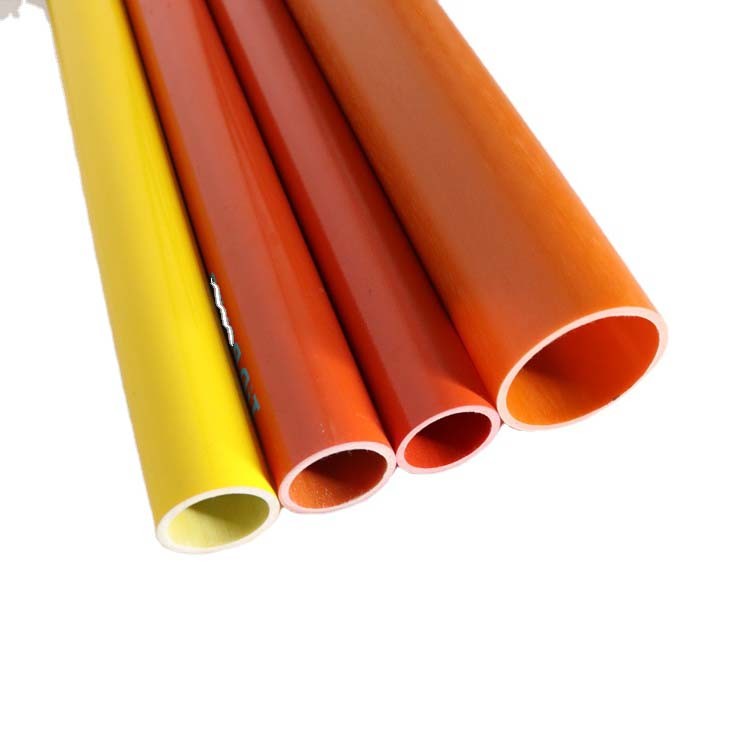

Knitting and Pultrusion Epoxy Resin Fiberglass Tube



Product

1 The feature of Knitting and Pultrusion Epoxy Resin Fiberglass Tube

Fiberglass pipes belong to the category of insulating tubes, and the materials used for glass fiber tubes are glass fiber yarn and resin. We use unique weaving and extrusion techniques to produce it, so our insulation pipes have excellent insulation and mechanical properties,It is very popular in the field of live working and is an essential raw material for various live working tools



No.

Type

D(mm)

d(mm)

Thickness(mm)

Ref.Weight

(g/m)

Color

L (mm)

1

TEHC16/10

16

10

2.0

179



Red Orange or Bright Yellow

According to customer requirement

2

TEHC20/16

20

16

2.0

240

3

TEHT26/20

26

20

3.0

476

4

TEHT30/25

30

25

2.5

474

5

TEHT30/26

30

26

2.0

386

6

TEHT32/26

32

26

3.0

601

7

TEHT32/26.5

32

26.5

2.75

555

8

TEHT32/26.8

32

26.8

2.6

406

9

TEHT32/27

32

27

2.5

509

10

TEHT38/32

38

32

3.0

725

11

TEHT44/32

44

32

6.0

1575

12

TEHT50/45

50

45

2.5

734

13

TEHT50.5/45

50.5

45

2.75

907

14

*TEHT50.5/45

50.5

45

2.75

907

15

TEHT55/45

55

45

5.0

1727

16

TEHT63.5/50

63.5

50

6.75

5292

17

TEHT63.7/50.3

63.7

50.3

6.7

2638

18

TEHT70/45

70

45

12.5

4965

19

TEHT80/56

80

56

12

5636

20

TEHT100/90

100

90

5

3281

21

Note:

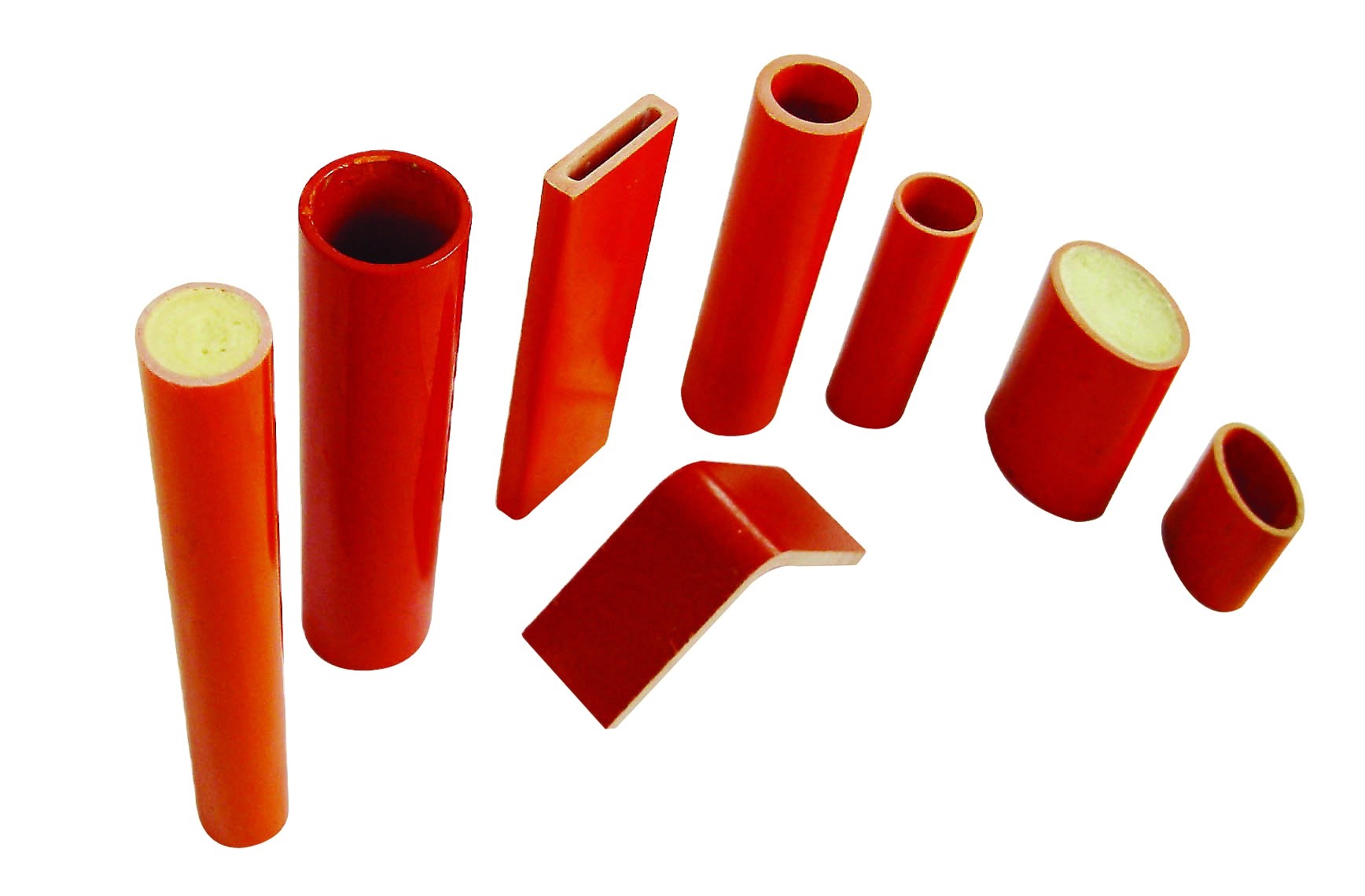

1. Any other shape if you need,please send us drawings,we can producing accordingly.

2. * means the tube with anti-slip surface.

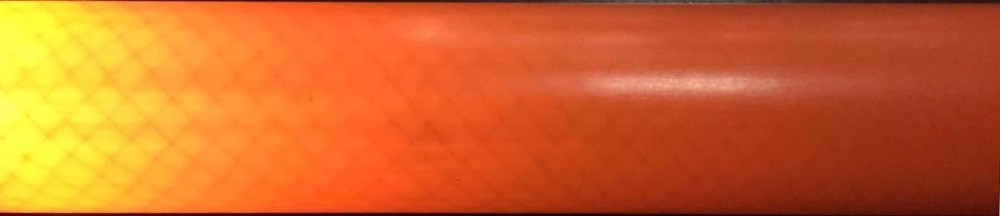

2. More details of Knitting and Pultrusion Epoxy Fiberglass Tube

Knitting and Pultrusion Epoxy Resin Fiberglass Tube 0 Knitting and Pultrusion Epoxy Resin Fiberglass Tube 1



FAQ:

1.Is your company a manufacturer or a trader?

* We are the manufacture, 15 years production experience;

* our factory has passed ROSH, SGS, etc;

* Standard: IEC standard;

* Have own quanlity control.

2.Do you have export experience?

* More than 10 years export experience.

*TID products have been exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, USA, Costa rica ,Brazil etc.

3.Delivery time?

*Samples: 3-7 days; order: 30 days or according to the order quantity.

4.Do you accept OEM/ODM?

* Yes, we have several customer ask OEM/ODM, we'll do what you tell us!

Choose US, We shall provide you with all-round technical service!

We warmly welcome you to join us!

We are eager to keep permanent cooperation with you!
