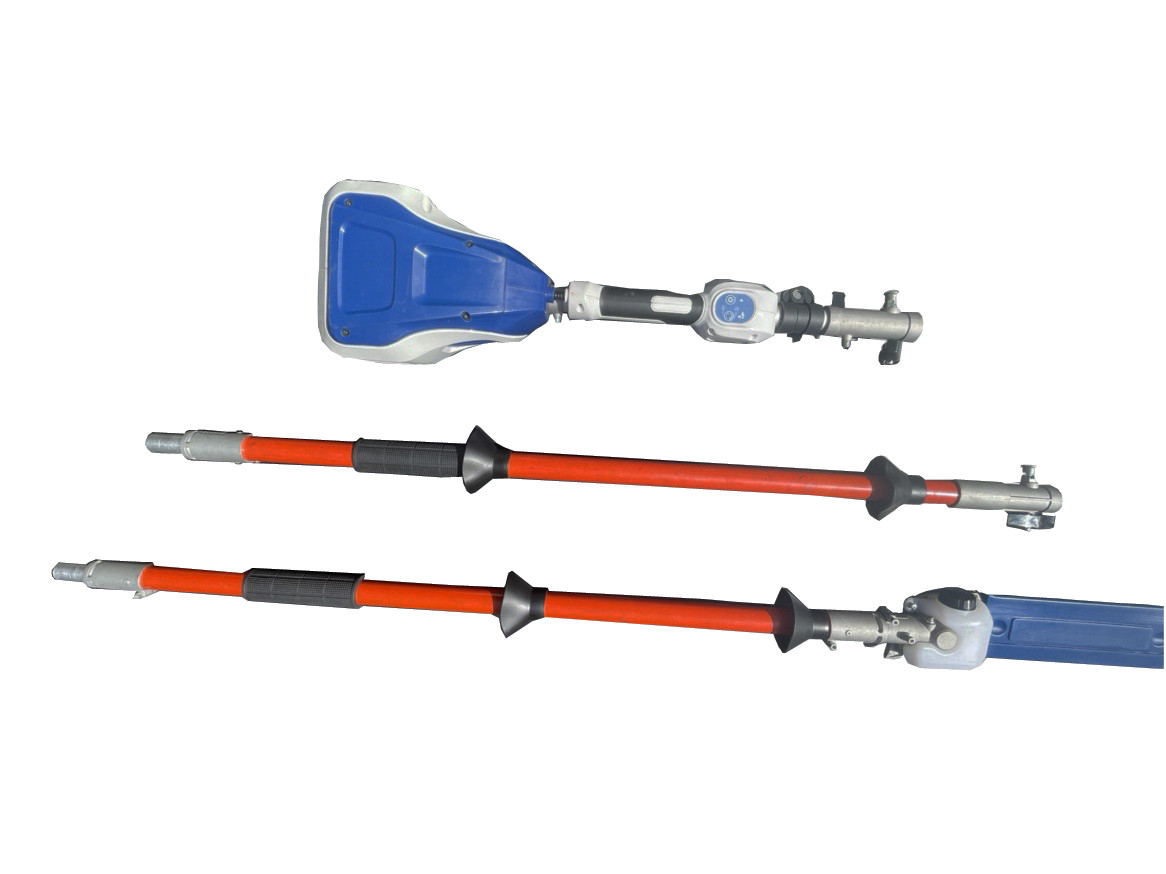

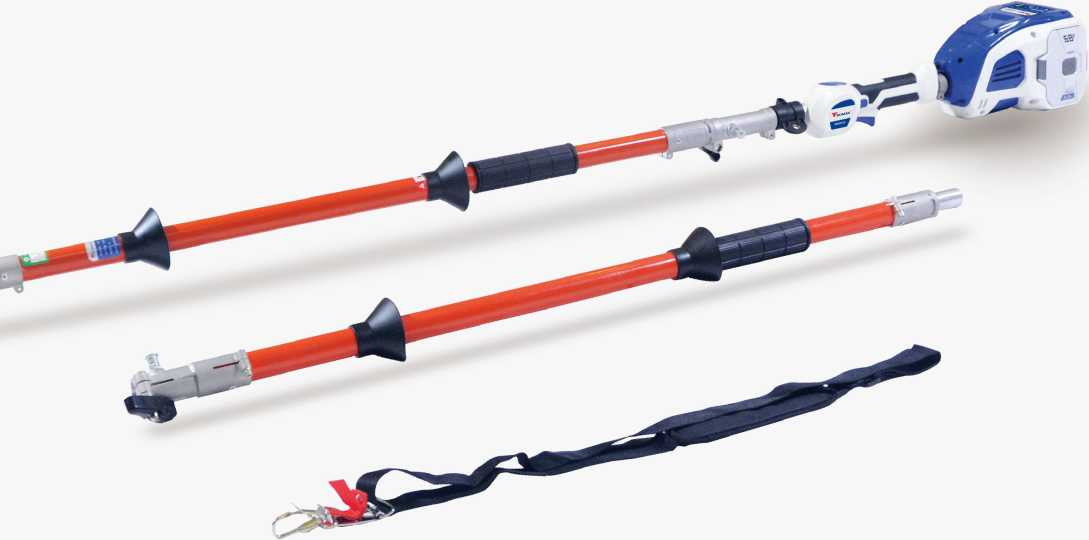

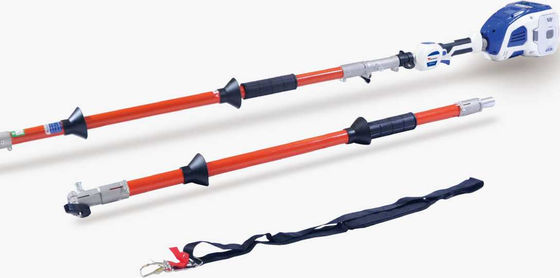

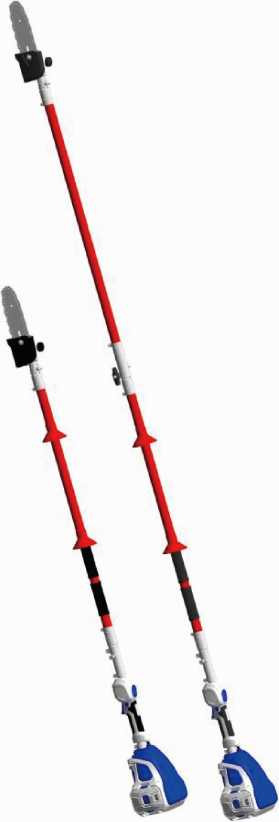

10kv Lithium Electrical Insulated Saw High Branches Trees Electrical Pole Saw
| Place of Origin | CN;SHA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001 |
| Model Number | FXBW |
| Minimum Order Quantity | 1.0 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film |
| Payment Terms | L/C Western Union D/P D/A T/T MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 58 V DC | Type Of Motor | DC Permanent Magnet Brushless Motor |
|---|---|---|---|
| Operating Speed | 9000 Rpm/ 7500 Rpm( Two Speed Switching) | Color | Red,yellow Or Customized |
| Material Of Rod | Fiberglass | Port | Shanghai Or Other Port In China |
| High Light | 10kv Lithium Electrical Insulated Saw,High Branches Electrical pole Saw 58V DC,10kv Electrical pole Saw |
||
Product Description
10KV Lithium Electrical Insulated Saw Of High Branches Of Trees Live Line Tools High Voltage Safe Work Trimming
Product
1.The features of 10kv lithium electrical insulated saw of high branches of trees live line tools high voltage safe work trimming
1. The product is suitable for 10KV live operation
2. This saw only 4.5kg,it is light and easy to carry.
3. The product comes with rainproof cover, which is safer to use.
4. Standard 1.4KW motor, selectable1.8KW high efficiency permanent magnet motor, strong output power, high cutting efficiency
5. Short rod can be selected for climbing truck operation, which is convenient to operate; The extended rod can be used for long-distance operation, it can reached a height of 4m
2.The size of 10kv lithium electrical insulated saw of high branches of trees live line tools high voltage safe work trimming
| No. | Product code | 610101 | 610102 |
| 1 | Type of motor | Dc permanent magnet brushless motor | |
| 2 | voltage | 58V DC | |
| 3 | power | 1.4 KW / 1.8KW(selectable) | |
| 4 | Operating speed | 9000 rpm / 7500rpm (two speed switching) | |
| 5 | Linear velocity | 20 m/s | |
| 6 | Maximum cutting diameter | Φ200 mm | |
| 7 | Maximum cutting height | 2. 8 m | 4. 0 m |
| 8 | Standard guide board length | 20 cm / 8 inch. | 20 cm / 8 inch. |
| 9 | Extended rod length | / | 1.2 m |
| 10 | Standard of battery pack | 2 x 4 Ah 58V de. | |
| 11 | Operating time | 3. 5-4. 5 h | 3-4 h |
| 12 | Charge time (fast charge) | 45 min - Ipcs 4Ah | |
| 13 | Tank volume | 140 ml | |
| 14 | vibration | 1.9 / 2.3 m/s2 | |
| 15 | Noise value | 83 dB(A) | |
| 16 | Test basis | GB13398-2008 performance test | |
| 17 | certificate | Electricity Industry Electrical Equipment Quality Inspection and Test Center (Wuhan) | |
FAQ:
1. Are you a manufacturer or a trader?
* We are the manufacturer, 15 years of production experience;
* The factory has passed ROSH, SGS certification;
* Standard :IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years working experience in export.
* Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to the above reference documents;
* Custom products: Please tell us
** Special material requirements; ** Fitting model and mark; * * voltage;
** Tensile or bending strength; ** creepage distance or pollution level;
** Structural height or electrical performance.
4. Production capacity?
* 100000 units per year.
Choose us, we will provide you with a full range of technical services!
We warmly welcome you to join us!
We are eager to maintain permanent cooperation with you!
