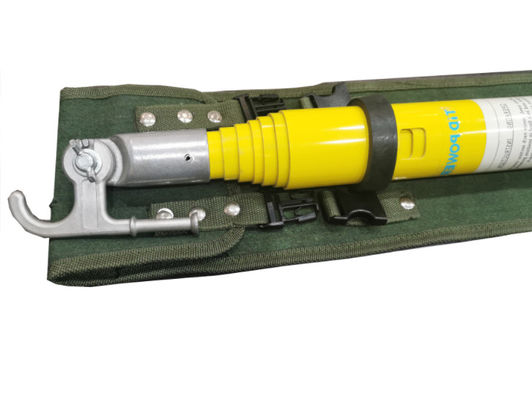

Triangle tube of the telescoping hot stick For Live Line Working

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001:2008
Model Number 212001-212008
Minimum Order Quantity 100 Piece/Pieces
Price Negotiate
Packaging Details suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement.
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Strength, High Temperature Resistance, Corrosion Resistance Weight Lightweight
Material Fiberglass Application Live Line Maintenance
Service Life Long Service Life
High Light

220kv Telescopic Hot Stick High Voltage

,

6kv High Voltage Link Stick Electrical

,

6kv Live Line Telescopic Hot Stick

Product Description

Triangle tube of the telescoping hot stick For Live Line Working



The triangle tube of the telescoping hot stick have maximum convenience for the lineman because they permit them to perform many routine jobs from ground level. The universal end fitting on the insulated top section accepts a wide variety of attachments, so the lineman can disconnect switches, replace cutout tubes and reclose, remove pole covers, prune trees, replace bulbs and complete many other overhead tasks.


The triangular tube section is shown as below pictures, approximate triangular arc is the most comfortable shape of hand grip. approximately triangular shape can avoid axial sliding during torsional operation. Compared with the traditional round tube, it is more stable, easy to connect to the operating part and easy operation.
1.Applied Standard: IEC60855, ASTM F711.
2.Parts Material:
 Universal head with hook: aluminum alloy in nature color
 Tube : Top section: Foam filled fiberglass tube in fluorescence green,
 Other sections: Fiberglass tube in yellow
 Handle: Insulation rubber in black
 Bag: Water-proof Nylon bag in green
3. Product features:
3.1Unique design - approximately triangular tube structure, each section can be quickly telescopic positioning, no need to turn the joint to find the buckle and fixed.
3.2High visibility - The outer layer of the top tube is fluorescent paint for easy identification during operation, the inner part is filled with moisture-proof insulating foam to prevent moisture accumulation.
3.3Easy to operate -New large button with same size, easy to operate even with insulating gloves.
3.4Easy to maintain - the sticks body is smooth and non-porous, easy for daily cleaning and waxing.
3.5Multi-function - high strength aluminum alloy universal joint, can firmly connect all kinds of tool heads.
3.6 Various specifications - Extract length from 2.43 to 12 meters, retract length from 0.67 to 1.75 meters.
3.7High electrical insulation strength - All products are passed 100kV/300mm power frequency voltage test.



Products Code Extract Length
M
Retract Length
M
Sections Base diameter
mm
Approximate Weight
kg
212001 2.43 0.8 5 44.60 1.40
212002 3.80 1.48 3 37.00 1.70
212003 5.00 1.53 4 40.40 2.30
213004 6.43 1.59 5 44.60 3.00
212005 7.80 1.65 6 48.40 3.70
212006 9.21 1.70 7 52.40 4.60
212007 10.60 1.75 8 56.50 5.50
212008 12.00 1.79 9 60.30 6.50
