3.2 M-15.2 M Fully Insulated Scaffolding For Live line Working

  • 3.2 M-15.2 M Fully Insulated Scaffolding For Live line Working
  • 3.2 M-15.2 M Fully Insulated Scaffolding For Live line Working
  • 3.2 M-15.2 M Fully Insulated Scaffolding For Live line Working
  • 3.2 M-15.2 M Fully Insulated Scaffolding For Live line Working
  • 3.2 M-15.2 M Fully Insulated Scaffolding For Live line Working
Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001
Model Number 22****
Minimum Order Quantity 1 Piece/Pieces
Price Negotiate
Packaging Details Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Easy To Installation Height 3.2 M-15.2 M
Material Fiberglass And Epoxy Resin Color Yellow, Orange,red Or Customized
OEM Accepted Port Shanghai Or Other Port In China
Brand TID POWER Load Capacity 300kgs
High Light

15.2M Insulated Scaffolding

,

Insulated Scaffolding Live Line Inspection

,

15.2M Insulated Platform Scaffolding
Product Description

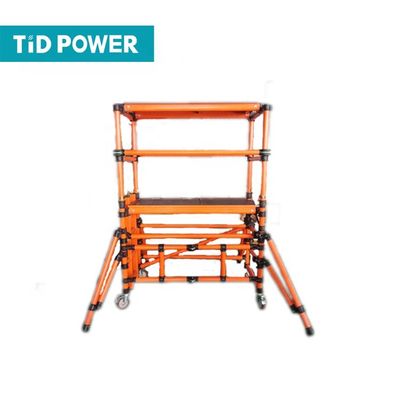

3.2 M-15.2 M Fully Insulated Scaffolding



Product

The characteristic of 3.2 M-15.2 M Fully Insulated Scaffolding

1. The overall structure adopts a modular combination design, which is simple and fast to construct and disassemble;

2. The components are standard and can be disassembled and assembled without the use of any tools, simple and convenient;

3. The combination is diverse and can adapt to any venue environment, and can be customized according to customer requirements;

4. The material is made of lightweight high-strength fiberglass tube, which is maintenance free for 15 years;

5. The product complies with GB17620-1998 "General Technical Conditions for Insulated Hard Ladders for Live Working" and has passed the testing of national authoritative departments. The user's response to use is good.



The main structure of the fully insulated scaffold (platform) is a high-strength insulating tube made of fiberglass and epoxy resin (EP). It is built by a ladder frame, a horizontal connecting rod and a diagonal connecting rod, and a support rod plus an insulating platform board. The insulating scaffold (platform) is quick to build, easy to disassemble and assemble, without any installation tools, and convenient to use. It has high mechanical strength, Excellent insulation performance, high flexibility, safety and stability, fast disassembly and assembly, non-conductive, anti oxidation, corrosion resistance, non-sparking, etc. It is suitable for a variety of live construction sites and high-altitude live operations. It makes up for the inability of insulated bucket trucks to enter the site Insufficient construction.


3.2 M-15.2 M Fully Insulated Scaffolding

Straight Ladder Full Insulated Scaffolding size

No.

Products Code

L (M)

W(M)

Stand Height

M

Total Height

M

Load Capacity

kg

1

221022

1.8

0.85

2.2

3.2

200

2

221027

1.8

0.85

2.7

3.7

200

3

221032

1.8

0.85

3.2

4.2

200

4

221037

1.8

0.85

3.7

4.7

200

5

221042

1.8

0.85

4.2

5.2

200

6

221047

1.8

0.85

4.7

5.7

200

7

221052

1.8

0.85

5.2

6.2

200

8

221057

1.8

0.85

5.7

6.7

200

9

221062

1.8

0.85

6.2

7.2

200

10

221067

1.8

0.85

6.7

7.7

200

11

221072

1.8

0.85

7.2

8.2

200

12

221077

1.8

0.85

7.7

8.7

200

13

221082

1.8

0.85

8.2

9.2

200

14

221087

1.8

0.85

8.7

9.7

200

15

221092

1.8

0.85

9.2

10.2

200

18

222022

2.5

0.85

2.2

3.2

200

19

222027

2.5

0.85

2.7

3.7

200

20

222032

2.5

0.85

3.2

4.2

200

22

222037

2.5

0.85

3.7

4.7

200

23

222042

2.5

0.85

4.2

5.2

200

23

222047

2.5

0.85

4.7

5.7

200

24

222052

2.5

0.85

5.2

6.2

200

25

222057

2.5

0.85

5.7

6.7

200

26

222062

2.5

0.85

6.2

7.2

200

27

222067

2.5

0.85

6.7

7.7

200

28

222072

2.5

0.85

7.2

8.2

200

29

222077

2.5

0.85

7.7

8.7

200

30

222082

2.5

0.85

8.2

9.2

200

31

222087

2.5

0.85

8.7

9.7

200

32

222092

2.5

0.85

9.2

10.2

200

33

222097

2.5

0.85

9.7

10.7

200

34

222102

2.5

0.85

10.2

11.2

200



Straight Ladder Full Insulated Scaffolding size

No.

Products Code

L (M)

W(M)

Stand Height

M

Total Height

M

Load Capacity

kg

1

223027

1.8

1.45

2.7

3.7

200

2

223032

1.8

1.45

3.2

4.2

200

3

223037

1.8

1.45

3.7

4.7

200

4

223042

1.8

1.45

4.2

5.2

200

5

223047

1.8

1.45

4.7

5.7

200

6

223052

1.8

1.45

5.2

6.2

200

7

223057

1.8

1.45

5.7

6.7

200

8

223062

1.8

1.45

6.2

7.2

200

9

223067

1.8

1.45

6.7

7.7

200

10

223072

1.8

1.45

7.2

8.2

200

11

223077

1.8

1.45

7.7

8.7

200

12

223082

1.8

1.45

8.2

9.2

200

13

223087

1.8

1.45

8.7

9.7

200

14

223092

1.8

1.45

9.2

10.2

200

15

223097

1.8

1.45

9.7

10.7

200

16

223102

1.8

1.45

10.2

11.2

200

17

223107

1.8

1.45

10.7

11.7

200

18

223112

1.8

1.45

11.2

12.2

200

19

223117

1.8

1.45

11.7

12.7

200

20

224027

2.5

1.45

2.7

3.7

200

22

224032

2.5

1.45

3.2

4.2

200

23

224037

2.5

1.45

3.7

4.7

200

23

224042

2.5

1.45

4.2

5.2

200

24

224047

2.5

1.45

4.7

5.7

200

25

224052

2.5

1.45

5.2

6.2

200

26

224057

2.5

1.45

5.7

6.7

200

27

224062

2.5

1.45

6.2

7.2

200

28

224067

2.5

1.45

6.7

7.7

200

29

224072

2.5

1.45

7.2

8.2

200

30

224077

2.5

1.45

7.7

8.7

200

31

224082

2.5

1.45

8.2

9.2

200

32

224087

2.5

1.45

8.7

9.7

200

33

224092

2.5

1.45

9.2

10.2

200

34

224097

2.5

1.45

9.7

10.7

200

35

224102

2.5

1.45

10.2

11.2

200

36

224107

2.5

1.45

10.7

11.7

200

37

224112

2.5

1.45

11.2

12.2

200

38

224117

2.5

1.45

11.7

12.7

200



Cross climbing Ladder Full Insulated Scaffolding

No.

Products
Code

L (M)

W(M)

Stand Height
M

Total Height
M

Load
Capacity
kg

1

225030

2.0

0.85

3

4.2

200

2

225040

2.0

0.85

4

5.2

200

3

225050

2.0

0.85

5

6.2

200

4

225060

2.0

0.85

6

7.2

200

5

225070

2.0

0.85

7

8.2

200

6

225080

2.0

0.85

8

9.2

200

7

226030

2.0

1.40

3

4.2

200

8

226040

2.0

1.40

4

5.2

200

9

226050

2.0

1.40

5

6.2

200

10

226060

2.0

1.40

6

7.2

200

11

226070

2.0

1.40

7

8.2

200

12

226080

2.0

1.40

8

9.2

200

13

226090

2.0

1.40

9

10.2

200

14

226100

2.0

1.40

10

11.2

200

15

226110

2.0

1.40

11

12.2

200

18

226120

2.0

1.40

12

13.2

200

19

226130

2.0

1.40

13

14.2

200

20

226140

2.0

1.40

14

15.2

200



3.2 M-15.2 M Fully Insulated Scaffolding For Live line Working 03.2 M-15.2 M Fully Insulated Scaffolding For Live line Working 13.2 M-15.2 M Fully Insulated Scaffolding For Live line Working 2



FAQ:

1. Are you a manufacturer or a trader?
* We are the manufacturer, 15 years of production experience;
* The factory has passed ROSH, SGS certification;
* Standard :IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years working experience in export.
* Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to the above reference documents;
* Custom products: Please tell us
** Special material requirements;
