Modular Insulated Scaffolding Easy Assemble Dismantle Scaffolding Insulation for Live Line working
| Place of Origin | CN;SHA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001:2008 |
| Model Number | 220*** |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Standard export packing; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement. |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Easy To Operate | Height | Customized |
|---|---|---|---|
| Weight | Light Weight | Material | Insulated Metal |
| Color | Orange/Yellow | Power Frequency Withstand Voltage | 100kV/ Feet 1minute |
| Safety | High | Oem | Accepted |
| Weather Resistance | Waterproof And UV-resistant | Warranty | 1 Year |
| Uv Resistance | Strong | Suitable For | Indoor And Outdoor Use |
| Assembly Method | Modular System With Quick-lock Pins | Size | Customized |
| Accessories Included | Stabilizers, Outriggers, And Leveling Jacks | Type | Ladders Scarffolding |
| Insulation | High | Insulation Material | Polyurethane Foam |
| High Light | Modular Insulated Scaffolding,Insulated Scaffolding Easy Assemble,Easy Dismantle Scaffolding Insulation |
||
Product Description

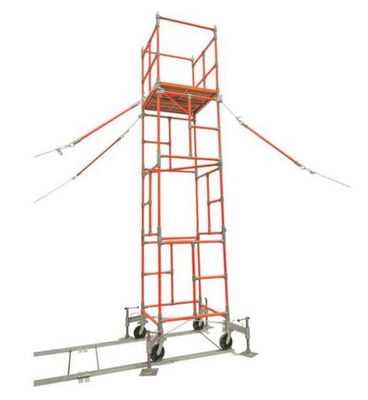

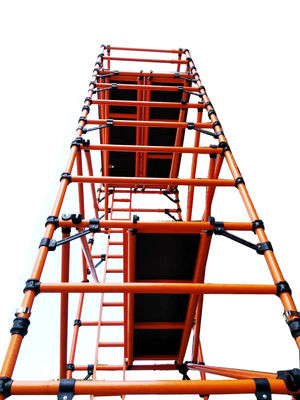

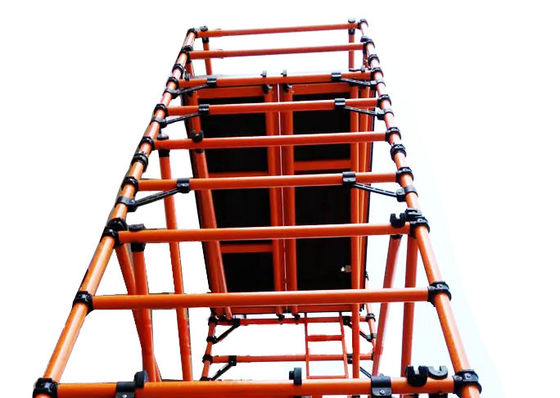

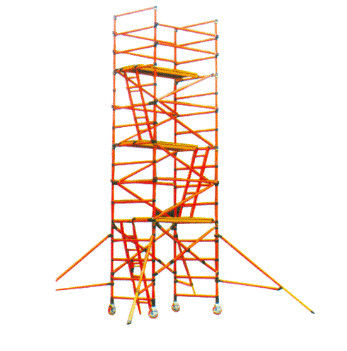

Modular Insulated Scaffolding Easy Assemble Dismantle Scaffolding Insulation
Insulated Scaffolding which are made by fiberglass reinforced plastic, are used for live line inspection at Power substation.
1.Main material:
1.1 Frame : Foam filled fiberglass tube in Orange.
1.2 Plat : Insulation board.
1.3 Strengthen Bar: Foam filled fiberglass tube in Orange.
1.4 Joint Part:High Aluminium Alloy
2. Character:
2.1 It is made by foam filled tube,so that can keep the moisture out .
2.2 It can be used up to 800KV.
2.3 High Mechanical resistant to bending and twist
2.4 It can be afford 300KG weight.
2.5.High Resistant to bad weather and corrosion element
2.6 easy to assemble and to move.
3. Sizes of 2 types of the modules,Customized Model Available as well:
- 1m x 1m modules
- 1m x 2m w/ 5 pins modules
4.Foot Type:We have two type Adjusted and Movable of Insulated Scaffolding foot
Light Weight Insulated Scaffolding size
| No. | Products Code |
Size M |
Max. Standing M |
Platform Mold |
Rope | Load Capacity kg |
| 1 | 220051 | 5 | 5.00 | 1M*1M | 45M | 300 |
| 2 | 220052 | 5 | 5.00 | 1M*2M | 45M | 300 |
| 3 | 220081 | 8 | 8.00 | 1M*1M | 91M | 300 |
| 4 | 220082 | 8 | 8.00 | 1M*2M | 91M | 300 |
| 5 | 220101 | 10 | 10.00 | 1M*1M | 91M | 300 |
| 6 | 220102 | 10 | 10.00 | 1M*2M | 91M | 300 |
| 7 | 220121 | 12 | 12.00 | 1M*1M | 183M | 300 |
| 8 | 220122 | 12 | 12.00 | 1M*2M | 183M | 300 |
