Specialized Live Line Tools- High Voltage Switch & disconnect sticks

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001:2008
Model Number 214001-214006
Minimum Order Quantity 100 Piece/Pieces
Price Negotiate
Packaging Details suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement.
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Fiberglass Weight Lightweight
Product Description

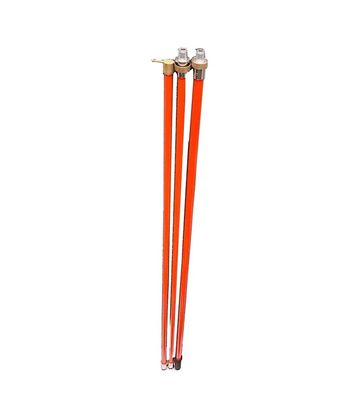

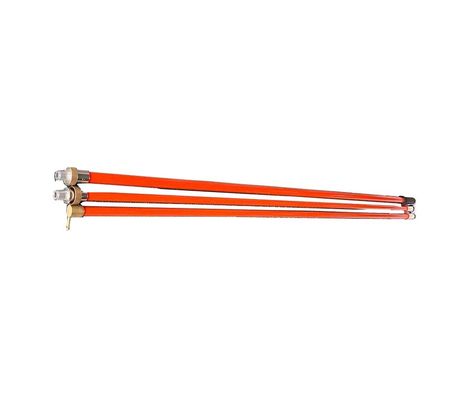

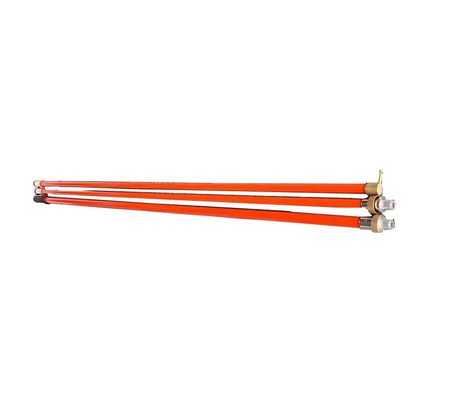

Specialized Live Line Tools- High Voltage Switch & disconnect sticks



Switch Sticks ,also named disconnect sticks, used for opening and closing disconnect switches or cutouts and also used for installing and removing open-link fuse links.
Switch stick are made of foam filled epoxy fiberglass tube and cast bronze in 3 types : standard Prong head ,Heavy duty prong head or insulation prong head. It is also can be made by customer ordered head.

Specialized Live Line Tools- High Voltage Switch & disconnect sticks 0



Disconnect hot sticks — One Section — Standard duty
No. Products Code Dimension Weight
in. x ft. mm x m kg
1 214001 1.25 x 4.0 31.7 x 1.2 1.5
2 214002 1.25 x 6.0 31.7 x 1.8 2.0
3 214003 1.25 x 8.0 31.7 x 2.4 2.6
4 214004 1.25 x 10.0 31.7 x 3.0 3.3
5 214005 1.25 x 12.0 31.7 x 3.6 4.0
6 214006 1.25 x 14.0 31.7 x 4.3 4.8





Disconnect hot sticks — One Section — Heavy duty
No. Products Code Dimension Weight
in. x ft. mm x m kg
1 214007 1.5 x 8.0 38.1 x 2.4 3.1
2 214008 1.5 x 10.0 38.1 x 3.0 3.7
3 214009 1.5 x 12.0 38.1 x 3.6 4.3
4 214010 1.5 x 14.0 38.1 x 4.3 4.9
5 214011 1.5 x 16.0 38.1 x 4.9 5.5
6 214012 1.5 x 18.0 38.1 x 5.5 6.2
7 214013 1.5 x 20.0 38.1 x 6.0 7.1





Disconnect hot sticks — Two Section
No. Products Code Top Bottom
in. x ft. mm x m in. x ft. mm x m
1 214014 1.25 x 4.0 31.7 x 1.2 1.25 x 4.0 31.7 x 1.2
2 214015 1.25 x 5.0 31.7 x 1.5 1.25 x 5.0 31.7 x 1.5
3 214016 1.25 x 6.0 31.7 x 1.8 1.25 x 6.0 31.7 x 1.8
4 214017 1.25 x 7.0 31.7 x 2.1 1.25 x 7.0 31.7 x 2.1
5 214018 1.25 x 6.0 31.7 x 1.8 1.5 x 8.0 38.1 x 2.4
6 214019 1.25 x 8.0 31.7 x 2.4 1.5 x 8.0 38.1 x 2.4
7 214020 1.25 x 8.0 31.7 x 2.4 1.5 x 10.0 38.1 x 3.0
8 214021 1.25 x 10.0 31.7 x 3.0 1.5 X 10.0 38.1 X 3.0





Disconnect hot sticks — Three Section
No. Products Code Top & Middle Bottom
in. x ft. mm x m in. x ft. mm x m
1 214022 1.25 x 4.0 31.7 x 1.2 1.5 x 4.0 38.1 x 1.2
2 214023 1.25 x 5.0 31.7 x 1.5 1.5 x 5.0 38.1 x 1.5
3 214024 1.25 x 6.0 31.7 x 1.8 1.5 x 6.0 38.1 x 1.8
4 214025 1.25 x 8.0 31.7 x 2.4 1.5 x 6.0 38.1 X 1.8
Specialized Live Line Tools- High Voltage Switch & disconnect sticks 1



Specialized Live Line Tools- High Voltage Switch & disconnect sticks 2

Packing and Shipping:

Packaging and Shipping for Live Line Tools
  • The product will be securely packaged to ensure its safe transportation.
  • The product will be shipped using a third-party courier service.
  • The product will be shipped with tracking information.
  • The customer will be provided with the tracking information once the product has been shipped.
