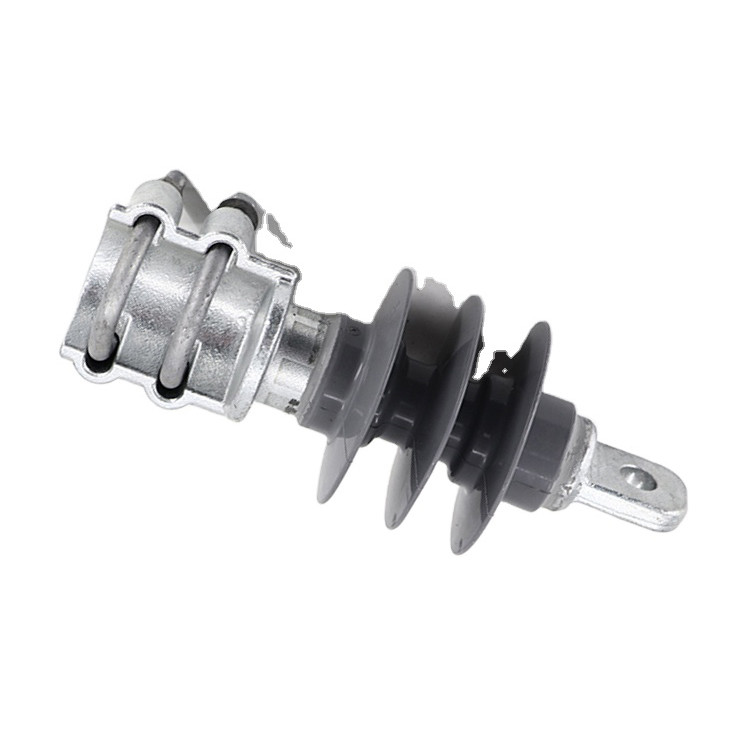

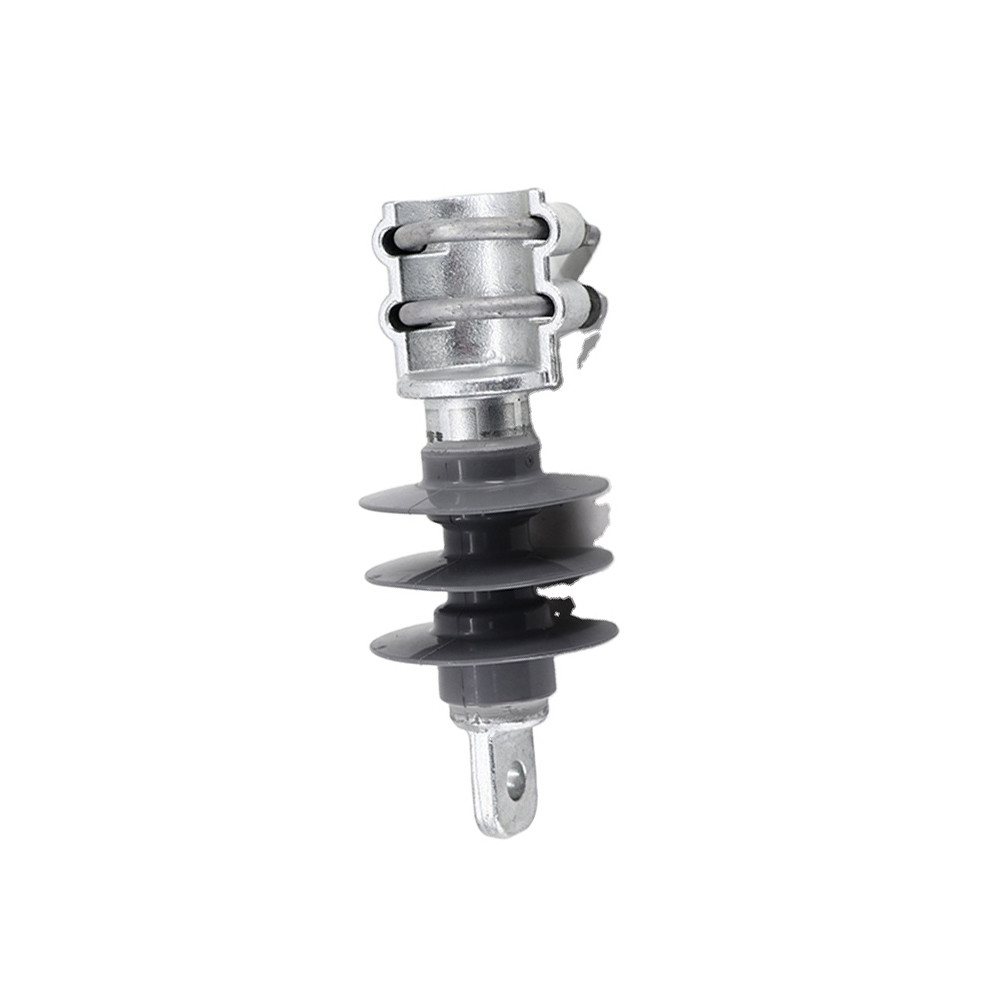

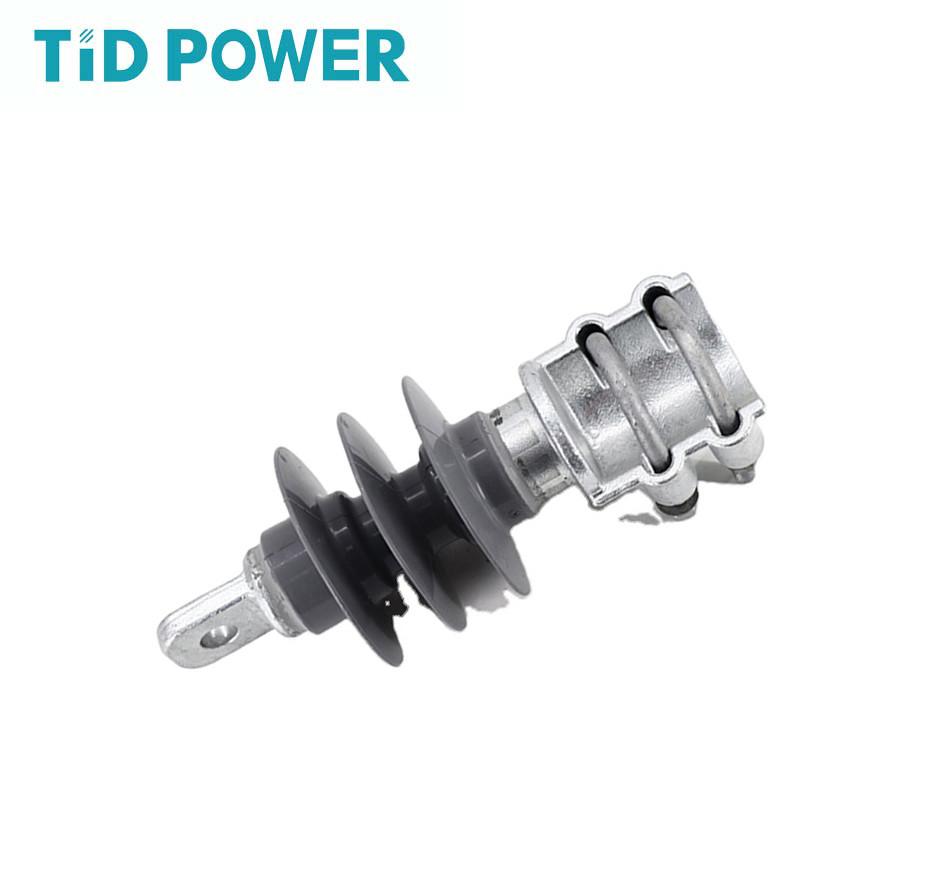

High Strength Silicone Rubber Cross Arm Insulator

Place of Origin China
Brand Name TID POWER
Certification TEST REPORT/ISO9001
Model Number T0301-T0303
Minimum Order Quantity 100.0 Piece
Price Negotiate
Packaging Details Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film
Delivery Time According to the quantity
Payment Terms T/T, L/C
Supply Ability 18000 Piece/Pieces / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Railway Voltage Class 3kv
Material Silicone Rubber,fiberglass Rod,Insulator Fittings Color Gray
High Light

Gray Train Insulators 25kv

,

Train Insulators High Tensile Strength 25kv

,

Silicone Rubber Insulator Railway

Product Description

High Strength Silicone Rubber Cross Arm Insulator

Product Description of High Strength Silicone Rubber Cross Arm Insulator :

Railway Insulator is a composite insulator used for railway applications. It is specially designed to protect railway lines from electric power failure. It has high voltage classes of 1.5kv, 1.8kv, 3kv and 25kv. The insulator is made of a high quality composite material that is resistant to corrosion and impact. It also has a gray color with excellent outdoor performance. The composite railway insulator post and spindle provide superior insulation and stability. The insulation properties of the insulator make it a reliable choice for railway applications. It is also lightweight and easy to install. The composite railway insulator provides high safety and reliability for railway lines.



Produds Code Voltage KV)

SML

(KN)

Bending Strength

(kN)

Section Lengh

(mm)

Arcing

Distance

(mm)

Creepage

Distance

(mm)

Wet Power

Frequency

Wthstand

Voltage(kV)

Lighting Impulsed Withstand Voltage(kV)

Tongue Fittng Eye Size

(mm)

U Fitting Size

(mm)

T0301 3 50 6 315 170 350 15 95 18 55
T0302 3 50 6 315 170 350 15 95 21 55-70
T0303 3 50 6 315 170 350 15 95 21 57-77
