High Voltage Live Line Tools Temporary Conductor Support

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001:2008
Model Number 231001-231004
Minimum Order Quantity 100 Piece/Pieces
Price Negotiate
Packaging Details suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement.
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application High Voltage Certificate CE, ROHS, ISO 9000
Material Fiberglass Tube And Fitting Standard IEC 60855, GB 13398
Feature Good Rigidity Samples Supply
Color Yellow Or Orange Port Shanghai Or Other Port In China
High Light

High Voltage Live Line Tools 1300mm

,

High Voltage Temporary Conductor Support

,

Temporary Conductor Support Live Work 1300mm

Product Description

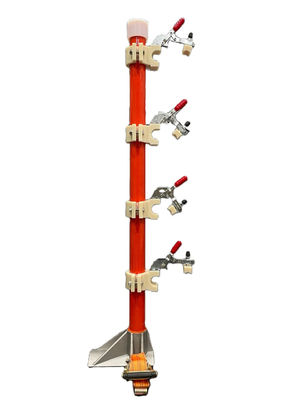

High Voltage Live Line Tools Temporary Conductor Support



Product:

1.Description of High Voltage Live Line Tools Temporary Conductor Support



The FRP temporary crossbar is made of moisture-proof small closed-cell foam filled with high-strength epoxy fiberglass tube as the insulating body , equipped with an insulated O- lock clamp , as well as a lightweight high-strength aviation aluminum holding rod base and nylon with ratchet holding rod locking system . The product has the characteristics of good insulation performance , high mechanical strength , small weight and easy installation , and is widely used in temporary wire support tools when working with electricity .



2.The feature of High Voltage Live Line Tools Temporary Conductor Support

Product Features:

• Quick installation and removal

• The pawl connector has a spacious handle for easy operation with rubber gloves

• 50 mm*1300mm nylon strip , can adapt to most pole structure

(Note: Belts with wear belts need to be checked regularly)



High Voltage Live Line Tools Temporary Conductor Support 0High Voltage Live Line Tools Temporary Conductor Support 1



3. Specification table of High Voltage Live Line Tools Temporary Conductor Support

Code Description of Products

Max Voltage Phase

to Phase(kV)

Max

Load/Holder(kg)

231001 0.86 M Overall Length with 1 Conductor Holder 15/35 200
231002 0.86 M Overall Length with 2 Conductor Holder 35/35 100
231003 1.20M Overall Length with 3 Conductor Holder 15 65
231004 1.2 M Overall Length with 4 Conductor Holder 15 50



FAQ:

1. Are you a manufacturer or a trader?
* We are the manufacturer, 15 years of production experience;
* The factory has passed ROSH, SGS certification;
* Standard :IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years working experience in export.
* Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to the above reference documents;
* Custom products: Please tell us
** Special material requirements;

Choose us, we will provide you with a full range of technical services!
We warmly welcome you to join us!
We are eager to maintain permanent cooperation with you!
