Portable Earthing Set - Hot Line Tools For Electric Security
| Place of Origin | CN;SHA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001:2008 |
| Model Number | 0.4 KV-500 KV |
| Minimum Order Quantity | 100.0 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement. |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | High Voltage | Certificate | ISO 9001:2008 |
|---|---|---|---|
| Ground Pin | Hot Dip Galvanized | Stick Material | Fiberglass |
| Wire | Cooper | Samples | Supply |
| Color | Yellow,red,customized | Standard | IEC 60855 |
| High Light | Portable Earth Set Live Line Tools,Portable Earth Set Hot Line Tools,Electric Security Tools Live Line Tools |
||
Product Description
Portable Earthing Set - Hot Line Tools For Electric Security
Product:
Character of Portable Earthing Set - Hot Line Tools For Electric Security
"0.4-500kV portable grounding set for hot line tools" refers to a safety equipment kit used in electrical power systems maintenance or utility work. This set is designed to provide grounding and safety measures when working on live electrical equipment or power lines.
Characteristic of Portable Earthing Set - Hot Line Tools For Electric Security
1. Grounding Cables: These are heavy-duty cables used to establish a secure electrical connection between the power line or equipment being worked on and the grounding system. They are often made of copper or aluminum for conductivity and durability.
2. Grounding Clamps: These are specialized clamps attached to the ends of the grounding cables. They securely connect the cables to the power line or equipment, ensuring a proper grounding connection.
3. Grounding Rods: These are metal rods that are driven into the ground to create a safe path for electrical current to dissipate.
| Earthing Set | ||||||||
|
Voltage |
0.4kV | 15kV | 25kV | 35kV | 132kV | 220kV | 500kV | |
| Products Code | 526004 | 526015 | 526025 | 526035 | 526132 | 526220 | 526500 | |
|
Fiberglass hot stick
|
Color | Yellow/orange | Yellow/orange | Yellow/orange | Yellow/orange | Yellow/orange | Yellow/orange | Yellow/orange |
| Diameter | 32mm | 32mm | 32mm | 32mm | 32mm | 32mm | 32mm | |
| Length | 0.5M*1=0.5M | 1.5M*1=1.5M | 1.5M*1=1.5M | 1.5M*1=1.5M | 1.5M*2=3M | 1.5M*2=3M | 2M*4=8M | |
| Quantity | 4pcs | 3pcs | 3pcs | 3pcs | 3pcs | 3pcs | 3pcs | |
|
Conductor Clamp |
Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Open | 35mm | 35mm | 35mm | 35mm | 52mm | 52mm | 70mm | |
| Quantity | 4pcs | 3pcs | 3pcs | 3pcs | 3pcs | 3pcs | 3pcs | |
| Copper wire | Diameter | 25mm2 | 25mm2 | 25mm2 | 25mm2 | 35mm2 | 50mm2 | 90mm2 |
| Length |
2M*4pcs+18M =26M |
1.5M*3pcs+11M =15.5M |
1.5M*3pcs+12M =16.5M |
1.5M*3pcs+15M =19.5M |
3M*3pcs+15M =24M |
8M*3pcs+19M =43M |
12M*3pcs =36M |
|
|
Grounding Pin |
Material | Steel | Steel | Steel | Steel | Steel | / | / |
| Size | 16mm*0.8M | 16mm*0.8M | 16mm*0.8M | 16mm*0.8M | 16mm*0.8M | / | / | |
| Quantity | 1pc | 1pc | 1pc | 1pc | 1pc | / | / | |
| Grounding Clamp | Material | Aluminum /Copper | Aluminum/ Copper | Aluminum /Copper | Aluminum/ Copper | Aluminum /Copper | Aluminum/ Copper | Aluminum/Copper |
| Quantity | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | |
| Bag | Color | Green | Green | Green | Green | Green | Green | Green |
| Quantity | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs | |

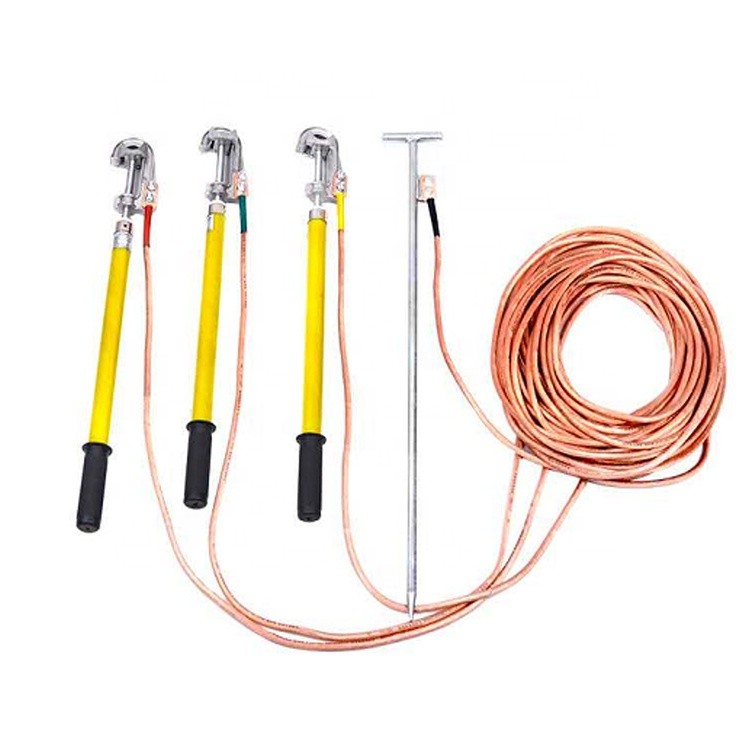

The pictures of Portable Earthing Set - Hot Line Tools For Electric Security
FAQ:
1. Are you a manufacturer or a trader?
* We are the manufacturer, 15 years of production experience;
* The factory has passed ROSH, SGS certification;
* Standard :IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years working experience in export.
* Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to the above reference documents;
* Custom products: Please tell us
** Special material requirements;
Choose us, we will provide you with a full range of technical services!
