High Strength Epoxy Fiberglass Insulation Hollow Tube / Epoxy Resin Fiberglass Pipes

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001
Model Number TEHT
Minimum Order Quantity 50 Meter/Meters
Price Negotiate
Packaging Details Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Shaanxi, China Brand Name TID POWER
Material Epoxy Resin Fiberglass Length Customer Length
Shape Round,square, Triangle Application High Voltage
Highlight

High Strength Epoxy Fiberglass Tube

,

Epoxy Resin Fiberglass Pipes

,

Hollow Epoxy Fiberglass Tube

Product Description

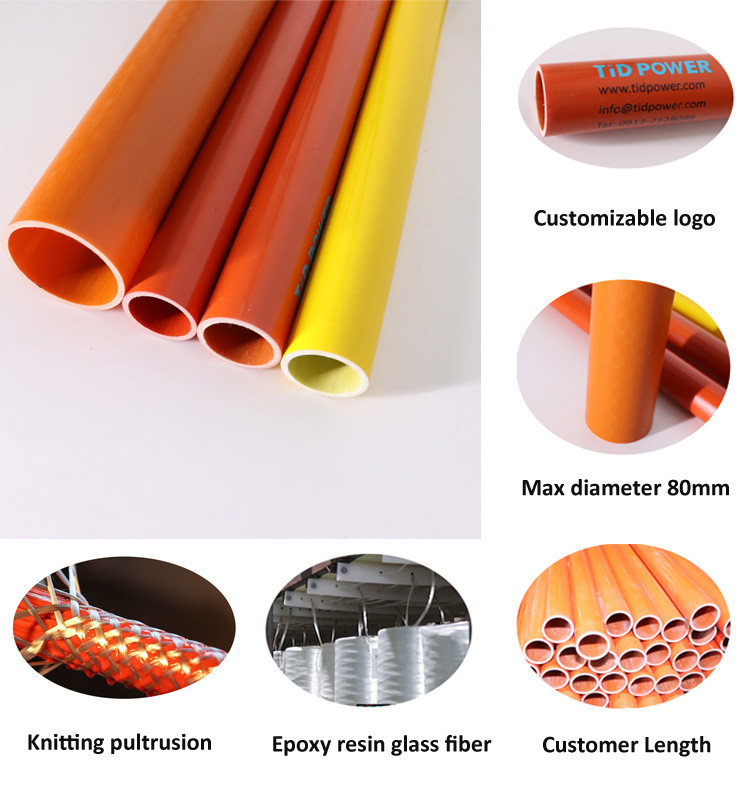

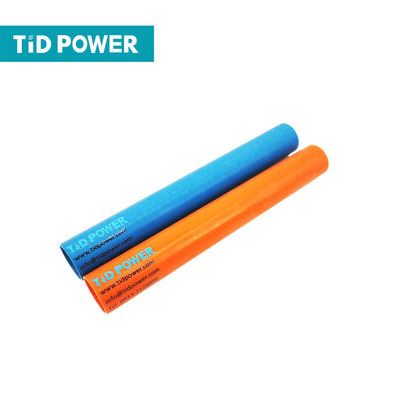

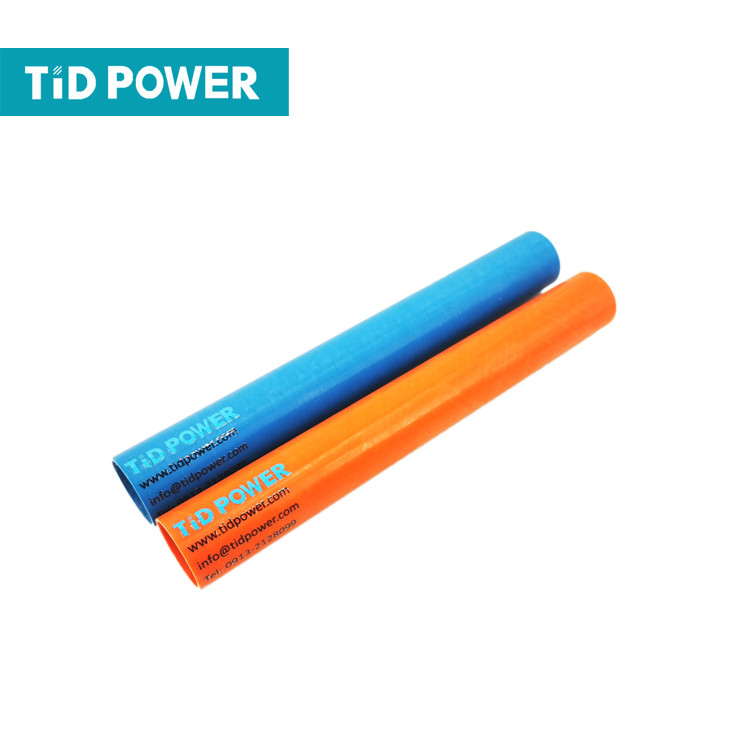

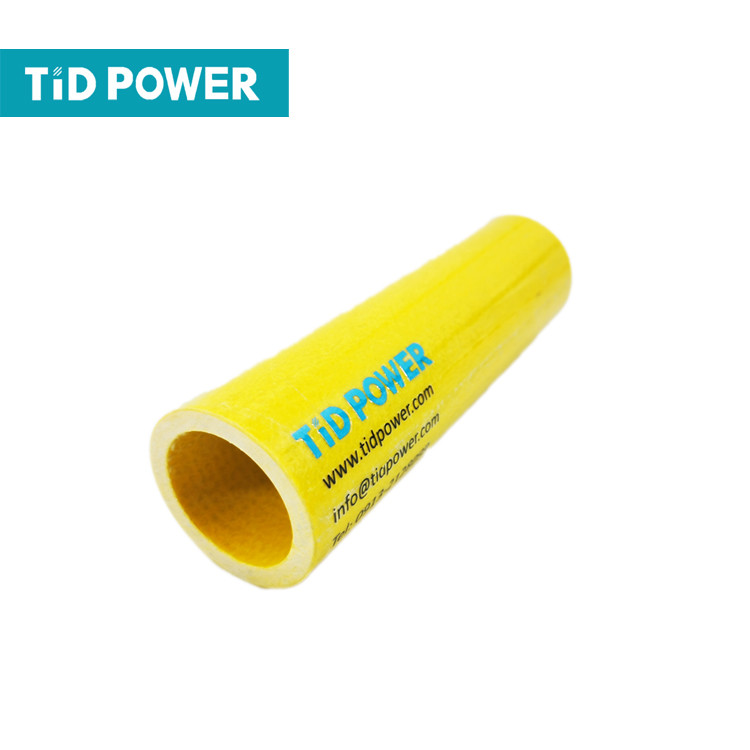

High Strength Epoxy Fiberglass Insulation Hollow Tube / Epoxy Resin Fiberglass Pipes



Product

1 The feature of High Strength Epoxy Fiberglass Insulation Hollow Tube / Epoxy Resin Fiberglass Pipes :

Fiberglass pipes belong to the category of insulating tubes, and the materials used for glass fiber tubes are glass fiber yarn and resin. The glass fiber tube forming process involves impregnating the glass fiber filament with resin and curing it in a high-speed polymerization device that integrates light and electricity, followed by traction and extrusion molding.



No.

Type

D(mm)

d(mm)

Thickness(mm)

Ref.Weight

(g/m)

Color

L (mm)

1

TEHC16/10

16

10

2.0

179



Red Orange or Bright Yellow

According to customer requirement

2

TEHC20/16

20

16

2.0

240

3

TEHT26/20

26

20

3.0

476

4

TEHT30/25

30

25

2.5

474

5

TEHT30/26

30

26

2.0

386

6

TEHT32/26

32

26

3.0

601

7

TEHT32/26.5

32

26.5

2.75

555

8

TEHT32/26.8

32

26.8

2.6

406

9

TEHT32/27

32

27

2.5

509

10

TEHT38/32

38

32

3.0

725

11

TEHT44/32

44

32

6.0

1575

12

TEHT50/45

50

45

2.5

734

13

TEHT50.5/45

50.5

45

2.75

907

14

*TEHT50.5/45

50.5

45

2.75

907

15

TEHT55/45

55

45

5.0

1727

16

TEHT63.5/50

63.5

50

6.75

5292

17

TEHT63.7/50.3

63.7

50.3

6.7

2638

18

TEHT70/45

70

45

12.5

4965

19

TEHT80/56

80

56

12

5636

20

TEHT100/90

100

90

5

3281

21

Note:

1. Any other shape if you need,please send us drawings,we can producing accordingly.

2. * means the tube with anti-slip surface.



2. More details of High Strength Epoxy Fiberglass Insulation Hollow Tube / Epoxy Resin Fiberglass Pipes

High Strength Epoxy Fiberglass Insulation Hollow Tube / Epoxy Resin Fiberglass Pipes 0 High Strength Epoxy Fiberglass Insulation Hollow Tube / Epoxy Resin Fiberglass Pipes 1




FAQ:

1.Is your company a manufacturer or a trader?

* We are the manufacture, 15 years production experience;

* our factory has passed ROSH, SGS, etc;

* Standard: IEC standard;

* Have own quanlity control.

2.Do you have export experience?

* More than 10 years export experience.

*TID products have been exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, USA, Costa rica ,Brazil etc.

3.Delivery time?

*Samples: 3-7 days; order: 30 days or according to the order quantity.

4.Do you accept OEM/ODM?

* Yes, we have several customer ask OEM/ODM, we'll do what you tell us!

Choose US, We shall provide you with all-round technical service!

We warmly welcome you to join us!

We are eager to keep permanent cooperation with you!
