High Voltage Induction Detector / Electric Security Tester

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001:2008
Model Number 593001
Minimum Order Quantity 10.0 Piece/Pieces
Price Negotiate
Packaging Details suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement.
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application High Voltage Certificate ISO 9001
Stick Material Fiberglass Protection Level IP 65
Color Yellow,red,customized Standard IEC 60855
High Light

Induction Detector Hot Line Tester IP65

,

Hot Line Tester High Voltage

,

IP65 High Voltage Line Inspection Electric

Product Description

High Voltage Induction Detector / Electric Security Tester

Product:

1.Character of High Voltage Induction Detector / Electric Security Tester

Used for on-site high-voltage line inspection , identification of high-voltage system voltage level , inspection of high-voltage line faults , repair of neon lights , high- pressure sodium lamps , inspection of induced voltage , inspection of residual high voltage or induced voltage , etc.

2. Characteristic of High Voltage Induction Detector / Electric Security Tester

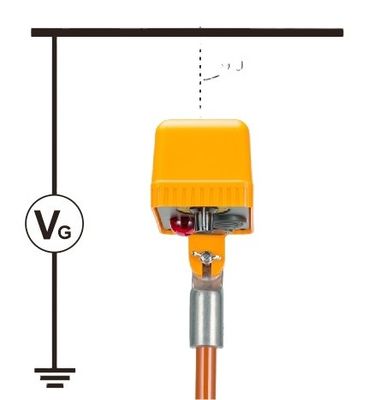

  *Adopting non-contact induction technology , no need to touch the charged body , ensuring the safety of the operator .

  *Bright red LED and harsh buzzer sound and light alarm , easy to identify .

  *9 voltage levels cover various voltage levels . The voltage level can be customized according to user needs .

4 . The self-check function ensures the accuracy of the electric test .



Test voltage level and Gear

Type Gear
593001 OFF--TEST--380V--6.6KV--10KV--35KV--66KV--110KV--220KV--330KV--500KV
593002 OFF--TEST--240V--3.3KV--6KV--11KV--22KV--33KV--66KV--132KV--275KV



Technical Data Sheet

Features On-site high-voltage inspection, identify high-voltage system voltage levels, inspect high-voltage line faults, repair neon lamp induced voltage, check residual high voltage or induced voltage, etc.
Power Zinc-manganese dry battery 6F22, 9V
Voltage Gear 9 Gear
Votlage Range 1 10V ~ 500KV ( TID1820 ) 1 10V ~ 275KV ( TID1820B )
Electrical inspection instructions Red double flashing LED indicator
Beep-beep-beep" beep
Self-check function Turn the knob to the "TEST" gear, the indicator light is on, and the buzzer "beep -"
Low battery voltage indication When the detector battery voltage drops below 7.2V ± 0.1V, the LED indicator flashes slowly to remind you to replace the battery.
Protection level IP65
Instrument weight

Instrument: 520g (including battery); total mass of packaging and insulating

rod: about 4.6kg

Instrument size 300mm ×273mm ×85mm
Insulation rod length Maximum diameter: Φ 38mm; length: 1000mm in contracted state; 4500mm in extended state
Insulation test

Both ends of the insulating rod after stretching: AC 220kV/rms

Receiver, detector: AC3700V/rms (between exposed metal and plastic housing)

Working temperature and humidity -10℃ ~ 40℃; 80%rh blow.
Storage temperature and humidity -10℃ ~ 60℃; 70%rh below

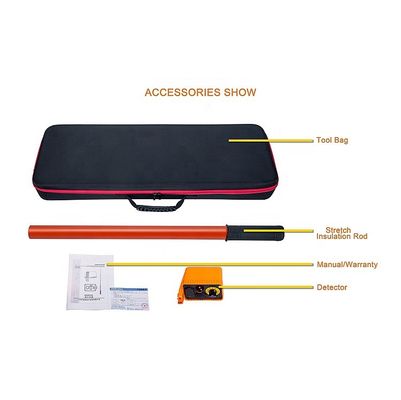

Random accessories Detector: 1 piece, telescopic insulating rod: 1 piece, battery 9V6F66: 1 section, tool kit: 1 piece

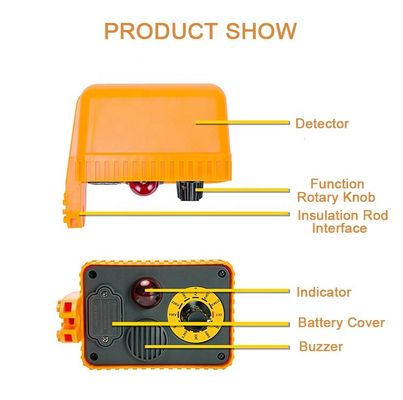

The pictures of High Voltage Induction Detector / Electric Security Tester

High Voltage Induction Detector / Electric Security Tester 0
