High and low Voltage Clamp Leakage Current Meter

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001:2008
Model Number 593201
Minimum Order Quantity 10.0 Piece/Pieces
Price Negotiate
Packaging Details suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement.
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Method Clamp CT, Integral Method Measuring Range 0 .01A ~ 1200A (50/60Hz Automatic)
Jaw Size φ45 Mm Sampling Rate 2 Times/sec
Color Orange,customized Standard IEC 60855
Insulation Rod Size φ32 Mm, 0.9 M/ Section( 5 Sections) Resolution 0.01 MA
Highlight

Clamp CT Live Line Tools

,

Live Line Tools Hot Line Tools

,

Clamp CT Leakage Current Clamp Meter

Product Description

High and low Voltage Clamp Leakage Current Meter



Product:

1.Character of High and low Voltage Clamp Leakage Current Meter
The high and low voltage clamp leakage current meter has the characteristics of moisture resistance , high temperature resistance , impact resistance , bending resistance , high insulation ,and scalability; it is mainly used for high voltage AC current measurement , low voltage AC current , leakage current measurement , andonline AC current monitoring .



2. Technical specifications of High and low Voltage Clamp Leakage Current Meter

Function

High-voltage AC current measurement, low-voltage AC current, leakage current measurement, online

Power

AC current monitoring

Detector: DC6V (1 .5V, alkaline dry battery LR03X4 sections)

test method

Clamp CT, integral method

display mode

4-digit LCD display, backlight function, suitable for dark places

PEAK hold

Automatically maintain the test value at a high place, usually press the PEAK key in the test mode, the PEAK light is on, that is, the PEAK hold function is turned on, and then press the PEAK key to cancel this function

LCD display field

47mm ×30mm

Meter size

76mm ×255mm ×31mm

Jaw size

φ45mm

sampling rate

2Time/S

Measuring range

0.01mA ~ 1200A(50/60HzAuto)

Resolution

0.01mA

shift gears

0.01mA ~ 1200A fully automatic shift

Test accuracy

(23℃±5℃ below 80%RH)

0.00mA ~ 299mA: ± 1% ±7dgt

0.30A ~ 49.9A: ± 1.5% ±5dgt

50.0A ~ 300A: ±2% ±5dgt

300A~1200A: ±4% ±5dgt

data storage

99 groups, "MEM" symbol indication during the storage process, "FULL" symbol flashes to indicate that the storage is full

line voltage

AC 35KV and below or 60KV and below with insulation layer line test

data retention

n normal test mode, press the HOLD key to keep the data "HOLD" symbol displayed, and then press the HOLD key to cancel the hold

data review

"MR" symbol indication, can browse the stored data up and down

overflow display

Over-range overflow function: "OL A" symbol display

Automatic shut-down

After starting for about 15 minutes, the meter will automatically shut down to reduce battery consumption

Bluetooth

Equipped with Android APP, with Bluetooth transmission function, convenient communication with mobile phones

battery voltage

When the battery voltage is low, the indicator will display the low battery voltage symbol "



", reminding to replace the battery or charge it in time

Instrument weight

Detector: about 335g (including battery)

Total meter: about 3Kg (including insulating rod and battery)

Working temperature

and humidity

- 10℃ ~ 40℃; 80%Rh and below

storage temperature and

humidity

- 10℃ ~ 60℃; 70%Rh and below

Insulation rod size

φ32mm , 0.9m/section (5section)

Dielectric strength

AC 60kV/rms(5Section insulating rods are all connected, between the two ends)

structure

Anti-drip type II

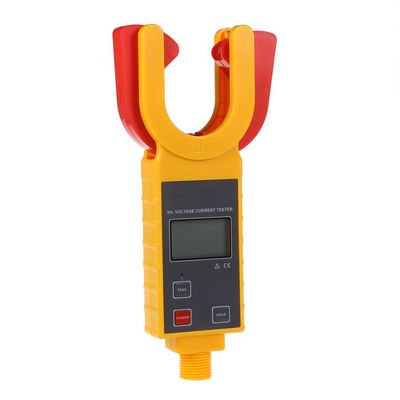

3 The pictures of High and low Voltage Clamp Leakage Current Meter


High and low Voltage Clamp Leakage Current Meter 0
