Customized High Voltage Clevis Y End Fitting for Polymer Insulator

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001
Model Number Y
Minimum Order Quantity 100.0 Piece/Pieces
Price Negotiate
Packaging Details Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Y-Clevis End Fitting Brand Name TID POWER
Material Steel With H.D.G CERTIFICATE ISO9001
Galvanizing Thickness Above 86 μm Insulator Tensile Strength Covers 70KN/100KN/120KN/210KN
High Light

Customized Insulator End Fitting

,

High Voltage Insulator Clevis Y

,

Polymer Insulator Clevis Y

Product Description

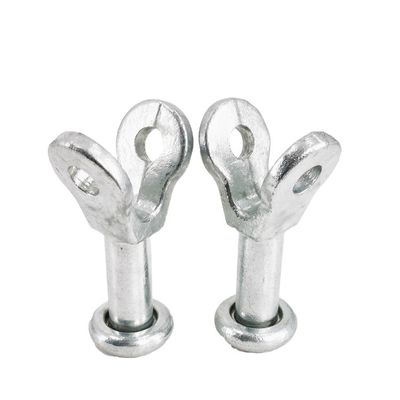

Customized High Voltage Clevis Y End Fitting for Polymer Insulator

1. Product Description:

Insulator Y-Clevis connection hardware is a connecting device used for power transmission and distribution lines, which is used to connect multiple insulator strings to form a Y-shaped support structure. It is usually made of metal materials, with high strength and good corrosion resistance.



2.The function of Customized High Voltage Clevis Y End Fitting for Polymer Insulator

The function of insulator Y-Clevis connection fittings is to connect multiple insulator strings together and hang them on the supporting equipment of power lines (such as power towers, poles, etc.). It ensures that the insulator string can withstand line tension, wind loads, and other external forces by providing stable support and connection, while maintaining the safe and reliable operation of the line.



3. Detail informaitons for Customized High Voltage Clevis Y End Fitting for Polymer Insulator

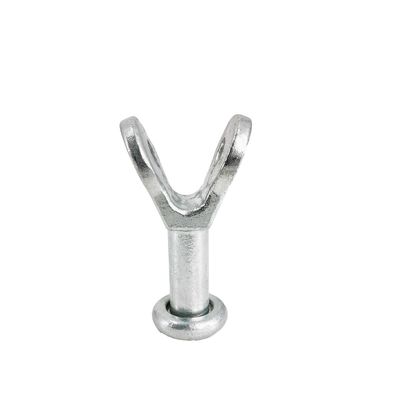

Y clevis

1. Applied Standard:IEC61466.1,ISO1461.

2.Material: HDG steel.

3.Surface treatment: HDG with zinc thickness higher than 86 μm.

Customized High Voltage Clevis Y End Fitting for Polymer Insulator 0

No.

Products Code

Type

Tension Load (kN)

L1

(mm)

L2

(mm)

L3

(mm)

D1

(mm)

OD

(mm)

ID

(mm)

1

Y70-18-001

Y

70

134

112

60

Φ17.5

29

18

2

Y100-18-001

Y

100

160

136

80

Φ20

28.8

18

3

Y120-18-001

Y

120

 153

 125

72

Φ23

29

18

4

Y210-24-001

Y

210

 205

175

102

Φ27

38

24

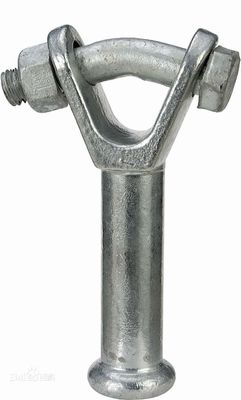

Customized High Voltage Clevis Y End Fitting for Polymer Insulator 1
