Cross Arm Railway Insulator Fitting

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001
Model Number RT / RU
Minimum Order Quantity 100.0 Piece/Pieces
Price Negotiate
Packaging Details Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Railway Cross Arm Insulator End Fitting Place Of Origin Shaanxi, China
Processing Technical Forging/Precision Casting STANDARD TB/T3199.2,ISO1461
Galvanizing Thickness Above 86 μm
High Light

High Voltage Insulator Fittings

,

Insulator Fittings Cross Arm ASTM 153

,

Cross Arm Insulator Fitting ASTM 153

Product Description

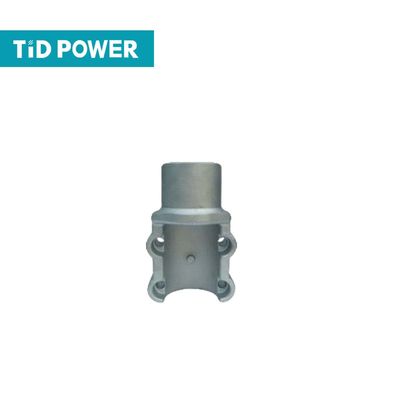

Cross Arm Railway Insulator Fitting
Product
1. Product Description of Cross Arm Railway Insulator Fitting
A cross arm insulator end fitting is a component used in electrical power distribution systems to support and insulate conductors on cross arms or poles

2.The function of Cross Arm Railway Insulator Fitting
The purpose of a cross arm insulator end fitting is to provide mechanical support and electrical insulation for the conductors. It is mounted on the end of a cross arm or pole and holds the conductor securely in place, preventing it from coming into contact with the grounded structure. This helps to maintain the integrity and safety of the electrical distribution system.

3. More detail informaitons of Cross Arm Railway Insulator Fitting
Cross arm insulator end fittings are available in various shapes and sizes to accommodate different conductor configurations and system voltages. They are designed to withstand the mechanical stress caused by wind, ice, and other environmental factors, as well as the electrical loads imposed by the conductors.

Railway Insulator fitting

1.Applied Standard:TB/T3199.2,ISO1461

2.Material: HDG steel.

3.Surface treatment: HDG with zinc thickness higher than 86 μm.

Cross Arm Railway Insulator Fitting 0

No.Products CodeType

L1

(mm)

L2

(mm)

L3

(mm)

OD

(mm)

ID

(mm)

Tongue

Thickness

(mm)

D1

(mm)

1RT-Φ18-16-38-001RT1239350543816Φ18
2RT-Φ21-16-38-001RT1239350543816Φ21
3RT-Φ21-19-38-001RT1239350543819Φ21
4RT-Φ22.5-17-45-001RT13310855634517Φ22.5


Cross Arm Railway Insulator Fitting 1

No.Products CodeType

L1

(mm)

L2 (mm)

OD

(mm)

ID

(mm)

Suitable

U bolt diameter (mm)

Suitable for tube

(mm)

1RU-M10-30-38-001RU1615554382-M1030
2RU-M10-50-38-001RU1615554382-M1050
3RU-M10-55-38-001RU1735554382-M1055
4RU-M10-55/70-38-001RU1735554382-M1055-70

Cross Arm Railway Insulator Fitting 2Cross Arm Railway Insulator Fitting 3
