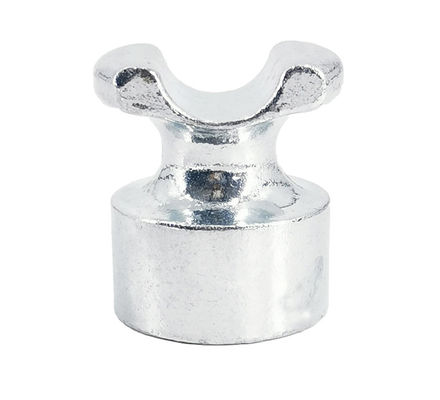

Customized Line Post Insulator End Fitting

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001:2008
Model Number TIE
Minimum Order Quantity 100 piece/pieces
Price Negotiate
Packaging Details suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement.
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Composite Insulator Shape Tie Style
Standard IEC61952,ISO1461 Material HDG Steel
High Light

Premium Insulator Fittings IEC61109

,

Customized Temperature Insulator End Fittings

,

IEC61109 Customized Thickness Insulator End Fittings

Product Description

Customized Line Post Insulator End Fitting

Product Description of Customized Line Post Insulator End Fitting

Insulator Fittings are insulation accessories used to make a secure connection for an electrical conductor. They are designed with high impact and heat resistance to provide superior performance and safety.

These high-quality Insulator Fittings come in round, square or rectangle shapes to suit different requirements. They are built to IEC61952 standards and available in green or brown colors. The insulation material used is highly resistant to heat and impact, ensuring a secure connection and reliable performance.

Our Insulator Fittings are ideal for electrical work, such as wiring, installations, maintenance, and repairs. They are widely used as insulator connectors in various industries, such as power line construction, oil and gas, and telecommunications.



Tie Top Fitting

1.Applied Standard:IEC61952,ISO1461

2.Material: HDG steel.

3.Surface treatment: HDG with zinc thickness higher than 86 μm.

Customized Line Post Insulator End Fitting 0

No. Products Code Type

L1

(mm)

L2

(mm)

OD

(mm)

ID

(mm)

D1

(mm)

R1 R2
1 TIE-25-25-34-001 TIE 77 25 47 34 115 R25 R25
2 TIE-12-12-38-001 TIE 68 38 54 38 60 R12 R12
3 TIE-14-14-38-001 TIE 70 32 52 38 55 R14 R14
4 TIE-25-25-40-001 TIE 77 52 53 40 115 R25 R25
5 TIE-25-25-44-001 TIE 75 50 62 44 115 R25 R25
6 TIE-25-25-44-002 TIE 75 54 60 44 75 R25 R25
7 TIE-25-25-50-001 TIE 75 54 66 50 81 R25 R25
8 TIE-25-25-50-002 TIE 77 52 63 50 115 R25 R25
9 TIE-25-25-34-002 Al -TIE 77 28 48 34 70 R25 R25



Customized Line Post Insulator End Fitting 1

No. Products Code Type

L1

(mm)

L2

(mm)

L3

(mm)

L4 (mm)

OD

(mm)

ID

(mm)

H

(mm)

R
10 TIE-HOLE-25-001 TIE -1 50 34 12 60 34 25 2-M8 R20
11 TIE-HOLE-38-001 TIE-1 60 35 10 86 54 38 2-M10 R25


Customized Line Post Insulator End Fitting 2


.
