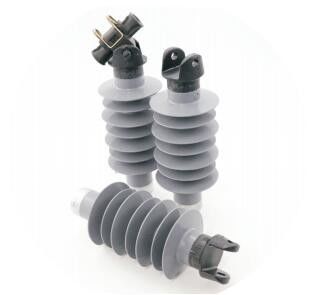

PA6 Post Silicone Rubber Insulator

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001:2008
Model Number IPS
Minimum Order Quantity 100 Piece/Pieces
Price Negotiate
Packaging Details 1. Economic Packing desgin which will save your transportation cost. 2. Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Strength High Strength Brand TID POWER
UV Yes,UV Resistance Port Shanghai Or Other Port In China
High Light

Uv Flame Retardant Silicone Rubber Insulator

,

Industrial Silicone Rubber Insulator 60kv

,

Overhead Insulators For Industrial 60kv

Product Description

PA6 Post Silicone Rubber Insulator

General data

• Specified cantilever load (SCL): 15 kN

• Ambient temperature range: T = -60 °C … +85 ºC

• Coat: silicone HTV

• Silicone colour: grey

• Material of top fitting: PA6, UV stabilized

• Material of steel end fitting: HDG steel

• Connector thread on bottom: M20 or M24

• Average layer of zinc: ≥ 85 µm

• Tested according to standards: IEC 62217, IEC 61952

PA6 Post Silicone Rubber Insulator



PA6 insulator without a clamp

PA6 Post Silicone Rubber Insulator 0PA6 Post Silicone Rubber Insulator 1

Type

Rated

Voltage

(kV)

Specified Mechanical Load(SML)

(kN)

Leakage Distance

L(mm)

Dry

Arcing Distance

(mm)

P.F. Withstand

Voltage Min,Wet (≧kV)

Lightning Impulse Withstand Voltage

(≧kV)

IPS 15-24-600 24 15 587 270 65 155
IPS 15-24-700 24 15 716 265 75 175
IPS 15-38-870 38 15 945 305 85 185
IPS 15-38-1100 38 15 1153 365 105 250



PA6 insulator with spring clamp



PA6 Post Silicone Rubber Insulator 2



Type

Rated

Voltage

(kV)

Specified Mechanical Load (SML)

(kN)

Leakage Distance

L(mm)

Dry

Arcing Distance

(mm)

P.F. Withstand

Voltage Min,Wet (≧kV)

Lightning Impulse Withstand Voltage

(≧kV)

IPS 15-24-600-FC 24 15 565 265 70 175
IPS 15-24-700-FC 24 15 695 265 75 175
IPS 15-38-870-FC 38 15 923 305 85 185
IPS 15-38-1100-FC 38 15 1131 365 105 250



PA6 insulator with screw clamp

PA6 Post Silicone Rubber Insulator 3

Type

Rated

Voltage

(kV)

Specified Mechanical Load (SML)

(kN)

Leakage Distance

L(mm)

Dry

Arcing Distance

(mm)

P.F. Withstand

Voltage Min,Wet (≧kV)

Lightning Impulse Withstand Voltage

(≧kV)

IPS 15-24-600-SFC 24 15 567 265 65 155
IPS 15-24-700-SFC 24 15 695 265 75 175
IPS 15-38-870-SFC 38 15 923 305 85 185
IPS 15-38-1100-SFC 38 15 1131 365 105 250
