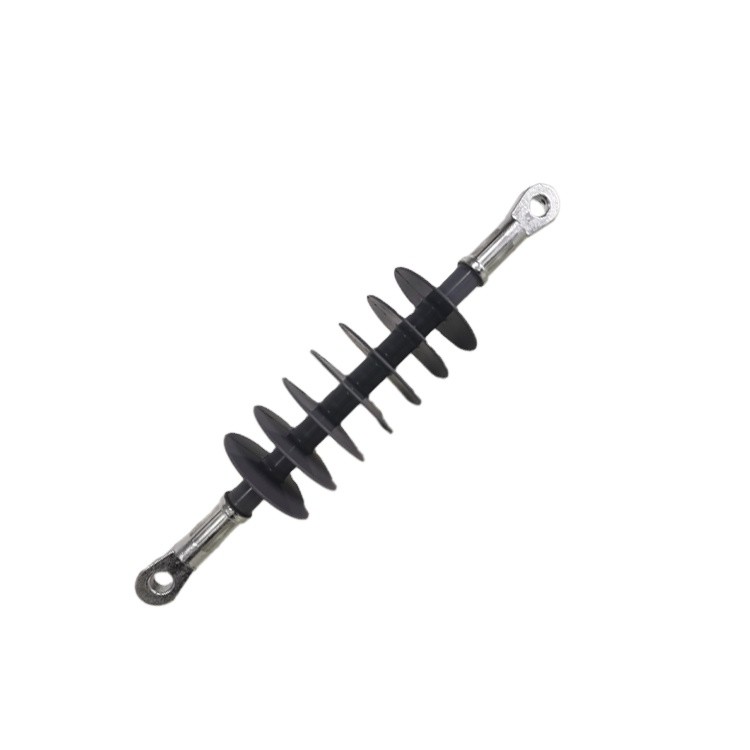

11kV -69kV Distribution Silicone Dead End/Suspension Withstand Polymer Insulator

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001:2008
Model Number FXB / FXBW
Minimum Order Quantity 100 Piece/Pieces
Packaging Details 1. Economic Packing desgin which will save your transportation cost. 2. Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Resistance High Insulation Resistance Strength High Tensile Strength
Size Customized Withstand Voltage 11 - 69kV
Brand TID POWER
High Light

45kv Overhead Line Insulator

,

Overhead Line Insulator High Withstand Voltage

,

45kv Polymer Post Insulator

Product Description

11kV -69kV Distribution Silicone Dead End/Suspension Withstand Polymer Insulator



Product Description of 11kV -69kV Distribution Silicone Dead End/Suspension Withstand Polymer Insulator

TID POWER provides high-quality overhead line insulators that are designed and manufactured according to customer specifications. Our insulators are made of polymer and silicone rubber materials, which offer superior performance and durability. The insulators are lightweight and can withstand high tensile strength, making them ideal for overhead line applications. The insulators come in a variety of sizes, including customized sizes, to meet the specific needs of our customers.

TID POWER's overhead line insulators are specifically designed for use in suspension systems. Our insulators are made of high-grade polymer and silicone rubber and offer superior performance and reliability. The insulators are lightweight and can withstand high tensile strength, making them ideal for overhead line applications. The insulators are available in various sizes and can be customized to meet the specific requirements of our customers.



11kV -69kV Distribution Silicone Dead End/Suspension Withstand Polymer Insulator 011kV -69kV Distribution Silicone Dead End/Suspension Withstand Polymer Insulator 111kV -69kV Distribution Silicone Dead End/Suspension Withstand Polymer Insulator 2

Note:

1. Applied standard:IEC61109.

2. Please select the fitting type when you order,The insulator info in the table below based on the type with Tongue & Clevis fittings.The section length maybe a little changed when change the fitting type, the insulator exactly drawing and detail info you need,please contact with our sales

No. Part No. Rated Voltage Tensile Load Section Length

Min Arcing

Distance

Creepage distance Power Frequency Withstand Voltage Lighting Impulse Withstand Voltage
kV kN mm mm mm Dry(kV) Wet(kV) Pos.(kV)
1 FXB-15/70 15 70 360±15 200 400 90 65 145
2 FXB-28/70 24 70 455±15 310 620 130 100 190
3 FXB-35/70 33 70 550±15 400 900 145 130 250
4 FXB-35/120 33 120 630±15 450 1230 180 150 310
5 FXB-46/70 46 70 600±15 450 1010 180 150 310
6 FXB-46/120 46 120 650±15 450 1010 180 150 310
7 FXB-69/70 69 70 745±15 495 1340 242 185 390
8 FXBW-69/120 69 120 860±15 650 2100 270 235 415



11kV -69kV Distribution Silicone Dead End/Suspension Withstand Polymer Insulator 3



TID POWER's overhead line insulators are designed to provide superior performance and reliability. Our insulators are made of high-quality polymer and silicone rubber materials, which offer superior performance and durability. The insulators are light in weight and can withstand high tensile strength, making them ideal for overhead line applications. The insulators are available in various sizes and can be customized to meet the specific requirements of our customers.

Packing and Shipping:

Packaging and Shipping of Overhead Line Insulator

All products shall be securely packed to protect the product from damage during transportation. The following are the packaging and shipping requirements for overhead line insulator:

The product should be packed in a box.

The box should be labeled with the product name, size, and the supplier's logo.

The box should be securely sealed to prevent dust, moisture and other external elements from entering.

The box should be placed on a pallet or skid for shipping.

The pallet should be secured with shrink wrap or other suitable material.

The shipping container should be clearly labeled with the product name and supplier's logo.



FAQ:

Overhead Line Insulator Questions & Answers:

Q: What is the brand name of the product?

A: The brand name of the product is TID POWER.

Q: What is the model number of the product?

A: The model number of the product is FXB / FXBW.

Q: Where is the product manufactured?

A: The product is manufactured in China.

Q: What certifications does the product have?

A: The product is ISO9001:2008 certified.

Q: What is the minimum order quantity?

A: The minimum order quantity is 100 pieces.
