Standard Export Round Telescoping Hot Stick

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001:2008
Model Number 211001-211013
Minimum Order Quantity 100 Piece/Pieces
Price Negotiate
Packaging Details suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement.
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard IEC61243-1:2003 Weight Light Weight
Application Live Line Maintenance Feature Telescopic
Product Description

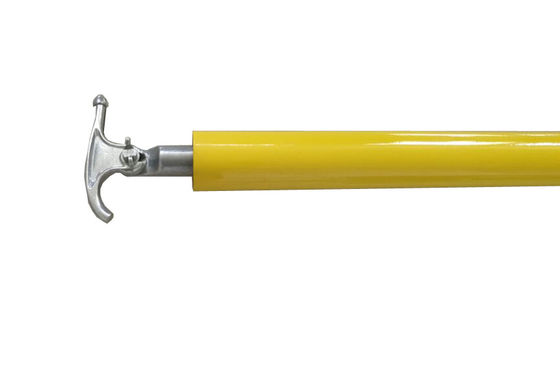

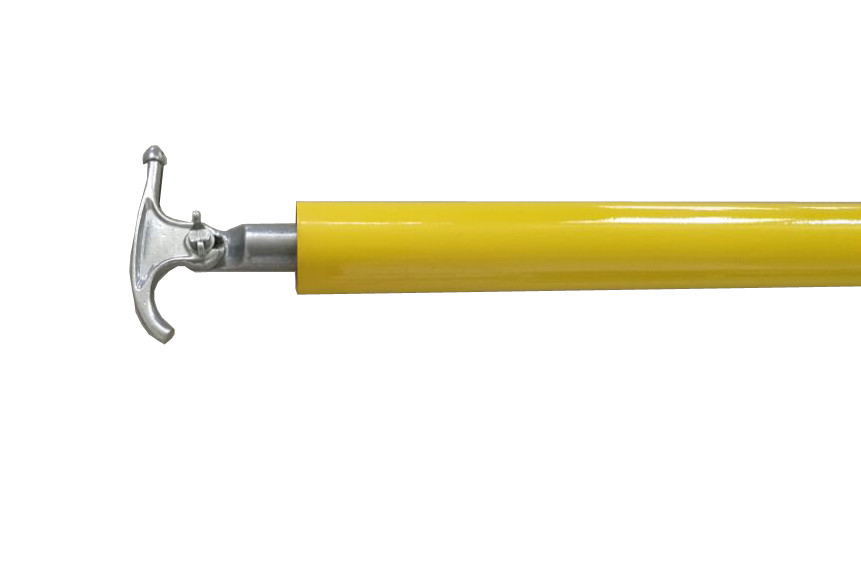

Standard Export Round Telescoping Hot Stick



The round telescoping hot sticks have maximum convenience for the lineman because they permit them to perform many routine jobs from ground level. The universal end fitting on the insulated top section accepts a wide variety of attachments, so the lineman can disconnect switches, replace cutout tubes and reclose, remove pole covers, prune trees, replace bulbs and complete many other overhead tasks.


The sticks are short,so that it can be easy carried on most trucks.The spring-loaded buttons can keep the extended tool sections securely locked in position. As each section is extended and twisted slightly, the buttons into right place to make sure the linemen well done the job.
1. Applied Standard: IEC60855, ASTM F711.

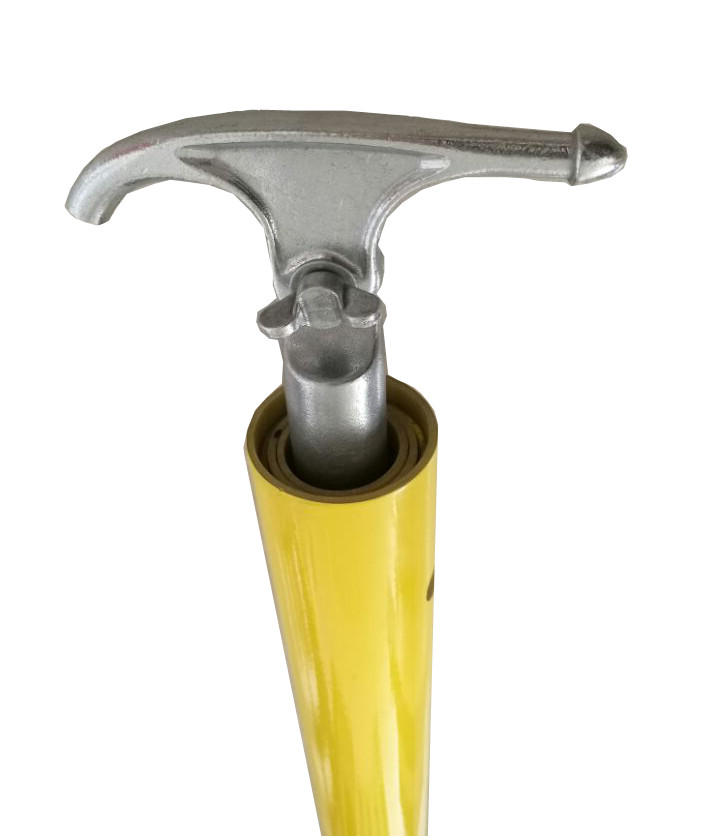

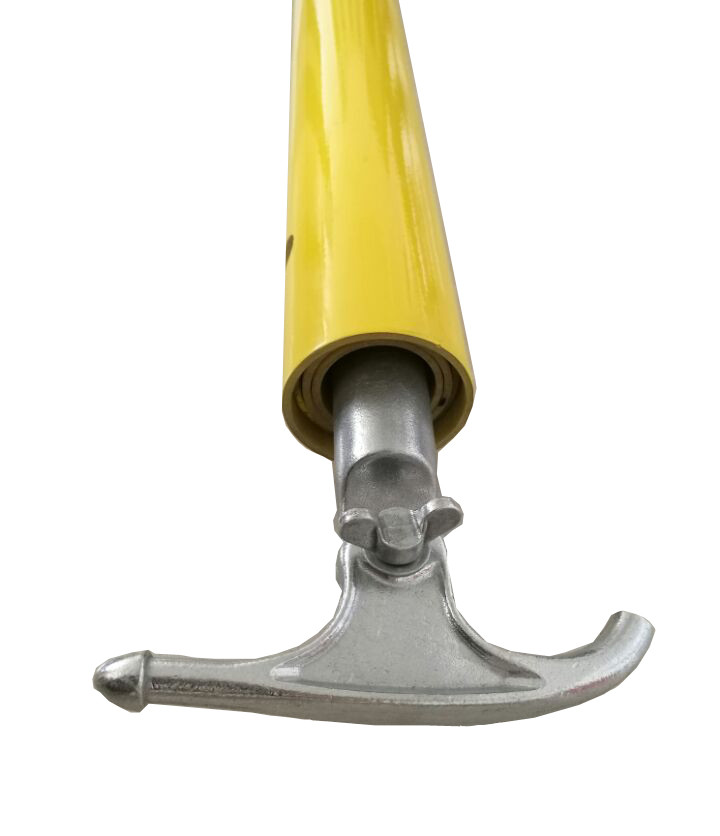

2. Parts Material:Universal head with hook: Aluminum alloy in nature color
Tube : Top section: Foam filled fiberglass tube in yellow,
Other sections: Fiberglass tube in yellow
Handle: Insulation rubber in black
Bag: Water-proof Nylon bag in green



Main Specification of Standard Export Round Telescoping Hot Stick



Products
Code
Extract Length
M
Retract Length
M
Sections Base diameter
mm
Approximate Weight
kg
211001 3.0 1.24 3 34 0.9
211002 4.0 1.57 3 34 1.2
211003 4.0 1.25 4 39 1.4
211004 5.0 1.50 4 39 1.7
211005 5.0 1.30 5 44 1.8
211006 6.0 1.75 4 39 2.0
211007 6.0 1.50 5 44 2.2
211008 7.0 1.70 5 44 2.5
211009 7.0 1.47 6 49 2.7
211010 8.0 1.64 6 49 3.1
211011 8.0 1.49 7 54 3.2
211012 9.0 1.63 7 54 3.6
211013 10.0 1.77 7 54 4.0



Standard Export Round Telescoping Hot Stick 0

FAQ:

Q: What is Live Line Tools?

A: Live Line Tools is the brand name TID POWER's TID-HVD1 product, which is a line tool designed to help increase the safety of workers during electrical maintenance. It is certified by ISO9001:2008 and has a minimum order quantity of 100 pieces. The packaging details include a plastic bag or woven belt inside the carton box and pallet. Payment terms include L/C, Western Union, D/P, D/A, T/T, and MoneyGram, among others.

Q: What are the benefits of using Live Line Tools?

A: Live Line Tools helps to protect workers while performing electrical maintenance by providing additional safety measures. It can also help to increase efficiency and reduce downtime.

Q: What safety standards does Live Line Tools meet?

A: Live Line Tools meets ISO9001:2008 certification standards.

Q: What is the minimum order quantity?

A: The minimum order quantity is 100 pieces.

Q: What are the payment terms?

A: The payment terms include L/C, T/T, and others.
