Hot Dip Galvanized Socket and Ball Insulator Fittings

  • Hot Dip Galvanized Socket and Ball Insulator Fittings
  • Hot Dip Galvanized Socket and Ball Insulator Fittings
  • Hot Dip Galvanized Socket and Ball Insulator Fittings
Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001/CCPIT
Model Number B / S
Minimum Order Quantity 100.0 Piece/Pieces
Price Negotiate
Packaging Details Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Insulator Fittings Material Steel
Process Forging/casting Galvanizing Thickness Above 86 μm For Steel
Standard IEC60120,ISO1461
High Light

Hot Dip Galvanized Socket Ball

,

Insulator Fittings Line Hardware

,

Hardware Electric Power Fitting
Product Description

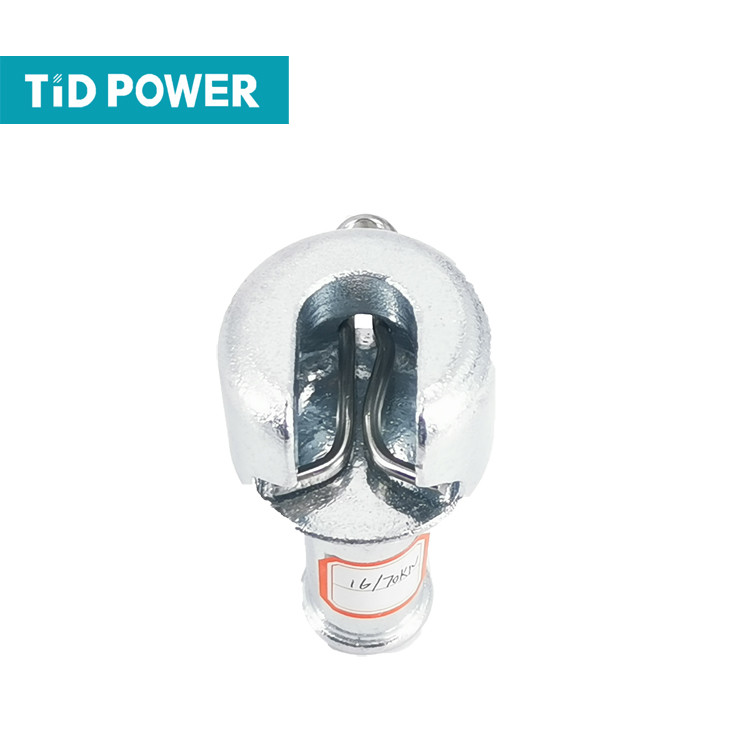

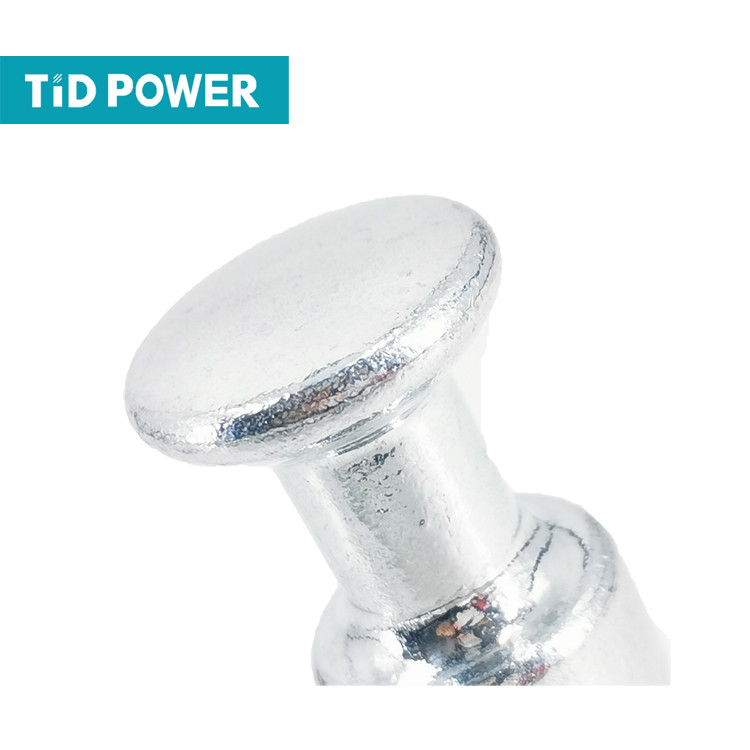

Hot Dip Galvanized Socket and Ball Insulator Fittings



1. Applied Standard:IEC60120,ISO1461.

2.Material: HDG steel.

3.Surface treatment: HDG with zinc thickness higher than 86 μm.



Ball & Socket

Hot Dip Galvanized Socket and Ball Insulator Fittings 0

No. Products Code Type Tension Load (kN)

L1

(mm)

L2

(mm)

L3

(mm)

OD

(mm)

ID

(mm)

 Mark
1 B40-13-001 B 40 94 84.9 50 23 13 11
2 S40-13-001 S 40 87 82.3 53 23 13 11R
3 B40-16-001 B 40 80 70.9 44 24 16 11
4 S40-16-001 S 40 78 70.5 44 24 16 11R
5 B70-16-001 B 70 95 81.6 48 24 16 16
6 S70-16-001 S 70 100 89.6 56 24 16 16RA
7 B70-18-001 B 70 103 89.6 60 28 18 16
8 S70-18-001 S 70 104 94.6 60 28 18 16RA
9 B90-18-001 B 90 100 86.6 58 32 18 16
10 S90-18-001 S 90 103 92.6 60 32 18 16RA
11 B100-18-001 B 100 105 91.6 60 29 18 16
12 S100-18-001 S 100 105 95 60 29 18 16RB
13 B120-18-001 B 120 122 102.4 77 29 18 16
14 S120-18-001 S 120 128 119.5 77 29 18 16RB
15 B120-20-001 B 120 120 106.6 75 32 20 16
16 S120-20-001 S 120 120 109.6 75 32 20 16A
17 B120-20-002 B 120 128 108.5 75 32 20 20
18 S120-20-002 S 120 128 119.3 75 32 20 20R
19 B160-24-001 B 160 130 110.5 80 36 24 20
20 S160-24-001 S 160 132 120.3 80 36 24 20R
21 B210-20-001 B 210 177 157.5 120 34 20 20
22 S210-20-001 S 210 177 165 120 34 20 20R
23 B300-24-001 B 300 184 164.5 122 38 24 20
24 S300-24-001 S 300 184 176.1 122 38 24 20R

Hot Dip Galvanized Socket and Ball Insulator Fittings 1
