Gray Silicone Rubber Composite Insulator for Transmission Line

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001:2008
Model Number FXBW
Minimum Order Quantity 100 Piece/Pieces
Price Negotiate
Packaging Details 1. Economic Packing desgin which will save your transportation cost. 2. Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products Type Composite Suspension Insulator Strength High Tensile Strength
Weight Light Weight Color Gray,customized
High Light

Gray Silicone Rubber Composite Insulator

,

Silicone Rubber Composite Insulator TID

,

Corrosion Resistance High Line Insulators TID

Product Description

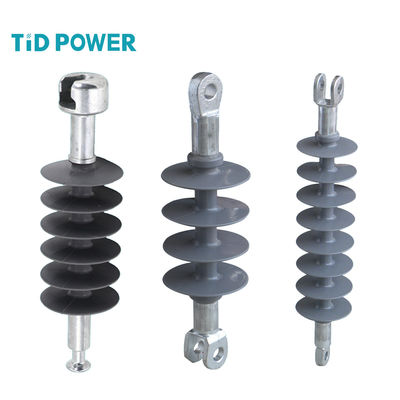

Gray Silicone Rubber Composite Insulator for Transmission Line



Product:

1.Product Description of Gray Silicone Rubber Composite Insulator for Transmission Line

Overhead Line Polymer Insulator is made of high-quality silicone rubber, which is durable and reliable. It has a high withstand voltage, and can provide good electrical insulation. It is also resistant to ultraviolet rays, so it won't fade or degrade overtime. The size of the product can be customized according to customer's needs. Moreover, it is flame retardant and has a grey color, making it the perfect choice for overhead line applications.

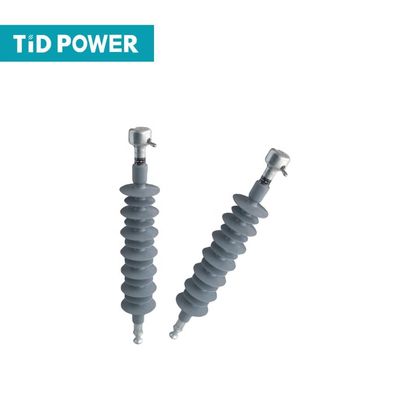

Gray Silicone Rubber Composite Insulator for Transmission Line 0

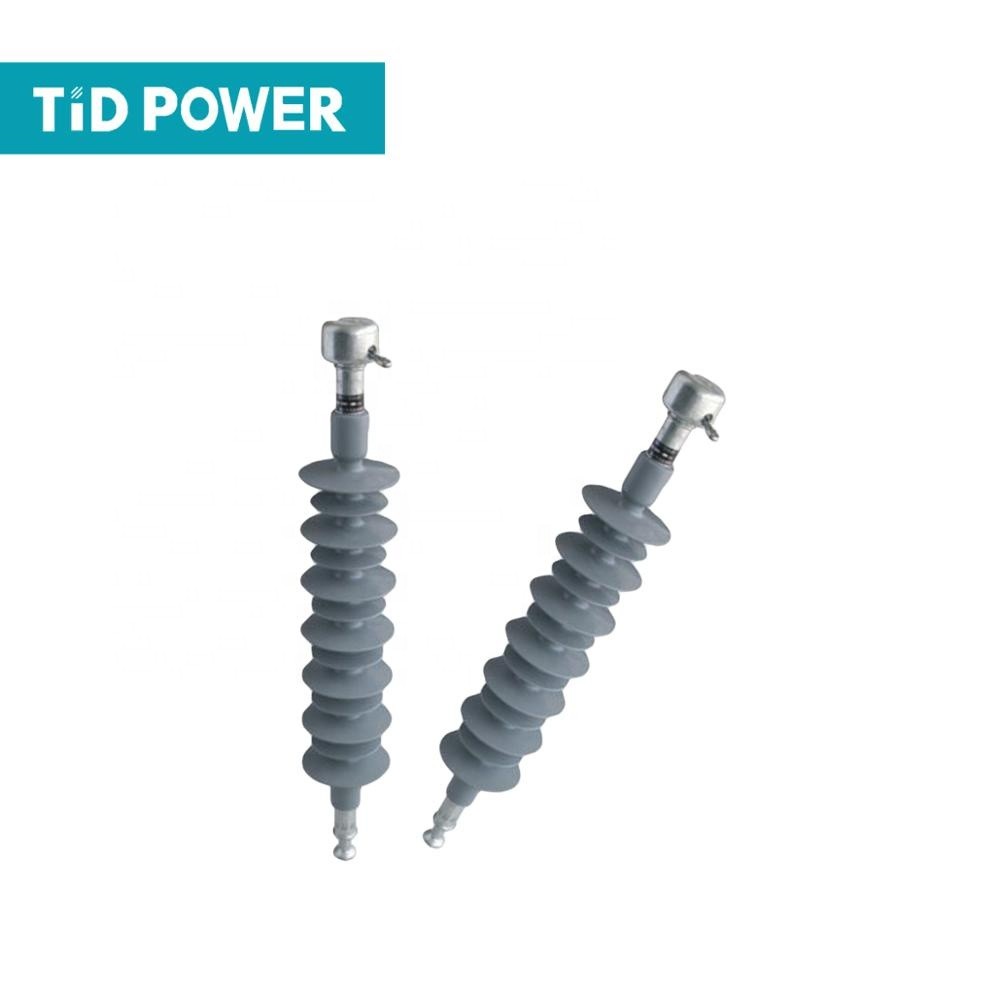

Gray Silicone Rubber Composite Insulator for Transmission Line 1

Note:

1. Applied standard:IEC61109.

2. Please select the fitting type when you order,The insulator info in the table belowbased on the type with ball & socket fittings.The section length maybe a little changed when change the fitting type, the insulator exactly drawing and detail info you need,please contact with our sales.

3. We suggest that you chose the arcing ring when the insulator above 132kV.



Type Rated Voltage (KV)

SML

(KN)

Section

Length H(mm)

Min Arcing

Distance

h(mm)

Min Nominal

Creepage Distance L(mm)

Lightning Impulse Withstand Voltage (KV) Power Frequency with stand voltage (KV)
FXBW-69/70 69 70 680±10 495 1440 390 185
FXBW-69/120 69 120 860±15 650 2100 415 235
FXBW-132/70 132 70 1360±30 1150 3600 740 320
FXBW-132/120 132 120 1400±30 1150 3600 740 320
FXBW-132/160 132 160 1430±30 1150 4800 740 440
FXBW-132/210 132 210 1470±30 1150 4800 740 440
FXBW-132/240 132 240 1470±30 1150 4800 740 440
FXBW-220/70 220 70 2280±30 2050 6820 1050 460
FXBW-220/120 220 120 2310±30 2050 6820 1050 460
FXBW-220/160 220 160 2350±30 2050 9600 1050 460
FXBW-220/210 220 210 2390±30 2050 9600 1050 460
FXBW-220/240 220 240 2390±30 2050 9600 1050 460
FXBW-400/120 400 120 3680±30 3420 12300 1480 625
FXBW-400/160 400 160 3745±30 3420 13060 1480 625
FXBW-400/210 400 210 3785±30 3420 13060 1480 625
FXBW-400/240 400 240 3785±30 3420 13060 1480 625
FXBW-500/120 500 120 4760±30 4500 16200 1900 900
FXBW-500/160 500 160 4820±30 4500 15500 1900 900
FXBW-500/210 500 210 4860±30 4500 15500 1900 900
FXBW-500/240 500 240 4860±30 4500 15500 1900 900

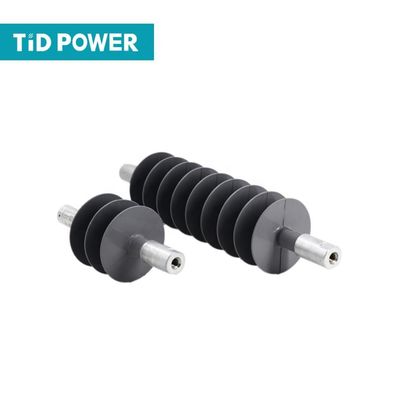

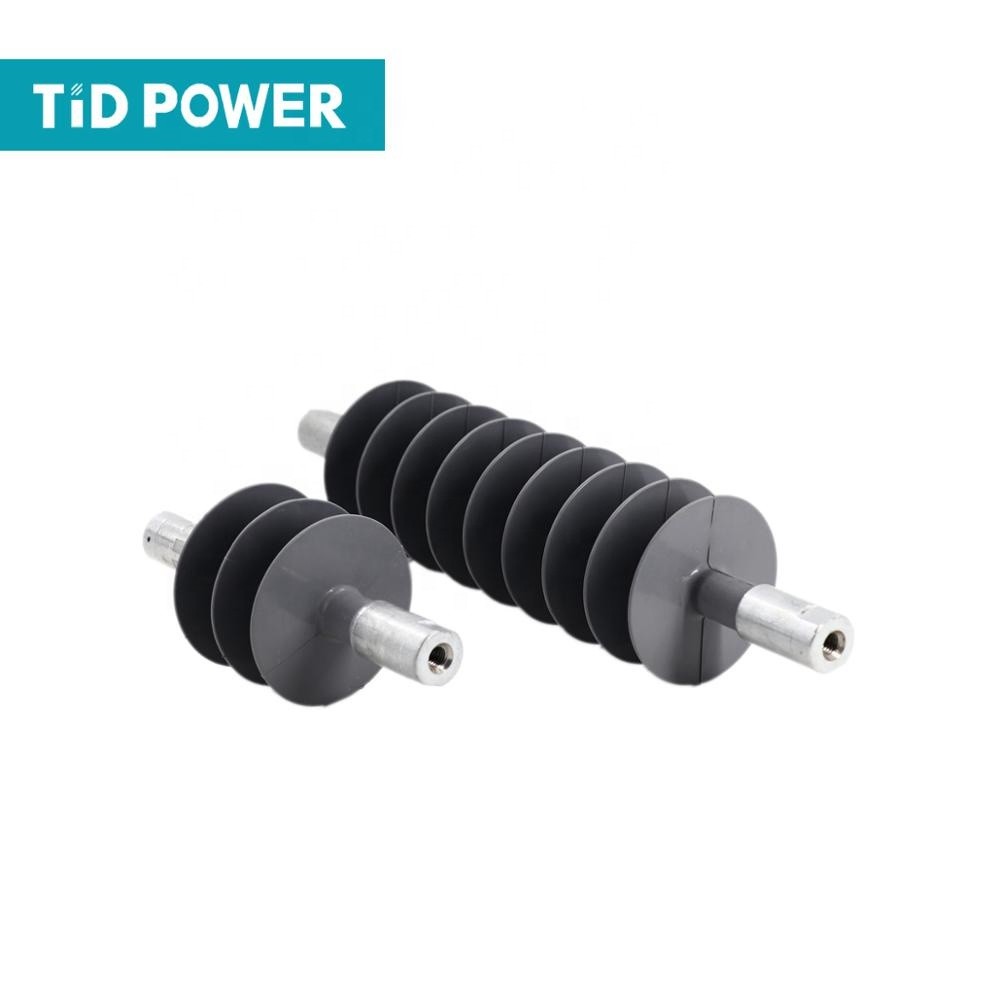

Gray Silicone Rubber Composite Insulator for Transmission Line 2



Packaging and Shipping of Overhead Line Polymer Insulator:

The Overhead Line Polymer Insulator should be packaged in a safe and secure manner so as to not be damaged during shipment. The package should be able to withstand the elements, such as rain or snow, as well as the vibration of the transport vehicle. The package should also be able to protect the insulator from any other outside forces that could potentially damage it. Once the package is sealed, it should be labeled with the correct address and contact information of the recipient.

The Overhead Line Polymer Insulator should be shipped on a reliable and secure transport vehicle, such as a truck or aircraft. The package should be placed on the transport vehicle carefully and securely, ensuring that it will not be damaged during transit. Once the package has been loaded onto the transport vehicle, it should be tracked throughout its journey to ensure it arrives safely and on time at its destination.
