Flange Base Fitting for High Voltage Polymer Insulator

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001
Model Number BF
Minimum Order Quantity 100.0 Piece/Pieces
Price Negotiate
Packaging Details Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Flange Base Brand Name TID POWER
Material Steel With H.D.G STANDARD IEC61952,ISO1461
Galvanizing Thickness Above 86 μm
High Light

Post Insulator Fittings

,

Insulator Fittings High Voltage

,

Flange Base Polymer Insulator Fitting

Product Description

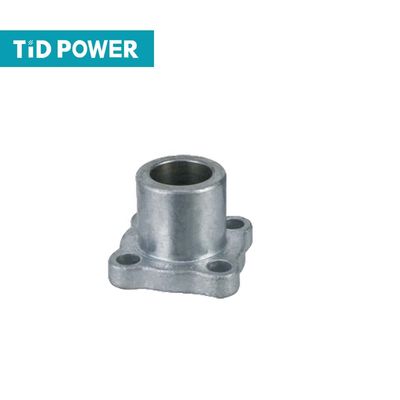

Flange Base Fitting for High Voltage Polymer Insulator



1. Product Description:

Insulator flange base is a device used to support and fix insulators, commonly found in power systems. Insulator flange bases are usually made of metal materials (such as cast iron, aluminum alloy, etc.), which have load-bearing capacity and insulation performance



2.The function of Flange Base Fitting for High Voltage Polymer Insulator
The main function of the insulator flange base is to provide a stable support platform, enabling the insulator to be safely installed on power equipment (such as transformers, cable lines, etc.) and connected to other components. It plays a role in fixing and isolating insulators in the power system, ensuring the normal and safe operation of power equipment


3. More detail informaitons for Flange Base Fitting for High Voltage Polymer Insulator
Insulator flange bases play an important role in the power system, not only providing support and fixation functions for insulators, but also ensuring the safe operation of power equipment and the reliability of the power system.



Base Fitting

Flange Base Fitting for High Voltage Polymer Insulator 0



No. Products Code Type

L1

(mm)

L2

(mm)

OD

(mm)

ID

(mm)

Base diameter

(mm)

D1

(mm)

1 BF1-50-M12-24-001 BF1 75 45 32 24 50 M12*25
2 BF1-56-M24-34-001 BF1 75 40 48 34 56 M24*25
3 BF1-60-M24-34-001 BF1 65 32 48 34 60 M20*25
4 BF1-70-M16-34-001 BF1 60 32 45 34 70 M16*20
5 BF1-75-M20-34-001 BF1 73.5 40.5 48 34 75 M16*25
6 BF1-56-M20-36-001 BF1 75 40 48 36 56 M20*25
7 BF1-76-M22-38-001 BF1 80 40 54 38 76 M22*32
8 BF1-110-M24-38-001 BF1 90 43 57 38 110 M24*25
9 BF1-76-M20-40-001 BF1 80 34 54 40 76 M20*25
10 BF1-63-M20-45-001 BF1 75 40 56 45 63 M20*25
11 BF1-90-M20-50-001 BF1 96 50 64 50 90 M20*30
12 BF2-114-M20-34-001 BF2 101.5 49 46 34 114 M20*32
13 BF2-114-M20-40-001 BF2 101.5 49 52 40 114 M20*32
14 BF2-113-M20-44-001 BF2 101.5 49 56 44 114 M20*32
15 BF2-113-M20-45-001 BF2 108 67 63 45 113 M20*23
16 BF2-113-M20-50-001 BF2 118 60 62 50 113 M20*30
17 BF2-150-M24-68-001 BF2 140 88 90 68 150 M24*32



Flange Base Fitting for High Voltage Polymer Insulator 1

No. Products Code Type

L1

(mm)

L2

(mm)

L3

(mm)

OD

(mm)

ID(mm)

Bolt

S*L4

(mm)

1 BF3-M10-25-18-001 BF3 55 30 25 29 18 M10*25
2 BF3-M18-80-36-001 BF3 129 149 39 52 36 M18*80
3 BF3-M22-175-38-001 BF3 223 48 40 50 38 M22*175
4 BF3-M18-80-45-001 BF3 135 47 155 63 45 M18*80



Flange Base Fitting for High Voltage Polymer Insulator 2

No. Products Code Type

L1

(mm)

L3(mm)

OD

(mm)

ID(mm)

Hole

Diameter

(mm)

Hole distance

(mm)

Clevis distance

(mm)

1 BF4-60-49-68-001 BF4 159 99 86 68 4-Φ24 60 49

Flange Base Fitting for High Voltage Polymer Insulator 3



Support and Services:

Railway Silicone Rubber Insulator Technical Support and Service

Our team of experts provide comprehensive technical support and services for Railway Silicone Rubber Insulators. Our technicians are highly experienced and certified in the installation, maintenance, and repair of these products.

We offer a variety of services to meet the needs of our customers, including:

  • Installation and repair of Railway Silicone Rubber Insulators
  • Inspection and testing of Railway Silicone Rubber Insulators
  • Cleaning, lubrication, and preventative maintenance services
  • Diagnosis and troubleshooting of electrical system issues
  • Replacement of defective parts and components

Our highly trained technicians are available to answer any questions you may have. We also offer a variety of resources, such as installation and maintenance manuals, to help you get the most out of your Railway Silicone Rubber Insulator.



Packing and Shipping:

The Railway Silicone Rubber Insulator is packaged and shipped as follows:

  • The insulator is first carefully inspected and tested for quality.
  • The insulator is then placed in a strong corrugated cardboard box.
  • The box is then securely sealed and labeled for easy identification.
  • The insulator is then shipped via air or ground freight.



FAQ:

Q&A for Railway Silicone Rubber Insulator

Q1: What is the Brand Name of Railway Silicone Rubber Insulator?
A1: The Brand Name of Railway Silicone Rubber Insulator is TID POWER.

Q2: What is the Model Number of Railway Silicone Rubber Insulator?
A2: The Model Number of Railway Silicone Rubber Insulator is FQBSG.

Q3: Where is Railway Silicone Rubber Insulator from?
A3: Railway Silicone Rubber Insulator is from China.

Q4: What is the Minimum Order Quantity of Railway Silicone Rubber Insulator?
A4: The Minimum Order Quantity of Railway Silicone Rubber Insulator is 100.0 Piece.

Q5: What kind of Payment Terms do you accept for Railway Silicone Rubber Insulator?
A5: We accept L/C, Western Union, D/P, D/A, T/T, MoneyGram Payment Terms for Railway Silicone Rubber Insulator.
