High Voltage Transmission Line Pin Insulator Fittings

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001/CCPIT
Model Number BF
Minimum Order Quantity 100.0 Piece/Pieces
Price Negotiate
Packaging Details Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application High Voltage Pin Insulator Fittings Processing Technical Forging/Casting
STANDARD IEC61952,ISO1461 Galvanizing Thickness Above 86 μm
OEM/ ODM Accept Purpose Post Insulators
High Light

High Voltage Insulator Fittings

,

Transmission Line Insulator Fittings

Product Description

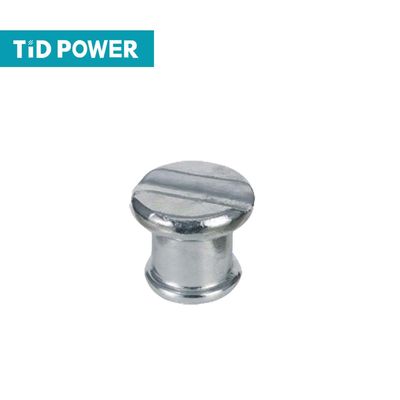

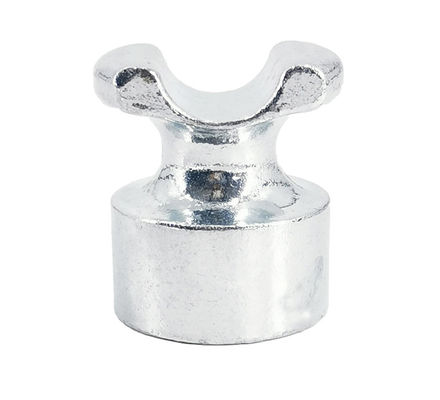

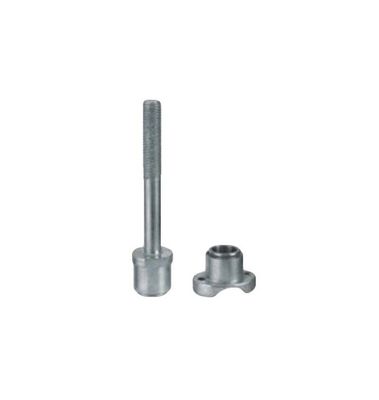

High Voltage Transmission Line Pin Insulator Fittings



1.Applied Standard:IEC61952,ISO1461

2.Material: HDG steel.

3.Surface treatment: HDG with zinc thickness higher than 86 μm.



High Voltage Transmission Line Pin Insulator Fittings 0

No. Products Code Type

L1

(mm)

L2

(mm)

OD

(mm)

ID

(mm)

Base diameter

(mm)

D1

(mm)

1 BF1-50-M12-24-001 BF1 75 45 32 24 50 M12*25
2 BF1-56-M24-34-001 BF1 75 40 48 34 56 M24*25
3 BF1-60-M24-34-001 BF1 65 32 48 34 60 M20*25
4 BF1-70-M16-34-001 BF1 60 32 45 34 70 M16*20
5 BF1-75-M20-34-001 BF1 73.5 40.5 48 34 75 M16*25
6 BF1-56-M20-36-001 BF1 75 40 48 36 56 M20*25
7 BF1-76-M22-38-001 BF1 80 40 54 38 76 M22*32
8 BF1-110-M24-38-001 BF1 90 43 57 38 110 M24*25
9 BF1-76-M20-40-001 BF1 80 34 54 40 76 M20*25
10 BF1-63-M20-45-001 BF1 75 40 56 45 63 M20*25
11 BF1-90-M20-50-001 BF1 96 50 64 50 90 M20*30
12 BF2-114-M20-34-001 BF2 101.5 49 46 34 114 M20*32
13 BF2-114-M20-40-001 BF2 101.5 49 52 40 114 M20*32
14 BF2-113-M20-44-001 BF2 101.5 49 56 44 114 M20*32
15 BF2-113-M20-45-001 BF2 108 67 63 45 113 M20*23
16 BF2-113-M20-50-001 BF2 118 60 62 50 113 M20*30
17 BF2-150-M24-68-001 BF2 140 88 90 68 150 M24*32

High Voltage Transmission Line Pin Insulator Fittings 1

No. Products Code Type

L1

(mm)

L2

(mm)

L3

(mm)

OD

(mm)

ID(mm)

Bolt

S*L4

(mm)

1 BF3-M10-25-18-001 BF3 55 30 25 29 18 M10*25
2 BF3-M18-80-36-001 BF3 129 149 39 52 36 M18*80
3 BF3-M22-175-38-001 BF3 223 48 40 50 38 M22*175
4 BF3-M18-80-45-001 BF3 135 47 155 63 45 M18*80

High Voltage Transmission Line Pin Insulator Fittings 2

No. Products Code Type

L1

(mm)

L3(mm)

OD

(mm)

ID(mm)

Hole

Diameter

(mm)

Hole distance

(mm)

Clevis distance

(mm)

1 BF4-60-49-68-001 BF4 159 99 86 68 4-Φ24 60 49



All kinds of fittings

High Voltage Transmission Line Pin Insulator Fittings 3
