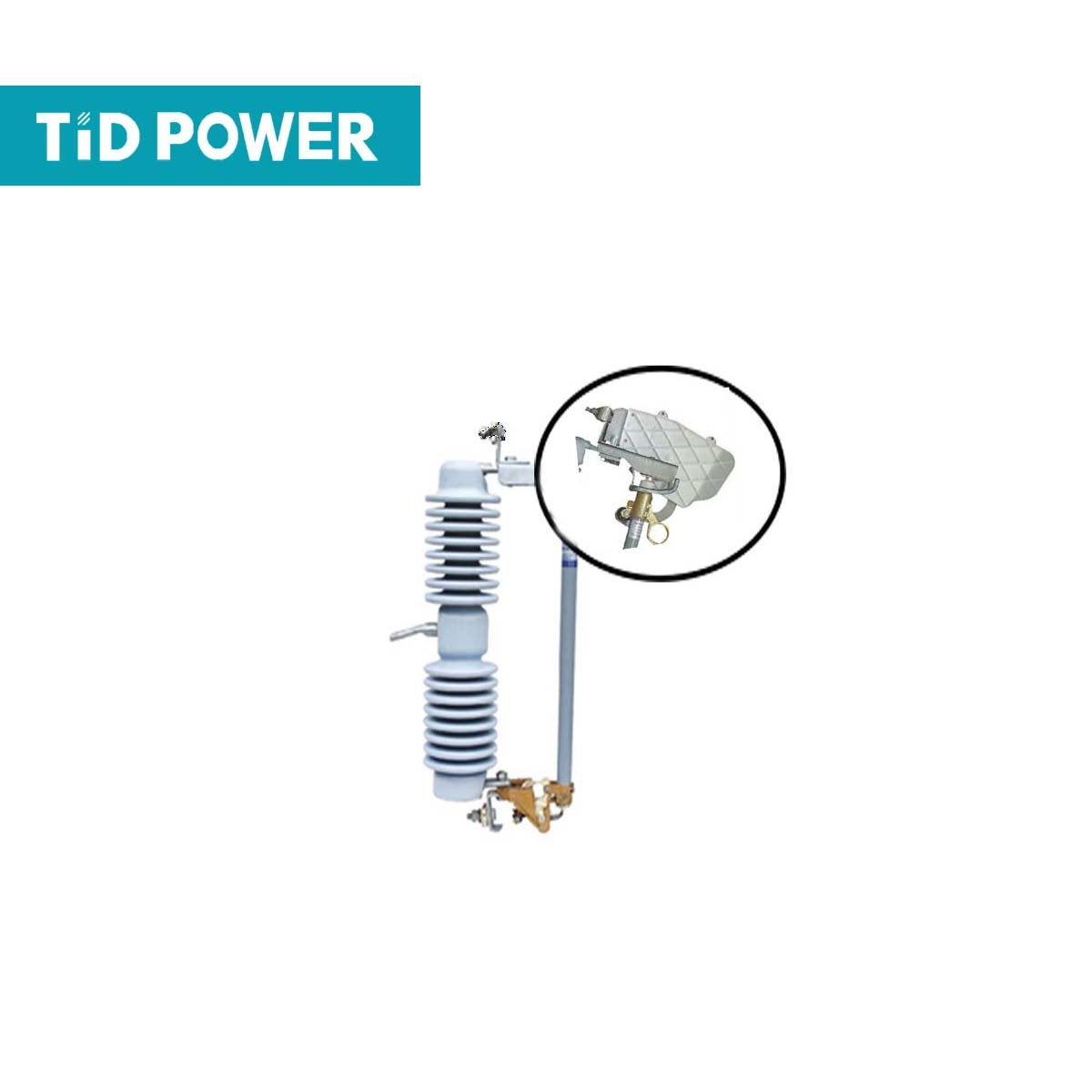

40.5kV Polymer Fuse Cut Out / Composite Drop Fuse Cutout with IEC Standard

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001/CCPIT
Model Number HRW
Minimum Order Quantity 100.0 Piece/Pieces
Price Negotiate
Packaging Details Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film
Payment Terms L/C , T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Shaan Xi, China Application Hige Voltage
Safety Standards IEC Product Name Fuse Cutout
Rated Voltage 40.5KV Rated Current 100A, 200A
Brand Name TID POWER Allowed Temperature Rise Except Fuse Tube Live Parts 60℃
High Light

40.5Kv Polymer Fuse Link Cut Out

,

Drop Fuse Cutout 40.5Kv

,

Ceramic Drop Fuse Cutout

Product Description

High Quality Fuse Cut Out 40.5 Kv Polymer / Composite Drop Out Fuse Cutout



Product:

1. The features of high quality fuse cut out 40.5 kv polymer / drop out fuse cutout

The fuse cutout is an electrical component installed in a circuit to ensure safe operation of the circuit. When a circuit malfunctions or is abnormal, the current continues to rise, and the rising current may damage some important or valuable components in the circuit, burn the circuit, or even cause a fire. If the fuse is correctly installed in the circuit, the fuse will fuse and cut off the current when the current abnormally rises to a certain height and time, thereby protecting the safe operation of the circuit. The fuse cuts off the current, thereby protecting the safe operation of the circuit.



The types of fuses generally include high-voltage fuses and low-voltage fuses. The protection objects can be divided into fuses for protecting transformers and general electrical equipment, fuses for protecting voltage transformers, fuses for protecting power capacitors, fuses for protecting semiconductor components, fuses for protecting motors, and fuses for protecting household appliances. According to the structure, it can be divided into open type, semi closed type, tube type, and jet type fuses.



2. The technical parameter of high quality fuse cut out 40.5 kv polymer / drop out fuse cutout

HRW5-40.5kV Cutout Fuse



Product Model HRW5-40.5/100 HRW5-40.5/200
Rated Voltage(kV) 40.5 40.5
Rated Cutrent(A) 100 200
Breaking Current(VA),Up limit 400 800
Breaking Current(VA),Down limit 10 30
P.F. Dry Withstand Voltage(kV) 105 105
P.F. Wet Withstand Voltage(kV) 185

185

Allowed temperature rise except fuse live parts 60              60

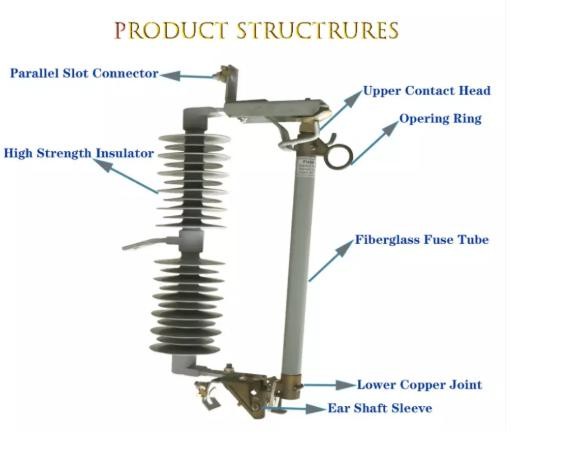

40.5kV Polymer Fuse Cut Out / Composite Drop Fuse Cutout with IEC Standard 0

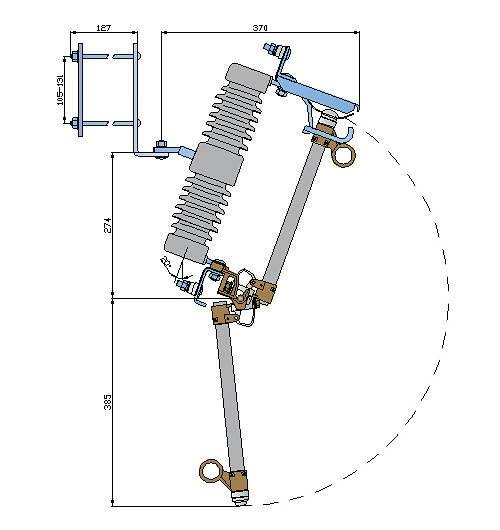

40.5kV Polymer Fuse Cut Out / Composite Drop Fuse Cutout with IEC Standard 1




3. Good Raw material

  • We use HTV silicone rubber which hydrophobicity can reach to HC1 level

  • We use hot dip Galvanizing steel fitting ,the thickness of the zinc more than 100 μm

  • We use ECR rod as the core which is high acid resistant. 7200Hr testing passed.

4. Our service:

  • Free sample available

  • 24 hours on-line service

  • Timely delivery

  • Free technical support

  • Long term after-sales service
